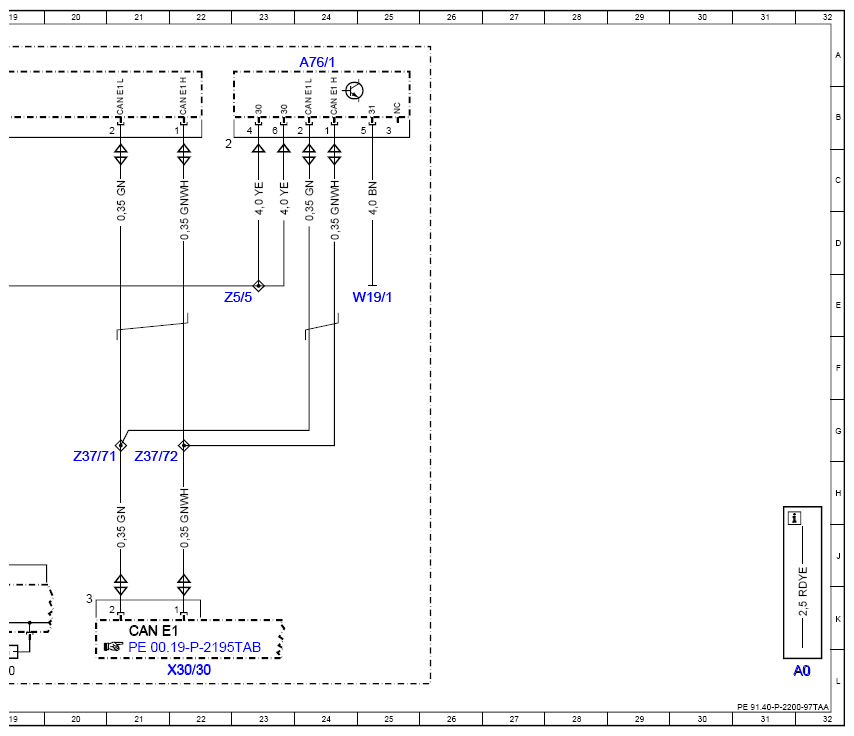

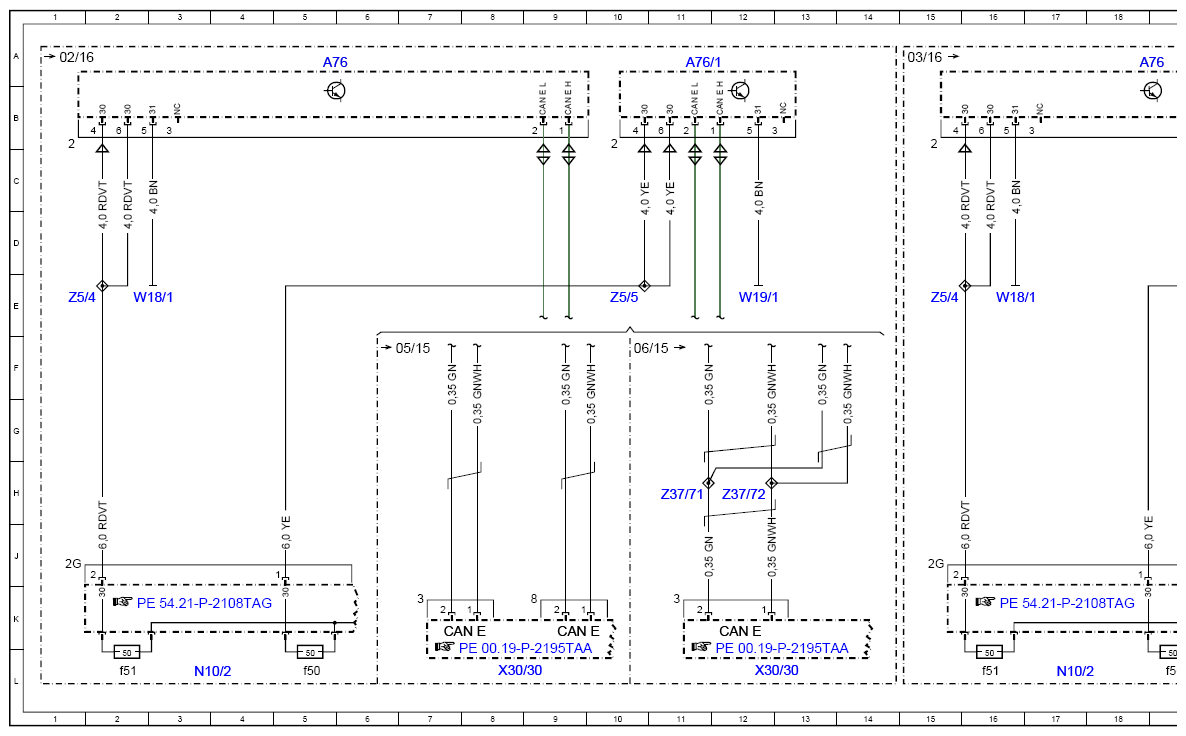

Wiring Diagram For Reversible Emergency Tensioning Retractor - PE91.40-P-2200-97TAA
Model 172.4
with code 299 (PRE-SAFE®)
Control unit A76, A76/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A76 | Left reversible emergency tensioning retractor | 5A |
| A76 | Left reversible emergency tensioning retractor | 18A |
| A76/1 | Right reversible emergency tensioning retractor | 11A |
| A76/1 | Right reversible emergency tensioning retractor | 24A |
| CAN E | Chassis CAN | 7K |
| CAN E | Chassis CAN | 12K |
| CAN E | Chassis CAN | 9K |
| CAN E1 | Chassis CAN 1 | 21K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2 | Rear SAM control unit with fuse and relay module | 17L |
| N10/2f50 | Fuse 50 | 5L |
| N10/2f50 | Fuse 50 | 19L |
| N10/2f51 | Fuse 51 | 2L |
| N10/2f51 | Fuse 51 | 16L |
| W18/1 | Center rear crossmember ground point | 2E |
| W18/1 | Center rear crossmember ground point | 16E |
| W19/1 | Right front seat crossmember ground point | 12E |
| W19/1 | Right front seat crossmember ground point | 25E |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 8L |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 12L |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | |
| Z37/71 | Reversible emergency tensioning retractor CAN engine bus (low) connector sleeve | 11H |
| Z37/71 | Reversible emergency tensioning retractor CAN engine bus (low) connector sleeve | 20G |
| Z37/72 | Reversible emergency tensioning retractor chassis CAN (high) connector sleeve | 12H |
| Z37/72 | Reversible emergency tensioning retractor chassis CAN (high) connector sleeve | 21G |
| Z5/4 | Left reversible emergency tensioning retractor circuit 30 connector sleeve | 15E |
| Z5/4 | Left reversible emergency tensioning retractor circuit 30 connector sleeve | 1E |
| Z5/5 | Right reversible emergency tensioning retractor circuit 30 connector sleeve | 10E |
| Z5/5 | Right reversible emergency tensioning retractor circuit 30 connector sleeve | 23E |
