Remove/Install Water Collector - AR83.25-P-1402V

Model 171.4, 172.4

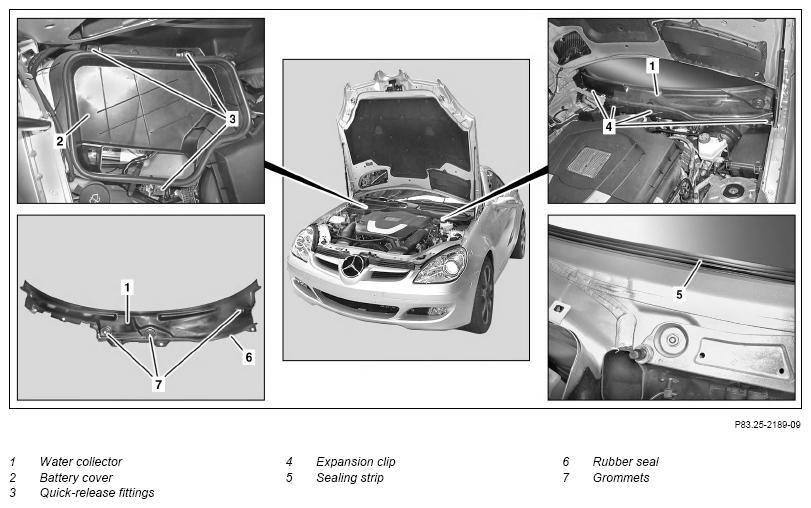

Fig 1: Water Collector Components Location - Model 172.4 (Shown On Model 171.4)

Courtesy of MERCEDES-BENZ USA

Shown on model 171.4

	Remove/install
1	Remove wiper arms		AR82.30-P-6100V
2	Open quick-release couplings (3) and remove battery cover (2)
3	Remove expansion clips (4)	Replace damaged expansion clips (4).
4	Lower engine hood to normal position		AR88.40-P-1000V
5	Raise water collector (1), release from apex seal (5) of windshield and remove	Pay attention to installation position of water collector (1) in apex seal (5) of windshield.
6	Replace rubber seal (6) and grommets (7)	when replacing water collector (1).
7	Install in the reverse order
