Drain, Evacuate And Recharge Air Conditioning, Check For Proper Operation And Check For Leaks - AR83.30-P-1760V

Model 171.4

with code 580 (Air-conditioning system)

Model 171.4

with code 581 (Automatic air conditioning)

Model 172.4

with code 580 (Air-conditioning system)

Model 172.4

with code 581 (Automatic air conditioning)

Courtesy of MERCEDES-BENZ USA

Shown on model 171.442

Courtesy of MERCEDES-BENZ USA

Shown on model 171.458

	Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0006-01A
	Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.	AS83.00-Z-0007-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-N-0005-01A
	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
	Notes on handling refrigerant R134a		AH83.30-N-0003-01A
	Notes on handling refrigerant R1234yf		AH83.30-P-0003-02A
	Remove
1	Open engine hood and raise to vertical position		AR88.40-P-1000V
2	Remove radiator mount (6)	Model 171.473 as of 3/3/08 with code 580 (Air-conditioning system) with code 809 (Model year 2009)   Model 171.473 as of 3/3/08 with code 581 (Automatic air conditioning) with code 809 (Model year 2009)
	Connect

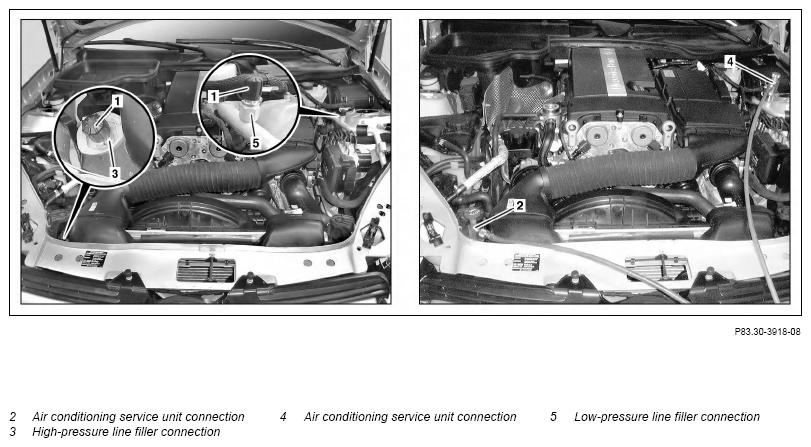

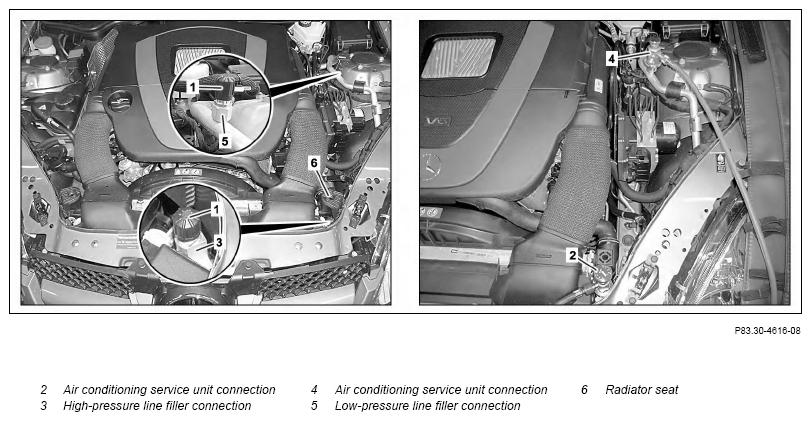

3	Connect air conditioning service unit connection (2) to high-pressure line filler connection (3)
	000 588 04 82 00 Air conditioning service unit R134a		WS83.00-P-0031B
	000 588 10 82 00 R1234yf air conditioning service unit		WS83.00-P-0034B
4	Connect air conditioning service unit connection (4) to low-pressure line filler connection (5)
	000 588 04 82 00 Air conditioning service unit R134a		WS83.00-P-0031B
	000 588 10 82 00 R1234yf air conditioning service unit		WS83.00-P-0034B
	Analyze
5	Analyze refrigerant in A/C system	Model 172.4 with code 2U8 (Alternative refrigerant) with code 580 (Air-conditioning system)   Model 172.4 with code 2U8 (Alternative refrigerant) with code 581 (Automatic air conditioning)
	000 588 10 82 00 R1234yf air conditioning service unit		WS83.00-P-0034B
		The refrigerant analysis must be performed using an analysis device integrated into the air conditioning service unit or an external analysis device with data transfer to the air conditioning service unit. A positive gas analysis is when the greenhouse gas exhibits a degree of purity of 92 %. After a negative gas analysis. ↓ The gas analysis must be performed up to three times. After a third negative gas analysis, the analysis device must be verified in accordance with the operator's manual. If the analysis device is functional and the gas analysis negative, the refrigerant must be extracted from the A/C system and then be stored in a recycling vessel. After positive gas analysis. ↓ The refrigerant must be extracted from the air conditioning system into the internal air conditioning service unit container.
	Draining
6	Suction off refrigerant
	000 588 04 82 00 Air conditioning service unit R134a		WS83.00-P-0031B
	000 588 10 82 00 R1234yf air conditioning service unit		WS83.00-P-0034B
		The quantity of refrigerant oil extracted from the refrigerant circuit must be documented. When operating the air conditioning service unit, proceed in accordance with the operator's manual from the manufacturer.
	Check
7	Check specifications for replacing the desiccant cartridge	When one of the following conditions is fulfilled: Vehicle is older than 5 years, refrigerant is dirt-laden (color ranges from dark gray to black), A/C compressor jammed, or refrigerant circuit was damaged (e.g. after an accident). ↓ Replace drier cartridge.
		Model 171.4 (except 171.473) up to 3/2/08 with code 580 (Air-conditioning system) except code 809 (Model year 2009)   Model 171.4 (except 171.473) up to 3/2/08 with code 581 (Automatic air conditioning) except code 809 (Model year 2009)	AR83.30-P-6521V
		Model 171.473 with code 580 (Air-conditioning system) Model 171.473 with code 581 (Automatic air conditioning)	AR83.30-P-6521VT
		Model 171.4 (except 171.473) as of 3/3/08 with code 580 (Air-conditioning system) except code 809 (Model year 2009)   Model 171.4 (except 171.473) with code 580 (Air-conditioning system) with code 809 (Model year 2009)   Model 171.4 (except 171.473) with code 581 (Automatic air conditioning) except code 809 (Model year 2009)   Model 171.4 (except 171.473)with code 581 (Automatic air conditioning with code 809 (Model year 2009))   Model 172.4 with code 580 (Air-conditioning system)   Model 172.4 with code 581 (Automatic air conditioning)	AR83.30-P-6521VM
	Evacuate and check
8	Clean refrigerant and evacuate refrigerant circuit
	000 588 04 82 00 Air conditioning service unit R134a		WS83.00-P-0031B
	000 588 10 82 00 R1234yf air conditioning service unit		WS83.00-P-0034B
9	Conduct vacuum test using air conditioning service unit
	000 588 04 82 00 Air conditioning service unit R134a		WS83.00-P-0031B
	000 588 10 82 00 R1234yf air conditioning service unit		WS83.00-P-0034B
	Filling
10	Add new compressor oil to the refrigerant circuit according to the quantity of refrigerant oil noted during extraction
	Compressor oils (specification 362.1)	Only the approved compressor oil may be used. If it is proven that a different compressor oil has been used, we will refuse to reimburse costs within the warranty and goodwill period. Daimler AG reserves the right to perform reexaminations. The correct oil filling quantity in the refrigerant circuit must be ensured. In the event of an incorrectly measured oil filling quantity, the refrigerant compressor may be damaged. Depending on the repair case, the oil filling quantity may need to be adjusted accordingly.	BB00.40-P-0362-01A
		Filling capacity for A/C compressor	*BF83.55-P-1001-01A
		Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured)	*BF83.55-P-1002-01A
		Additional oil filling quantity when replacing condenser	*BF83.55-P-1003-01A
		Additional oil filling quantity when replacing evaporator	*BF83.55-P-1004-01A
		Additional oil filling quantity when replacing intake line	*BF83.55-P-1006-01A
		Additional oil filling quantity when replacing pressure line	*BF83.55-P-1007-01A
		Additional oil filling quantity when replacing A/C compressor	*BF83.55-P-1008-01A
		Additional oil filling quantity with detectable leakage	*BF83.55-P-1009-01A
		Additional oil filling quantity when replacing desiccant cartridge	*BF83.55-P-1012-01A
11	Fill air conditioning system
	000 588 04 82 00 Air conditioning service unit R134a		WS83.00-P-0031B
	000 588 10 82 00 R1234yf air conditioning service unit		WS83.00-P-0034B
		Model 171 with engine 113 with code 580 (Air-conditioning system)   Model 171 with engine 113 with code 581 (Automatic air conditioning)   Model 171.### ## as of 187120 with engine 271, 272 with code 580 (Air-conditioning system) with code 809 (Model year 2009)   Model 171.### ## as of 187120 with engine 271, 272 with code 581 (Automatic air conditioning) with code 809 (Model year 2009)   Model 171.### #F up to 187119 with engine 271, 272 with code 580 (Air-conditioning system) except code 809 (Model year 2009)   Model 171.### #F up to 187119 with engine 271, 272 with code 581 (Automatic air conditioning) except code 809 (Model year 2009) Air conditioning/automatic air conditioning	*BF83.00-P-1001-01A
		Model 172.4with code 2U8 (Alternative refrigerant) with code 580 (Air-conditioning system)   Model 172.4 with code 2U8 (Alternative refrigerant) with code 581 (Automatic air conditioning)   Model 172.4 with code 581 (Automatic air conditioning) except code 2U8 (Alternative refrigerant) Air conditioning/automatic air conditioning	*BF83.00-P-1002-01A
	Pressure test
12	Perform pressure test on AC system
	000 588 04 82 00 Air conditioning service unit R134a		WS83.00-P-0031B
	000 588 10 82 00 R1234yf air conditioning service unit		WS83.00-P-0034B
	Disconnect
13	Disconnect air conditioning service unit connection (2) from high-pressure line filler connection (3)
	000 588 04 82 00 Air conditioning service unit R134a		WS83.00-P-0031B
	000 588 10 82 00 R1234yf air conditioning service unit		WS83.00-P-0034B
14	Disconnect air conditioning service unit connection (4) from low-pressure line filler connection (5)
	000 588 04 82 00 Air conditioning service unit R134a		WS83.00-P-0031B
	000 588 10 82 00 R1234yf air conditioning service unit		WS83.00-P-0034B
	Install
15	Install radiator mounting bracket (6)	Model 171.473 as of 3/3/08with code 580 (Air-conditioning system) with code 809 (Model year 2009)   Model 171.473 as of 3/3/08 with code 581 (Automatic air conditioning) with code 809 (Model year 2009)
16	Close engine hood		AR88.40-P-1000V
