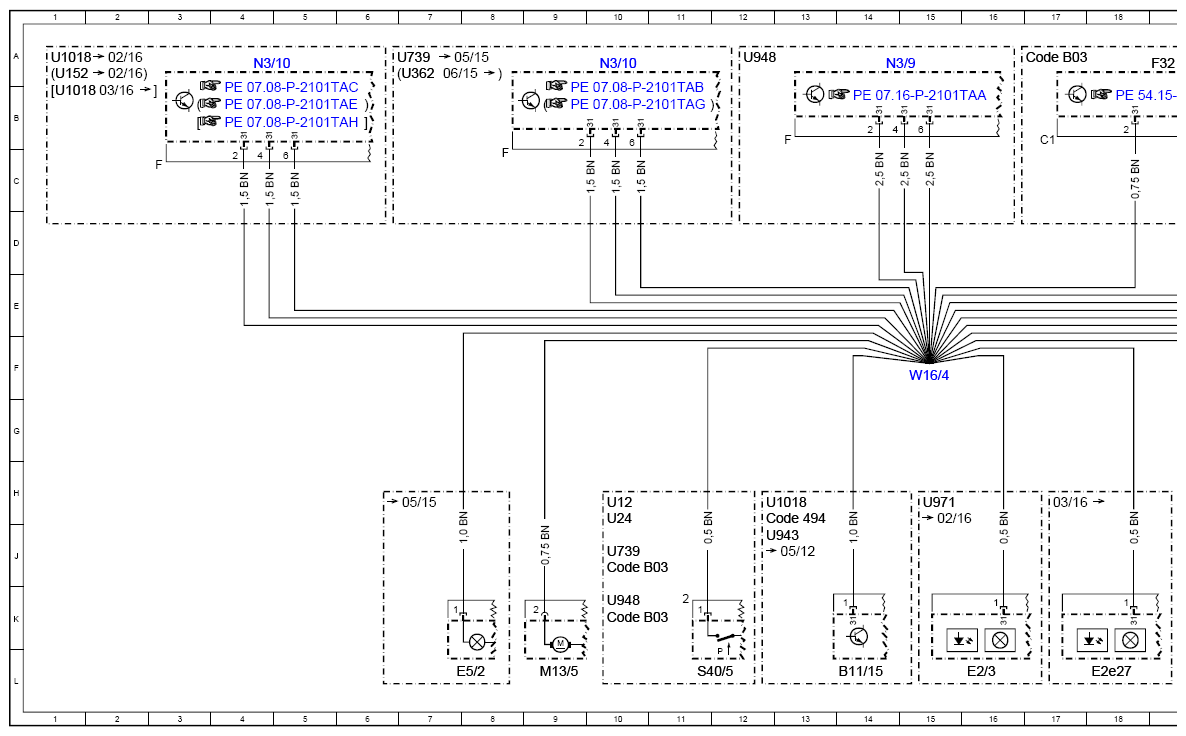

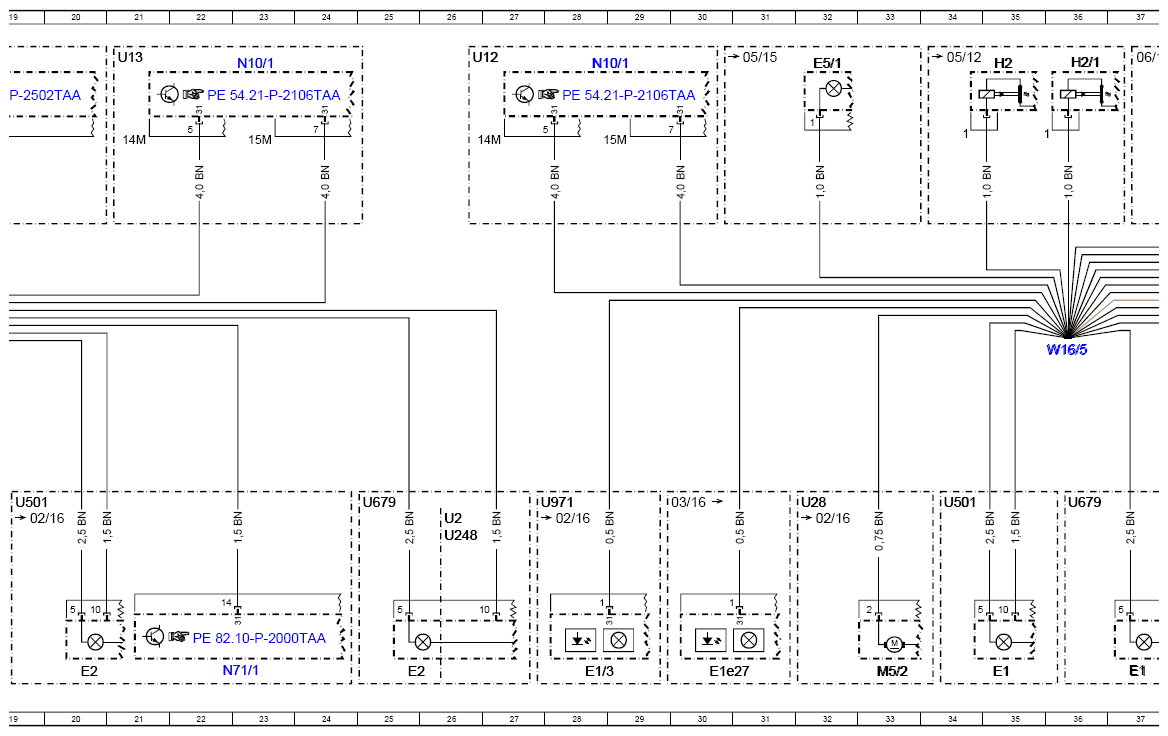

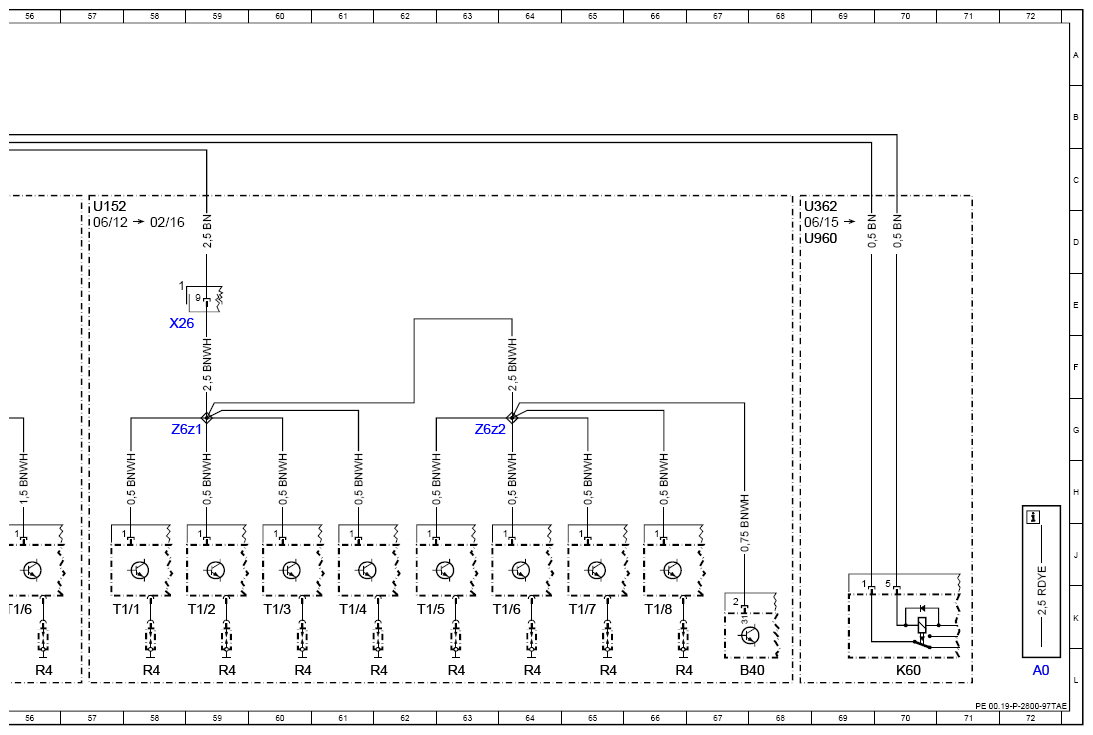

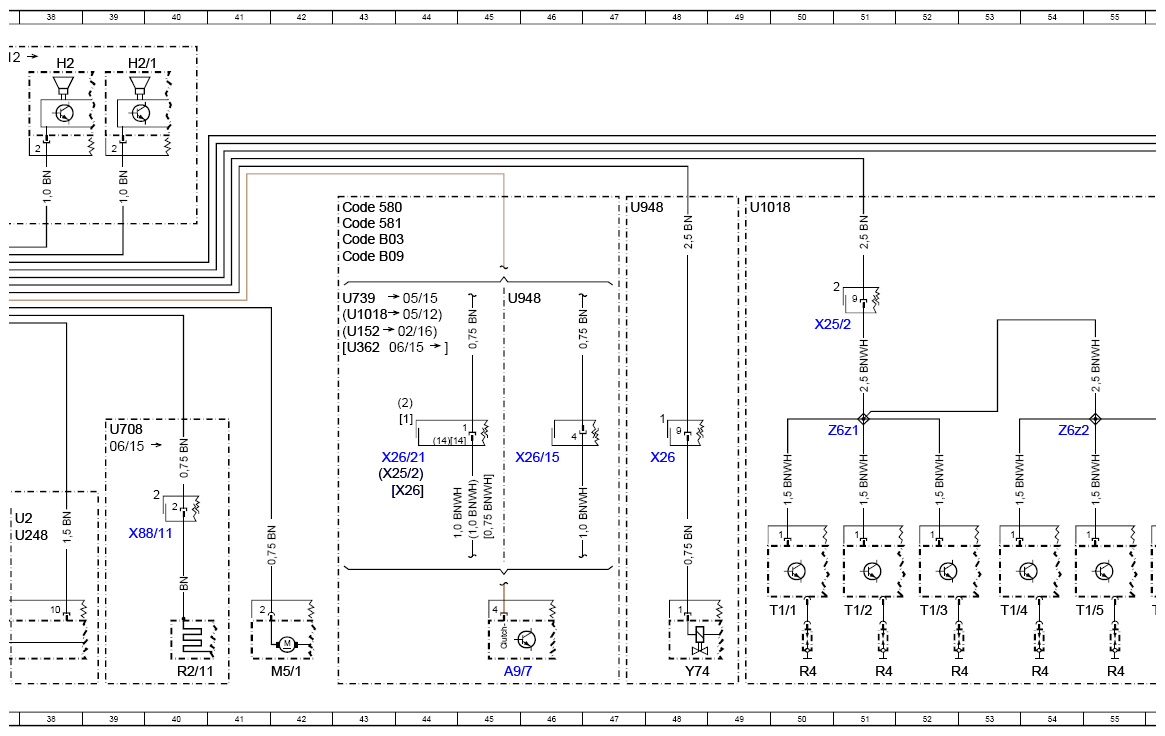

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97TAE
Model 172.4
Ground points W16/4, W16/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A9/7 | Refrigerant compressor with magnetic clutch | 45L |
| B11/15 | Radiator sensor for engine diagnosis | 14L |
| B40 | Oil sensor (oil level, temperature and quality) | 67L |
| Code 494 | USA version | 12H |
| Code 580 | Air conditioning | 43D |
| Code 581 | Automatic air conditioning | 43D |
| Code B03 | ECO start/stop function | 10K |
| Code B03 | ECO start/stop function | 10J |
| Code B03 | ECO start/stop function | 17A |
| Code B03 | ECO start/stop function | 43D |
| Code B09 | Refrigerant compressor with magnetic clutch | 43D |
| E1 | Left front lamp unit | 35L |
| E1 | Left front lamp unit | 37L |
| E1/3 | Left daytime running lamps headlamp | 28L |
| E1e27 | Left position light and daytime running light | 30L |
| E2 | Right front lamp unit | 20L |
| E2 | Right front lamp unit | 25L |
| E2/3 | Right daytime running lamps headlamp | 16L |
| E2e27 | Right position light and daytime running light | 18L |
| E5/1 | Left fog lamp | 32A |
| E5/2 | Right fog lamp | 8L |
| F32 | Front prefuse | 19A |
| H2 | Left fanfare horn | 35A |
| H2 | Left fanfare horn | 38A |
| H2/1 | Right fanfare horn | 36A |
| H2/1 | Right fanfare horn | 39A |
| K60 | Coolant circulation pump relay | 70L |
| M13/5 | Coolant circulation pump | 9L |
| M5/1 | Windshield washer system pump | 42L |
| M5/2 | Headlamp cleaning system pump | 33L |
| N10/1 | Front SAM control unit with fuse and relay module | 23A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 10A |
| N3/9 | CDI control unit | 14A |
| N71/1 | Headlamp control unit | 22L |
| R2/11 | Spray nozzle hose heater | 40L |
| R4 | Spark plugs | 54L |
| R4 | Spark plugs | 52L |
| R4 | Spark plugs | 51L |
| R4 | Spark plugs | 50L |
| R4 | Spark plugs | 58L |
| R4 | Spark plugs | 56L |
| R4 | Spark plugs | 59L |
| R4 | Spark plugs | 55L |
| R4 | Spark plugs | 65L |
| R4 | Spark plugs | 64L |
| R4 | Spark plugs | 63L |
| R4 | Spark plugs | 62L |
| R4 | Spark plugs | 60L |
| R4 | Spark plugs | 66L |
| S40/5 | Start enable clutch pedal switch | 11L |
| T1/1 | Cylinder 1 ignition coil | 50K |
| T1/1 | Cylinder 1 ignition coil | 57K |
| T1/2 | Cylinder 2 ignition coil | 51K |
| T1/2 | Cylinder 2 ignition coil | 59K |
| T1/3 | Cylinder 3 ignition coil | 52K |
| T1/3 | Cylinder 3 ignition coil | 60K |
| T1/4 | Cylinder 4 ignition coil | 53K |
| T1/4 | Cylinder 4 ignition coil | 61K |
| T1/5 | Cylinder 5 ignition coil | 54K |
| T1/5 | Cylinder 5 ignition coil | 62K |
| T1/6 | Cylinder 6 ignition coil | 56K |
| T1/6 | Cylinder 6 ignition coil | 64K |
| T1/7 | Cylinder 7 ignition coil | 65K |
| T1/8 | Cylinder 8 ignition coil | 66K |
| U1018 | Valid for gasoline engine 276 | 12H |
| U1018 | Valid for gasoline engine 276 | 1B |
| U1018 | Valid for gasoline engine 276 | 1A |
| U1018 | Valid for gasoline engine 276 | 43E |
| U1018 | Valid for gasoline engine 276 | 49D |
| U12 | Valid for left-hand drive vehicles | 10H |
| U12 | Valid for left-hand drive vehicles | 26A |
| U13 | Valid for right-hand drive vehicles | 21A |
| U152 | Valid for gasoline engine 152 | 1A |
| U152 | Valid for gasoline engine 152 | 43E |
| U152 | Valid for gasoline engine 152 | 57D |
| U2 | Valid for all except USA | 26H |
| U2 | Valid for all except USA | 37H |
| U24 | Valid for manual transmission | 10H |
| U248 | Valid for headlamp range adjustment for halogen headlamps | 26J |
| U248 | Valid for headlamp range adjustment for halogen headlamps | 37J |
| U28 | Valid for headlamp cleaning system | 32H |
| U362 | Valid for gasoline engine 274 | 7A |
| U362 | Valid for gasoline engine 274 | 43F |
| U362 | Valid for gasoline engine 274 | 68D |
| U501 | Valid for xenon headlamps | 19H |
| U501 | Valid for xenon headlamps | 34H |
| U679 | Valid for version without xenon headlamps | 25H |
| U679 | Valid for version without xenon headlamps | 36H |
| U708 | Valid for spray nozzle hose heater | 39G |
| U739 | Valid for gasoline engine 271 DE | 10J |
| U739 | Valid for gasoline engine 271 DE | 6A |
| U739 | Valid for gasoline engine 271 DE | 43E |
| U943 | Valid for South Korea | 12J |
| U948 | Valid for diesel engine 651 | 10K |
| U948 | Valid for diesel engine 651 | 12A |
| U948 | Valid for diesel engine 651 | 45E |
| U948 | Valid for diesel engine 651 | 47D |
| U960 | Valid for radiator shutters | 68D |
| U971 | Valid for daytime running lamps | 15H |
| U971 | Valid for daytime running lamps | 27H |
| W16/4 | Right major assembly compartment ground point | 15F |
| W16/5 | Left major assembly compartment electronics ground point | 36F |
| X25/2 | Engine compartment/vehicle interior electrical connector | 44H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 51E |
| X26 | Interior and engine wiring harness electrical connector | 44H |
| X26 | Interior and engine wiring harness electrical connector | 48H |
| X26 | Interior and engine wiring harness electrical connector | 58E |
| X26/15 | Oil temperature sensor/refrigerant compressor electrical connector | 46H |
| X26/21 | Refrigerant compressor electrical connector | 44H |
| X88/11 | Spray nozzle heater electrical connector | 40J |
| Y74 | Pressure regulator valve | 48L |
| Z6z1 | Circuit 31 connector sleeve | 51G |
| Z6z1 | Circuit 31 connector sleeve | 59G |
| Z6z2 | Circuit 31 connector sleeve | 54G |
| Z6z2 | Circuit 31 connector sleeve | 63G |
