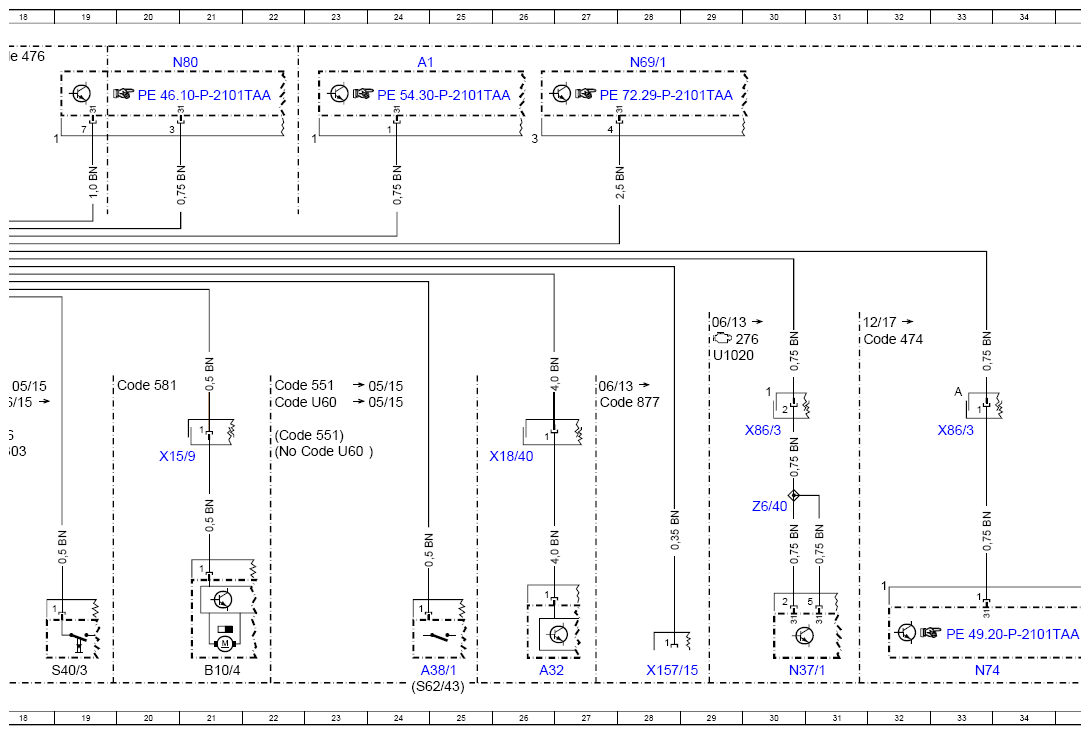

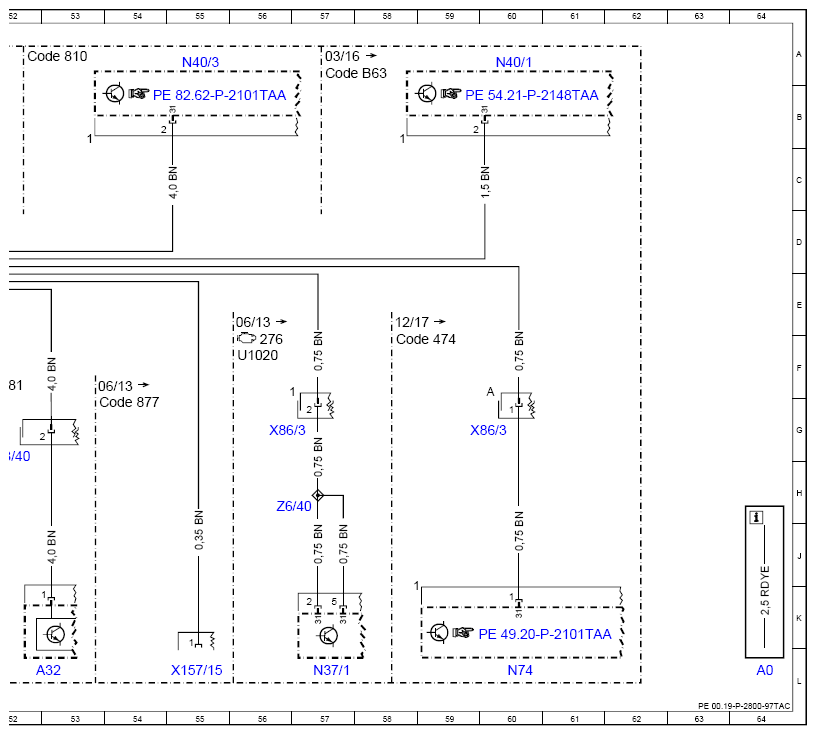

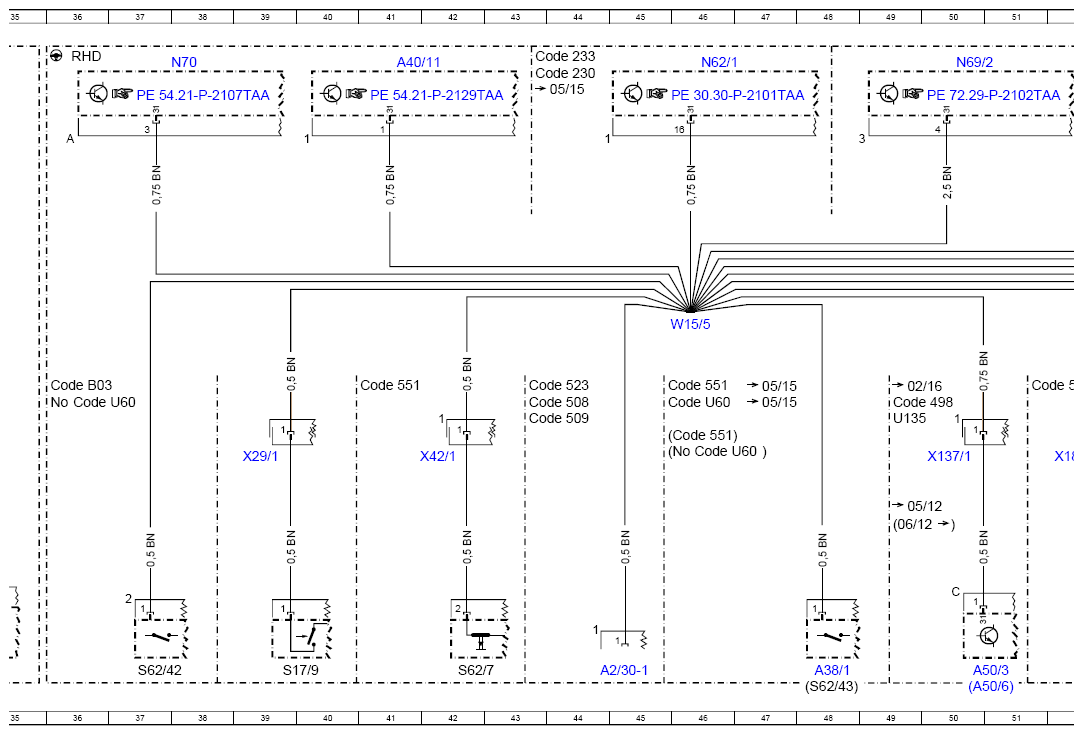

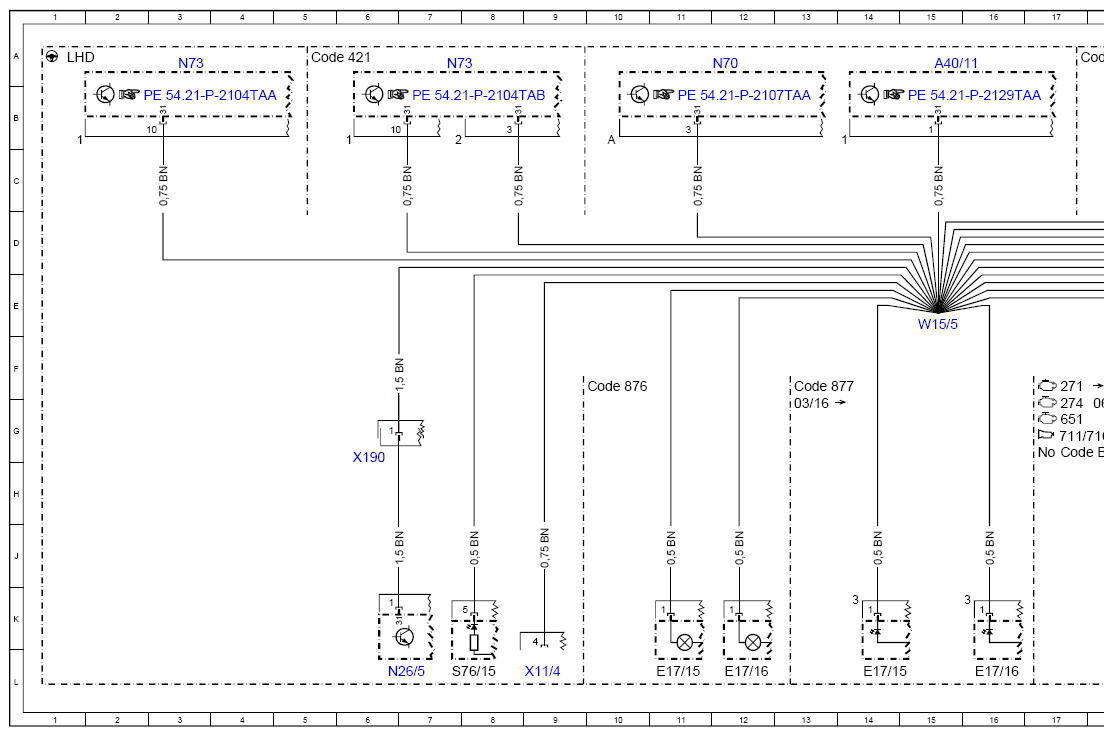

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97TAC
Model 172.4
Ground points W15/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| A1 | Instrument cluster | 24A |
| A2/30-1 | Cradle for navigation module | 45L |
| A32 | AC housing | 26L |
| A32 | AC housing | 53L |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 24L |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 48L |
| A40/11 | Multifunction camera | 15A |
| A40/11 | Multifunction camera | 41A |
| A50/3 | Electronic Toll Collection control unit | 50L |
| A50/6 | Dedicated Short-Range Communications control unit | 50L |
| B10/4 | Interior temperature sensor | 21L |
| Code 230 | Exclusive parking assist | 43A |
| Code 233 | DISTRONIC PLUS | 43A |
| Code 421 | 9G-TR0NIC | 5A |
| Code 474 | Diesel particulate filter | 31F |
| Code 474 | Diesel particulate filter | 58F |
| Code 476 | Automatic lane detection | 17A |
| Code 498 | Japan version | 49G |
| Code 508 | Navigation module preinstallation | 43G |
| Code 509 | Navigation module | 43G |
| Code 523 | Audio 20 radio | 43F |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 22G |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 22F |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 41F |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 45G |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 45F |
| Code 581 | Automatic air conditioning | 20F |
| Code 581 | Automatic air conditioning | 51F |
| Code 810 | Sound system | 52A |
| Code 876 | Interior lights package | 10F |
| Code 877 | Ambiance illumination | 13F |
| Code 877 | Ambiance illumination | 27G |
| Code 877 | Ambiance illumination | 53G |
| Code B03 | ECO start/stop function | 17G |
| Code B03 | ECO start/stop function | 36F |
| Code B63 | Vehicle sound iESS | 57A |
| Code U60 | Pedestrian protection | 22G |
| Code U60 | Pedestrian protection | 22G |
| Code U60 | Pedestrian protection | 36G |
| Code U60 | Pedestrian protection | 46G |
| Code U60 | Pedestrian protection | 45G |
| E17/15 | Right footwell lamp | 11L |
| E17/15 | Right footwell lamp | 14L |
| E17/16 | Left footwell lamp | 12L |
| E17/16 | Left footwell lamp | 16L |
| LHD | Left-hand drive vehicle | 1A |
| N26/5 | Electric steering lock control unit | 6L |
| N37/1 | Left NOx sensor control unit | 30L |
| N37/1 | Left NOx sensor control unit | 57L |
| N40/1 | Engine sound control unit | 60A |
| N40/3 | Sound system amplifier control unit | 55A |
| N62/1 | Radar sensors control unit | 46A |
| N69/1 | Left door control unit | 28A |
| N69/2 | Right door control unit | 50A |
| N70 | Overhead control panel control unit | 12A |
| N70 | Overhead control panel control unit | 38A |
| N73 | Electronic ignition switch control unit | 3A |
| N73 | Electronic ignition switch control unit | 7A |
| N74 | Soot particulate sensor control unit | 33L |
| N74 | Soot particulate sensor control unit | 60L |
| N80 | Steering column module control unit | 21A |
| RHD | Right-hand drive vehicle | 36A |
| S17/9 | Glove box lamp switch | 39L |
| S40/3 | Clutch pedal switch | 19L |
| S62/42 | Right engine hood contact switch | 37L |
| S62/43 | Left engine hood contact switch | 24L |
| S62/43 | Left engine hood contact switch | 48L |
| S62/7 | Glove compartment anti-theft alarm system switch | 42L |
| S76/15 | Electric parking brake switch | 8L |
| U1020 | Valid for gasoline engine with stratified operation | 29F |
| U1020 | Valid for gasoline engine with stratified operation | 56F |
| U135 | Valid for Electronic Toll Collection | 49G |
| W15/5 | Left front footwell ground point | 15E |
| W15/5 | Left front footwell ground point | 46E |
| X11/4 | Diagnostic connector | 9L |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 50H |
| X15/9 | Interior temperature sensor electrical connector | 20H |
| X157/15 | Left illuminated door sill molding electrical connector | 28L |
| X157/15 | Left illuminated door sill molding electrical connector | 55L |
| X18/40 | Instrument panel harness and vehicle floor electrical connector | 26H |
| X18/40 | Instrument panel harness and vehicle floor electrical connector | 52H |
| X190 | Instrument panel and electric steering lock electrical connector | 6H |
| X29/1 | Glove compartment electrical connector | 39H |
| X42/1 | Anti-theft alarm system/glove compartment switch electrical connector | 42H |
| X86/3 | Left nitrogen oxides control unit electrical connector | 33G |
| X86/3 | Left nitrogen oxides control unit electrical connector | 30G |
| X86/3 | Left nitrogen oxides control unit electrical connector | 56G |
| X86/3 | Left nitrogen oxides control unit electrical connector | 60G |
| Z6/40 | NOx sensor connector sleeve | 30H |
| Z6/40 | NOx sensor connector sleeve | 57H |
