Remove Female Contact From Miniature Double Flat Spring Contact Coupling - AR00.19-P-0120-29A

Model All

Secondary release on version with locking grille (1)

1. Insert a suitable tool on side between locking grille (1) and housing.
2. Slide locking grille (1) in direction of arrow.

   Shown on a 9-pin MDK, DFK coupling

   Courtesy of MERCEDES-BENZ USA

Secondary unlocking for version with slide (1)

1. Insert a suitable tool on side between slide (1) and housing.
2. Move slide (1) in direction of arrow.

Shown on a 5-pin MDK, DFK coupling

Courtesy of MERCEDES-BENZ USA

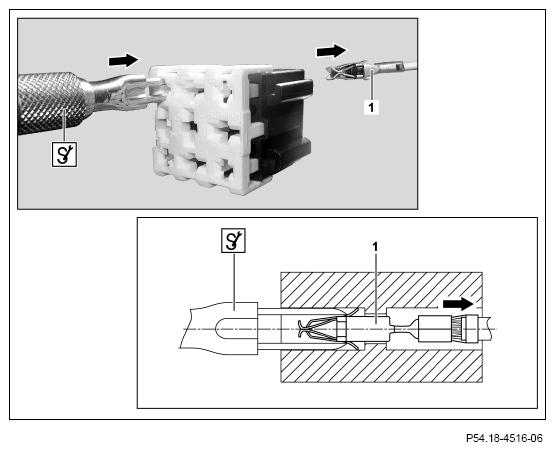

Unpin female contacts from coupling (MDK)

1. Insert blade holder with clamping pliers and LSK 8 blade from front end through the openings in coupling contact cavity.

   This pushes together the springs at the female contact (1).

2. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.

   Shown on a 9-pin MDK, DFK coupling

   Courtesy of MERCEDES-BENZ USA
