Remove Contacts From Siemens ELO Connector - AR00.19-P-0120-24A

Model All

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying MQS Blade (220 589 01 99 60)

Courtesy of MERCEDES-BENZ USA

Secondary release on version with "Siemens ELO" securing clip (shown on 10-pin "Siemens ELO" connector)

1. Using a suitable tool, pry up the side tabs of the retaining clamp (1).
2. Move the tabs.
3. Remove securing clip (1).

   Courtesy of MERCEDES-BENZ USA

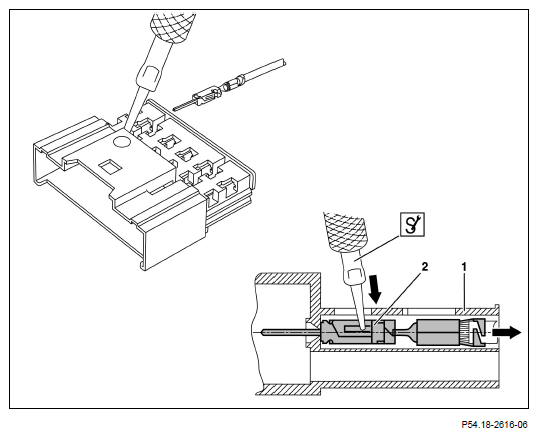

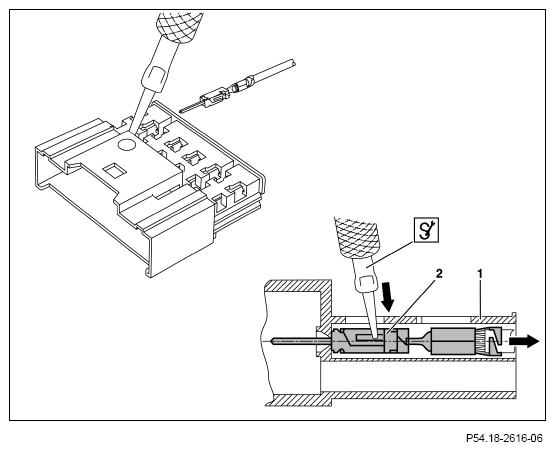

   Unpin contact pins from "Siemens ELO" connector (shown on 10-pin "Siemens ELO" connector)

4. Attach blade holder with clamping pliers and MQS blade at side of spring shackle of contact pin (2).
5. Press down the spring shackle of the contact pin (2) and push the contact pin (2) out of the contact cavity of the connector housing (1). Tug the corresponding cable at the same time to assist the unpinning procedure.
