Remove Contacts From Mini Laminated Contact Plug - AR00.19-P-0120-27A

Model All

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying MQS Blade (220 589 01 99 60)

Courtesy of MERCEDES-BENZ USA

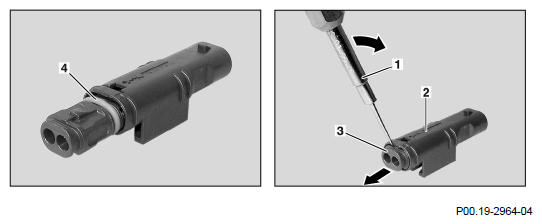

Unfasten secondary release on version with retainer housing

1. Using a suitable tool (1), pry the clutch housing (3) from the main housing (2) in direction shown by arrow.

   During assembly, make sure that the gasket (4) is not damaged.

   Otherwise, water entering the connector may lead to contact problems.

   Courtesy of MERCEDES-BENZ USA

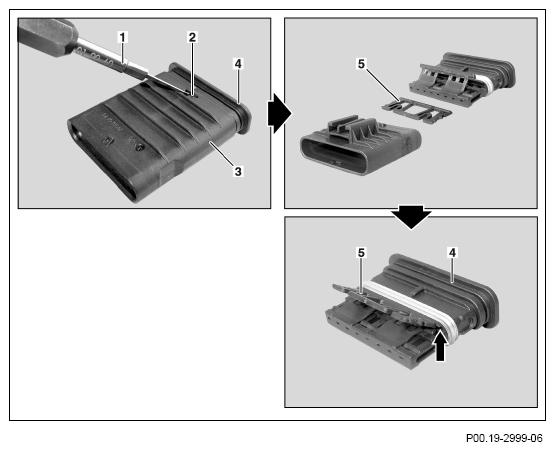

   Unfasten secondary release on version with cap

2. Using a suitable tool (1), pry up lock tab (2) for cap (3).
3. Slowly pull the plug housing (4) from the cap (3) in direction shown by arrow.

   The retaining clamp (5) is under tension due to the lock tab.

4. Before installing the cap (3), center the retaining clamp (5) in the groove and hold it down.

   Courtesy of MERCEDES-BENZ USA

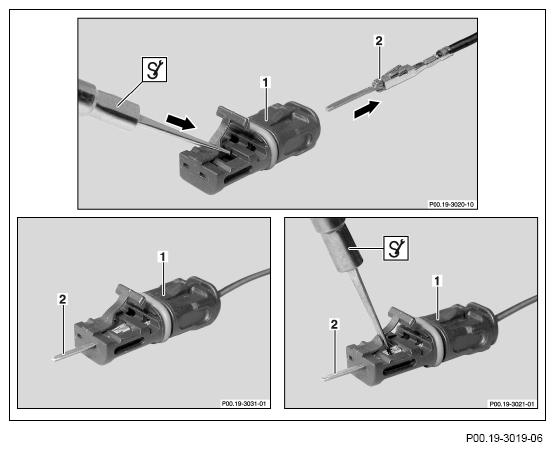

   Unpin contact pins from the connector

5. Attach blade holder with clamping pliers and MQS blade from above through opening in exposed connector housing (1) at spring shackle of contact pin (2).
6. Press the spring shackle on the contact pin (2) down and slide the contact pin (2) out of the contact cavity of the connector housing (1). Tug the corresponding cable at the same time to assist the removal procedure.

   Courtesy of MERCEDES-BENZ USA
