Remove Contacts From Micro Contact Connector - AR00.19-P-0100-13A

Model all (4xWD, CAR, Light transporter, smart)

Fig 1: Identifying NanoMQS Release Tool (220 589 04 99 37)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying NanoMQS Release Tool (220 589 04 99 38)

Courtesy of MERCEDES-BENZ USA

Pigtails can be used as repair materials when replacing damaged NanoMQS contacts. Crimping is not permitted for NanoMQS contacts.

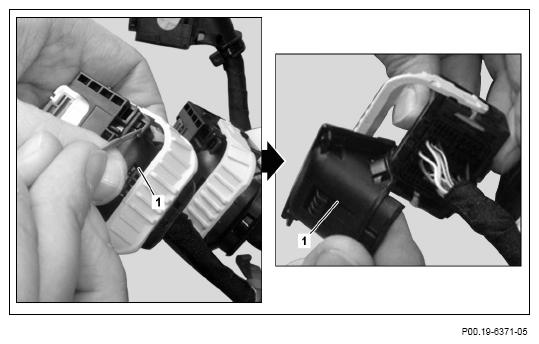

1. Loosen locks on cap (1) using a suitable tool and remove cap (1).

   Courtesy of MERCEDES-BENZ USA

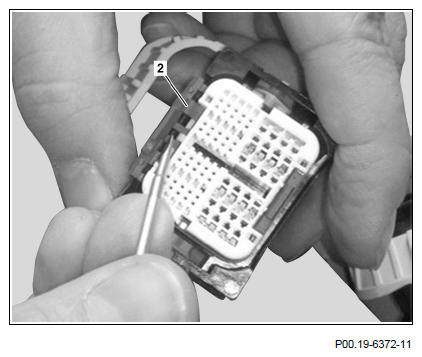

2. Loosen secondary lock (2) using suitable tool.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

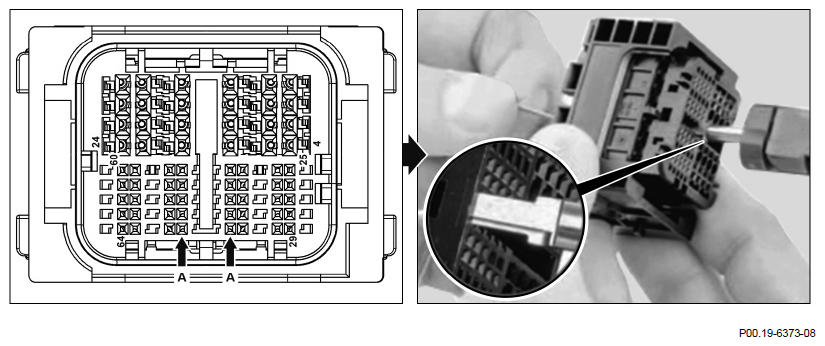

3. Release contact with NanoMQS release tool and carefully remove from the contact housing at the corresponding electrical line.

   When spinning out contacts 40...49 (arrow A).

   Courtesy of MERCEDES-BENZ USA

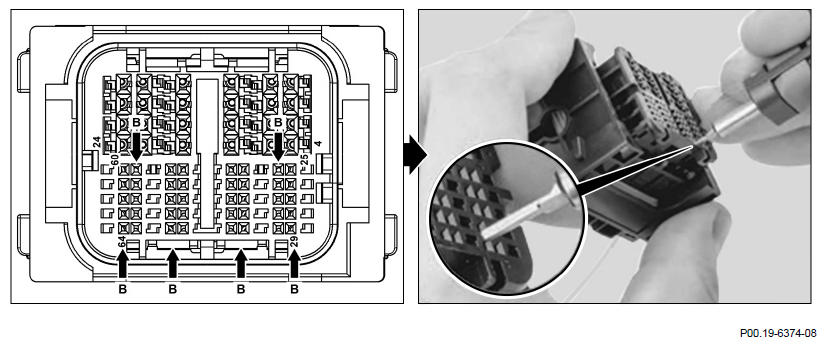

4. Release contact with NanoMQS release tool and carefully remove from the contact housing at the corresponding electrical line.

   When spinning out contacts 25...39 or 50...64 (arrow B).
