Remove Contacts From Junior Power Timer Coupling - AR00.19-P-0120-07A

Model All

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying JPT/SPT Blade (220 589 01 99 61)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying MCP 2.8/Fl Blade. 2.8/JPT/SPT (000 589 13 99 30)

Courtesy of MERCEDES-BENZ USA

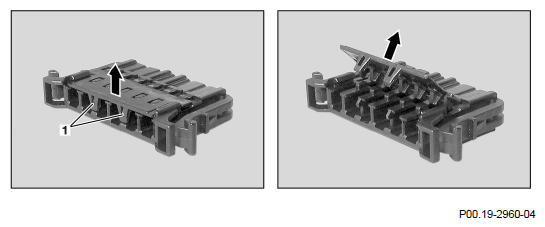

Unfasten secondary release on version with tab

1. Using a suitable tool, at the line side unlock the lugs (1) on lock tab.
2. Open the tab.

   Courtesy of MERCEDES-BENZ USA

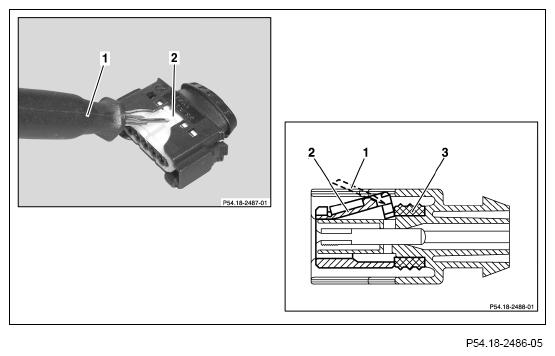

   Unfasten secondary release on version with securing clip

3. Lift side tabs of retainer (2) using a suitable tool (1).
4. Pull retainer in direction of arrow.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with cap

5. Lift locking catch (2) of cap (4) using a suitable tool (1).
6. Pull coupling housing (3) out of cap in direction of arrow.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with locking striker

7. Lever off locking striker (2) using a suitable tool (1).

   The seal (3) may be damaged if the tool (1) is inserted too far. Prying up the locking striker (2) beyond the stop may destroy the locking striker (2).

   The locking striker (2) remains unlocked when the female contacts are unpinned.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with sliding plate (shown on Junior Power Timer coupling, micro quadlock system coupling)

8. Using a suitable tool, move both sliding plates (1) in housing in direction of arrow over catch mechanism.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with contact retainer

9. Using a suitable tool, move contact retainer (1) in direction of arrow out of locked position.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with spring (shown on Standard Power Timer, Junior Power Timer coupling)

10. Insert a suitable tool between spring (1) and housing and press out spring (1).

    Courtesy of MERCEDES-BENZ USA

    Unfasten secondary release on version with slide (shown on laminated sensor contact, Junior Power Timer coupling)

11. Push (1) slider out of locked position in direction of arrow.

    Courtesy of MERCEDES-BENZ USA

    Unfasten secondary release on version with lock tab

12. Insert a suitable tool from the side under the lock tab on coupling (5).
13. Open the lock tab in direction of arrow.

    Courtesy of MERCEDES-BENZ USA

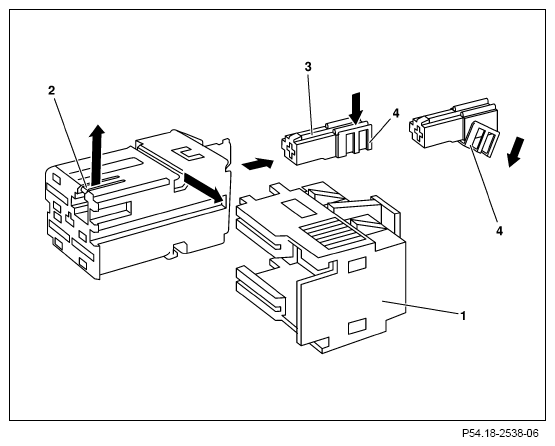

    Unfasten secondary release on version with securing clip in internal coupling (shown on Junior Power Timer, Maxi Power Timer coupling)

14. Press locking catches of retaining cap (1) using a suitable tool and remove retaining cap.
15. Lift spring at coupling housing (2) using a suitable tool and push out internal JPT coupling (3).
16. Press tabs of retainer (4) out of detent.
17. Open retainer (4).

    Courtesy of MERCEDES-BENZ USA

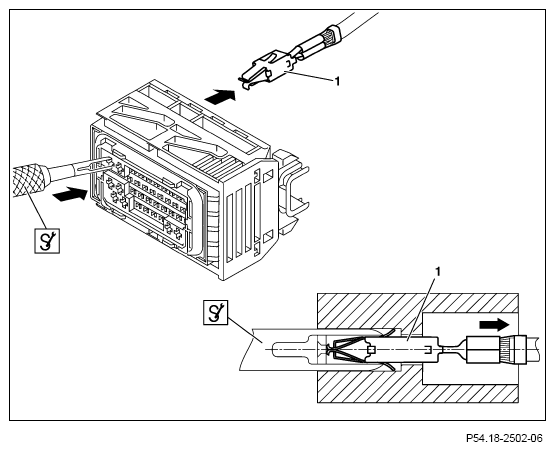

    Unpin female contacts from coupling

18. Insert blade holder with clamping pliers with JPT/SPT blade or MCP 2.8/Fl. 2.8/JPT/SPT blade from the front through the openings in contact cavity of coupling.

    This presses together the springs of the female contact (1).

19. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.
