Remove Contacts From Junior Power Timer Connector - AR00.19-P-0120-08A

Model All

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying JPT/SPT Blade (220 589 01 99 61)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying MCP 2.8/Fl Blade. 2.8/JPT/SPT (000 589 13 99 30)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with locking bar

1. Using a suitable tool, move locking bar (1) in direction of arrow out of locked position.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with retaining cap (shown on Junior Power Timer, micro quadlock system (MQS) connector)

2. Using a suitable tool, pry up the lock tab on the retaining cap (6).
3. Move retaining cap (6) in direction of arrow up to the stop.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with lock tab

4. Insert suitable tool underneath locking tabs (1).
5. Pry up the lock tabs (1) in direction shown by arrow.

   Courtesy of MERCEDES-BENZ USA

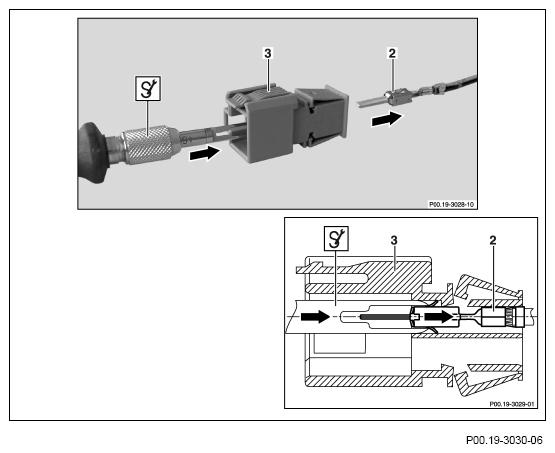

   Unpin contact pins from the connector

6. Insert blade holder with clamping pliers with JPT/SPT blade or MCP 2.8/Fl blade. 2.8/JPT/SPT blade from the front through the openings in contact cavity of connector housing (3).

   This results in the spring shackles of the contact pin (2) being compressed.

7. Remove contact pin (2) from connector housing (3) by gently pulling the relevant cable.

   Courtesy of MERCEDES-BENZ USA
