Remove Contacts From Fin Sensor Contact Coupling - AR00.19-P-0120-12A

Model All

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying LSK 8 Blade (220 589 01 99 56)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with spring (shown on laminated sensor contact, Junior Power Timer coupling)

1. Insert a suitable tool between the spring and the housing.
2. Press out the spring.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with slide (shown on laminated sensor contact, Junior Power Timer coupling)

3. Push (1) slider out of locked position in direction of arrow.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with pin

4. Using a suitable tool, push pin out of last detent in direction shown by arrow.

   Courtesy of MERCEDES-BENZ USA

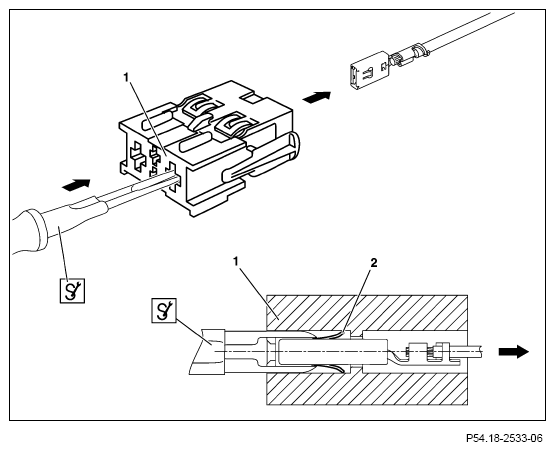

   Unpin female contacts from coupling

5. Insert blade holder with clamping pliers and LSK 8 blade from front side though openings at contact cavity of coupling (1).

   This step compresses the spring shackles (2) on the female contact.

6. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.

   Courtesy of MERCEDES-BENZ USA
