Remove Contacts From E 95 Coupling - AR00.19-P-0120-05A

Model All

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying E 95 Blade (220 589 01 99 55)

Courtesy of MERCEDES-BENZ USA

Unfasten secondary release on version with "E 95 coupling" tab

1. Using a suitable tool, push tab in direction of arrow out of locked position.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with "E 95 coupling" slide

2. Using a suitable tool, move slide in direction of arrow into pre-locking position (1).

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with "E 95 coupling" securing clip

3. Push retainer (1) in direction of arrow out of locked position using a suitable tool.

   The seal may be damaged if the tool is inserted too.

   Courtesy of MERCEDES-BENZ USA

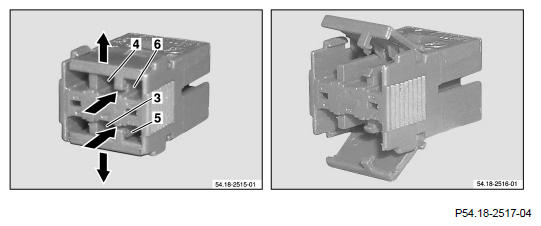

   Unfasten secondary release on version with "E 95 coupling" contact retainer

4. Press on tabs of contact retainer between the contact cavities (3, 5 or 4, 6) with suitable tool.
5. Open contact retainer.

   Courtesy of MERCEDES-BENZ USA

   Unpin female contacts from "E 95 coupling"

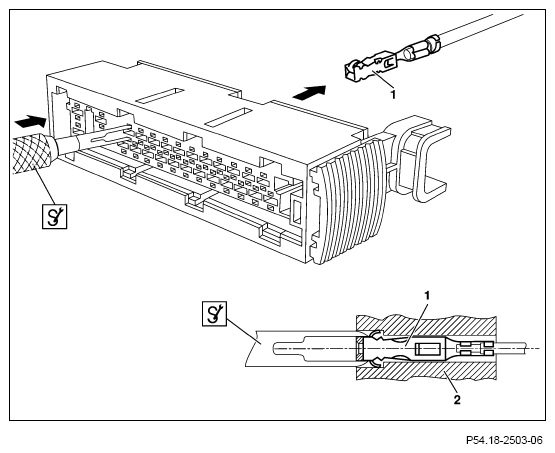

6. Insert blade holder with clamping pliers and E 95 blade from front side though openings at contact cavity of coupling (2).

   Insert tool carefully to prevent damaging webs between contact cavity and openings for release tool.

   This pushes together the springs at the female contact (1).

   Courtesy of MERCEDES-BENZ USA

7. A slight tug on the corresponding cable will remove the female contact (1) from the coupling (2).
