Remove Contacts From 2.5 Plug Round Plug Contact - AR00.19-P-0120-16A

Model All

Round Plug Contact 2.5 Variant 1

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Unlocking Device With RK 2.5 Ejector (220 589 01 99 30)

Courtesy of MERCEDES-BENZ USA

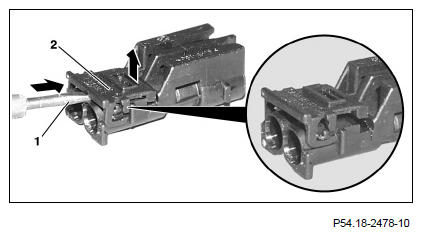

Unfasten secondary release on version with slide

1. Using a suitable tool (1), push the slide valve (2) out of the last detent in direction shown by arrow.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with contact retainer

2. Using a suitable tool (1), open the contact retainer (2).

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with secondary retainer

3. Using a suitable tool, slide the secondary retainer (1) to the pre-locking position.

   Courtesy of MERCEDES-BENZ USA

   Unfasten secondary release on version with lock tab

4. Using a suitable tool, slide the lock tab to the pre-locking position.

   Courtesy of MERCEDES-BENZ USA

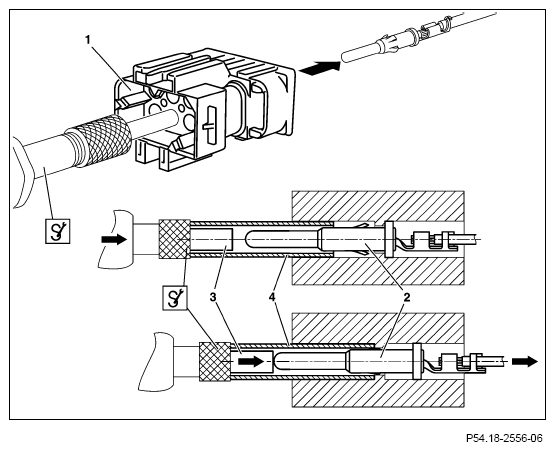

   Unpin contact pins from the connector

5. Insert release tool with RK 2.5 ejector from front side into contact cavity of connector (1).

   In this step, the sleeve (4) of the release tool compresses the spring shackles on the contact-pin (2).

6. Press contact pin (2) from its seat in housing using plunger (3) on release tool with RK 2.5 ejector against spring force of tool.

   Courtesy of MERCEDES-BENZ USA

7. Gently pull the respective line to remove the contact pin (2) from the connector (1).
