Location And Assignment Of Z Connector Sleeves (Wiring And Plug Connectors In Wiring Harness) - GF00.19-P-3000TAA
Model 172.4

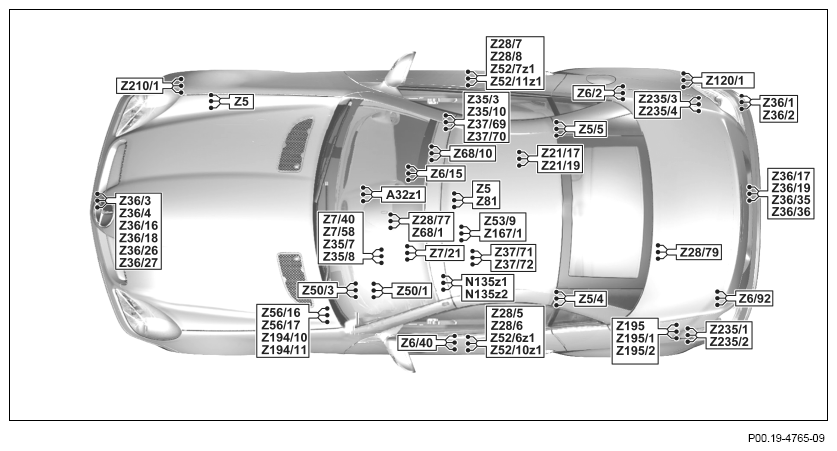

| Location | |||
| A32z1 | Air conditioner housing connector sleeve | GF00.19-P-3001-04TAA | |
| N135z1 | Circuit 31 steering wheel electronics connector sleeve | GF00.19-P-3001-03TAA | |
| N135z2 | Circuit 58 steering wheel electronics connector sleeve | GF00.19-P-3001-03TAA | |

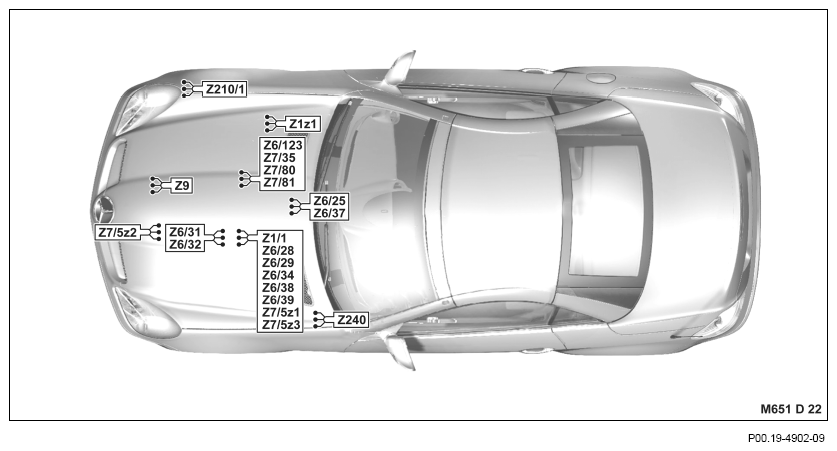

| Z1z1 | Connector sleeve 1 | Engine 651 | GF00.19-P-3001-01TAA |
| Z1/1 | Connector sleeve 1/1 | Engine 651 | GF00.19-P-3001-01TAA |

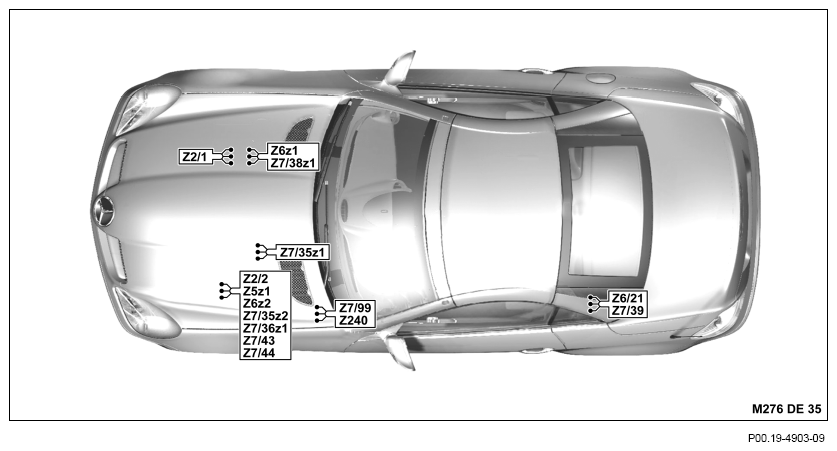

| Z2/1 | Circuit 31 connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-02TAA |
| Z2/2 | Circuit 31 connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-01TAA |

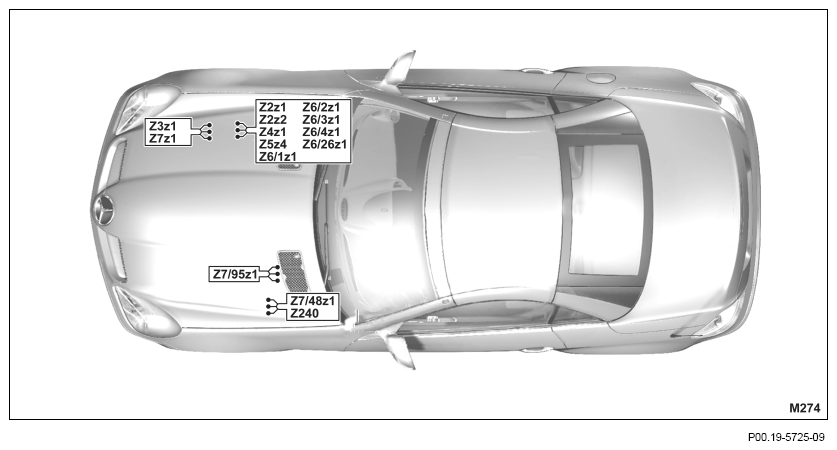

| Z2z1 | Circuit 31 connector sleeve | Engine 274 as of 03/2016 | GF00.19-P-3001-02TAA |
| Z2z2 | Circuit 31 connector sleeve | Engine 274 as of 03/2016 | GF00.19-P-3001-02TAA |
| Z3z1 | Circuit 87M connector sleeve | Engine 274 as of 03/2016 | GF00.19-P-3001-02TAA |
| Z4z1 | Circuit 87M connector sleeve | Engine 274 as of 03/2016 | GF00.19-P-3001-02TAA |
| Z5 | Connector sleeve in wiring harness | GF00.19-P-3001-04TAA | |

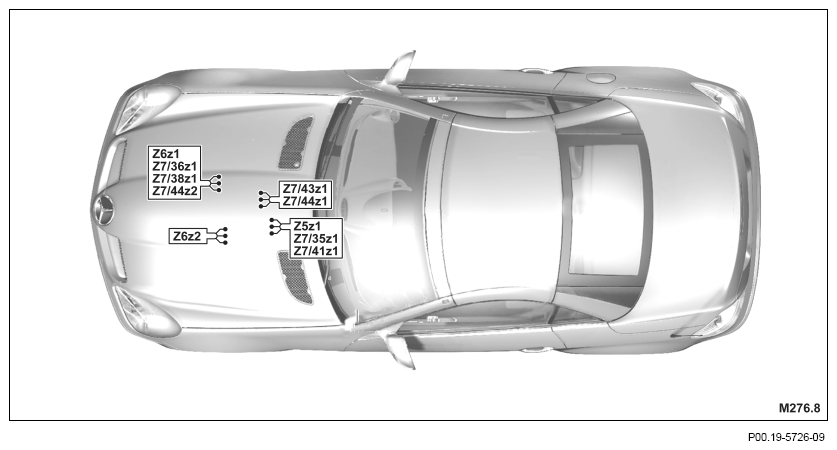

| Z5z1 | Cross section reduction connector sleeve | Engine 276.8 as of 03/2016 | GF00.19-P-3001-01TAA |
| Z5z1 | Cross section reduction connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z5z4 | Connector sleeve in wiring harness | Engine 274 as of 03/2016 | GF00.19-P-3001-02TAA |
| Z5/4 | Left reversible emergency tensioning retractor circuit 30 connector sleeve | GF00.19-P-3001-04TAA | |
| Z5/5 | Right reversible emergency tensioning retractor circuit 30 connector sleeve | GF00.19-P-3001-05TAA | |
| Z6z1 | Circuit 31 connector sleeve | Engine 276.8 as of 03/2016 | GF00.19-P-3001-01TAA |
| Z6z1 | Circuit 31 connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-02TAA |

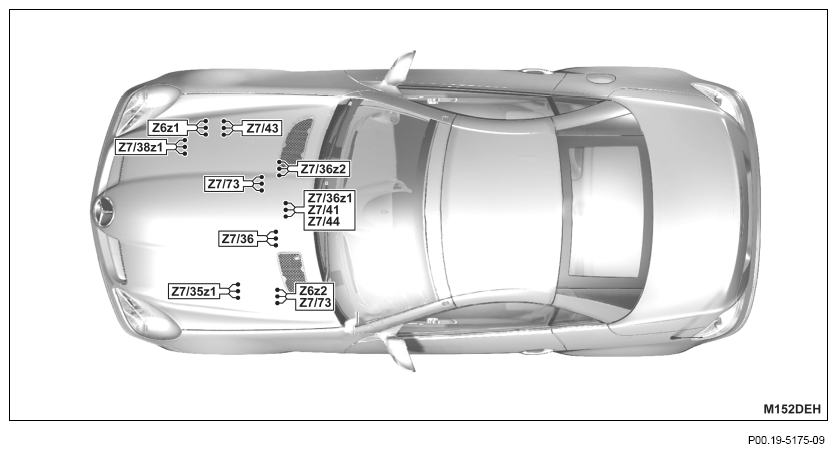

| Z6z1 | Circuit 31 connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-02TAA |
| Z6z2 | Circuit 31 connector sleeve | Engine 276.8 as of 03/2016 | GF00.19-P-3001-01TAA |
| Z6z2 | Circuit 31 connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-02TAA |
| Z6z2 | Circuit 31 connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z6/1z1 | Ground line connector sleeve | Engine 274 as of 03/2016 | GF00.19-P-3001-02TAA |
| Z6/2z1 | Ground line connector sleeve | Engine 274 as of 03/2016 | GF00.19-P-3001-02TAA |
| Z6/3z1 | Ground line connector sleeve | Engine 274 as of 03/2016 | GF00.19-P-3001-02TAA |
| Z6/4z1 | Ground line connector sleeve | Engine 274 as of 03/2016 | GF00.19-P-3001-02TAA |
| Z6/2 | Circuit 31 connector sleeve | GF00.19-P-3001-07TAA | |

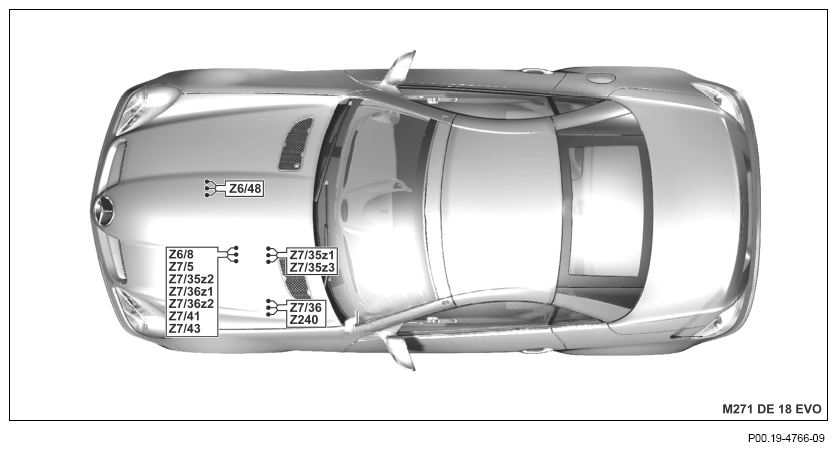

| Z6/8 | Sensor ground connector sleeve | Engine 271 up to 05/2015 | GF00.19-P-3001-01TAA |
| Z6/15 | Right seat belt buckle circuit 31 connector sleeve | GF00.19-P-3001-05TAA | |
| Z6/21 | Temperature sensor circuit 31 connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-23TAA |
| Z6/25 | Sensor voltage supply connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z6/26z1 | Sensor voltage supply connector sleeve | Engine 274 as of 03/2016 | GF00.19-P-3001-02TAA |
| Z6/28 | Sensor ground connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z6/29 | Sensor ground connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z6/31 | Sensor voltage supply connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z6/32 | Sensor ground connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z6/34 | Sensor ground connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z6/37 | Sensor ground connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z6/38 | Sensor ground line connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z6/39 | Sensor voltage supply connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z6/40 | NOx sensor connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-04TAA |
| Z6/48 | Ground connector sleeve | Engine 271 up to 05/2015 | GF00.19-P-3001-01TAA |
| Z6/92 | Trunk lid ground connector sleeve | GF00.19-P-3001-06TAA | |
| Z6/123 | Ground line connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z7z1 | Ground line connector sleeve | Engine 274 as of 03/2016 | GF00.19-P-3001-02TAA |
| Z7/5z1 | Circuit 87 connector sleeve | GF00.19-P-3001-01TAA | |
| Z7/5z2 | Circuit 87 connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z7/5z3 | Circuit 87 connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z7/21 | Air conditioning circuit 30 connector sleeve | GF00.19-P-3001-03TAA | |
| Z7/35 | Circuit 87 M1e connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z7/35z1 | Circuit 87 M1e connector sleeve | Engine 271 up to 05/2015 | GF00.19-P-3001-01TAA |
| Z7/35z1 | Circuit 87 M1e connector sleeve | Engine 276.8 as of 03/2016 | GF00.19-P-3001-01TAA |
| Z7/35z1 | Circuit 87 M1e connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z7/35z2 | Circuit 87 M1e connector sleeve | Engine 271 up to 05/2015 | GF00.19-P-3001-01TAA |
| Z7/35z2 | Circuit 87 M1e connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z7/35z3 | Circuit 87 M1e connector sleeve | Engine 271 up to 05/2015 | GF00.19-P-3001-01TAA |
| Z7/36 | Circuit 87 M2e connector sleeve | Engine 271 up to 05/2015 | GF00.19-P-3001-01TAA |
| Z7/36z1 | Circuit 87 M2e connector sleeve | Engine 271 up to 05/2015 | GF00.19-P-3001-01TAA |
| Z7/36z1 | Circuit 87 M2e connector sleeve | Engine 276.8 as of 03/2016 | GF00.19-P-3001-01TAA |
| Z7/36z1 | Circuit 87 M2e connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z7/36z1 | Circuit 87 M2e connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z7/36z2 | Circuit 87 M2e connector sleeve | Engine 271 up to 05/2015 | GF00.19-P-3001-01TAA |
| Z7/36z2 | Circuit 87 M2e connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z7/38z1 | Circuit 87 M1i connector sleeve | Engine 276.8 as of 03/2016 | GF00.19-P-3001-01TAA |
| Z7/38z1 | Circuit 87 M1i connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-02TAA |
| Z7/38z1 | Circuit 87 M1i connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-02TAA |
| Z7/39 | Circuit 87 M2i connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-23TAA |
| Z7/40 | Circuit 30 connector sleeve | GF00.19-P-3001-03TAA | |
| Z7/41 | Sensor voltage supply connector sleeve | Engine 271 up to 05/2015 | GF00.19-P-3001-01TAA |
| Z7/41 | Sensor voltage supply connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z7/41 | Sensor voltage supply connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z7/41z1 | Sensor voltage supply connector sleeve | Engine 276.8 as of 03/2016 | GF00.19-P-3001-01TAA |
| Z7/43 | Sensor ground connector sleeve | Engine 271 up to 05/2015 | GF00.19-P-3001-01TAA |
| Z7/43 | Sensor ground connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z7/43 | Sensor ground connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-02TAA |
| Z7/43z1 | Sensor ground connector sleeve | Engine 276.8 as of 03/2016 | GF00.19-P-3001-01TAA |
| Z7/44 | Sensor ground connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z7/44 | Sensor ground connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z7/44z1 | Sensor ground connector sleeve | Engine 276.8 as of 03/2016 | GF00.19-P-3001-01TAA |
| Z7/44z2 | Sensor ground connector sleeve | Engine 276.8 as of 03/2016 | GF00.19-P-3001-01TAA |
| Z7/48z1 | Circuit 87/2 connector sleeve | Engine 274 as of 03/2016 | GF00.19-P-3001-01TAA |
| Z7/58 | Circuit 30 connector sleeve | GF00.19-P-3001-03TAA | |
| Z7/73 | Circuit 87 connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-02TAA |
| Z7/80 | Catalytic converter differential pressure sensor/transmission neutral position sensor power supply connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z7/81 | Catalytic converter differential pressure sensor/transmission neutral position sensor ground connector sleeve | Engine 651 | GF00.19-P-3001-01TAA |
| Z7/95z1 | Circuit 87M1 connector sleeve | Engine 274 as of 03/2016 | GF00.19-P-3001-02TAA |
| Z7/99 | Circuit 87 M4e connector sleeve | Engine 276.9 up to 02/2016 | GF00.19-P-3001-01TAA |
| Z9 | Connector sleeve 1 | Engine 651 | GF00.19-P-3001-01TAA |
| Z21/17 | Control circuit 1 central locking connector sleeve | Up to 05/2015 | GF00.19-P-3001-05TAA |
| Z21/19 | Control circuit 2 central locking connector sleeve | Up to 05/2015 | GF00.19-P-3001-05TAA |
| Z28/5 | Left door speaker group connector sleeve (+ signal) | GF00.19-P-3001-04TAA | |
| Z28/6 | Left door speaker group connector sleeve (- signal) | GF00.19-P-3001-04TAA | |
| Z28/7 | Right door speaker group connector sleeve (+ signal) | GF00.19-P-3001-05TAA | |
| Z28/8 | Right door speaker group connector sleeve (- signal) | GF00.19-P-3001-05TAA | |
| Z28/51 | Telephone mute connector sleeve | GF00.19-P-3001-04TAA | |
| Z28/77 | Compensator switching signal connector sleeve, receiver on/off | GF00.19-P-3001-04TAA | |
| Z28/79 | Rear shelf antenna connector sleeve | GF00.19-P-3001-06TAA | |
| Z35/3 | Wake-up signal connector sleeve | GF00.19-P-3001-05TAA | |
| Z35/7 | CAN bus high cockpit bus node | GF00.19-P-3001-03TAA | |
| Z35/8 | CAN bus low cockpit bus node | GF00.19-P-3001-03TAA | |
| Z35/10 | MOST wake-up signal connector sleeve | GF00.19-P-3001-05TAA | |
| Z36/1 | Rear parking system sensors ground line connector sleeve | GF00.19-P-3001-07TAA | |
| Z36/2 | Rear parking system sensors positive line connector sleeve | GF00.19-P-3001-07TAA | |
| Z36/3 | Front parking system sensors ground line connector sleeve | GF00.19-P-3001-01TAA | |
| Z36/4 | Front parking system sensors positive line connector sleeve | GF00.19-P-3001-01TAA | |
| Z36/16 | Front sensor CAN connector sleeve | GF00.19-P-3001-01TAA | |
| Z36/17 | Rear sensor CAN connector sleeve | GF00.19-P-3001-07TAA | |
| Z36/18 | Front sensor CAN connector sleeve | GF00.19-P-3001-01TAA | |
| Z36/19 | Rear sensor CAN connector sleeve | GF00.19-P-3001-07TAA | |
| Z36/26 | Front DISTRONIC PLUS sensor ground connector sleeve | GF00.19-P-3001-01TAA | |
| Z36/27 | Front DISTRONIC PLUS sensor ground power supply connector sleeve | GF00.19-P-3001-01TAA | |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | GF00.19-P-3001-07TAA | |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | GF00.19-P-3001-07TAA | |
| Z37/69 | Vehicle dynamics CAN (high) connector sleeve | GF00.19-P-3001-05TAA | |
| Z37/70 | Vehicle dynamics CAN (low) connector sleeve | GF00.19-P-3001-05TAA | |
| Z37/71 | Reversible emergency tensioning retractor chassis CAN (low) connector sleeve | GF00.19-P-3001-04TAA | |
| Z37/72 | Reversible emergency tensioning retractor chassis CAN (high) connector sleeve | GF00.19-P-3001-04TAA | |
| Z50/1 | Circuit 58d instrument panel connector sleeve | GF00.19-P-3001-04TAA | |
| Z50/3 | Circuit 31 instrument panel connector sleeve | GF00.19-P-3001-04TAA | |
| Z52/6z1 | Exit lamp connector sleeve | GF00.19-P-3001-04TAA | |
| Z52/7z1 | Exit lamp connector sleeve | GF00.19-P-3001-05TAA | |
| Z52/10z1 | Left door ambiance illumination power supply connector sleeve 1 | GF00.19-P-3001-04TAA | |
| Z52/11z1 | Right door ambiance illumination power supply connector sleeve 1 | GF00.19-P-3001-05TAA | |
| Z53/9 | Vehicle interior connector sleeve, airbag circuit 31 | GF00.19-P-3001-04TAA | |
| Z56/16 | Level sensor ground connection engine compartment solder point | GF00.19-P-3001-01TAA | |
| Z56/17 | Level sensor supply engine compartment solder point | GF00.19-P-3001-01TAA | |
| Z68/1 | Instrument panel circuit 31 climate control LIN connector sleeve | GF00.19-P-3001-04TAA | |
| Z68/10 | Instrument panel LIN connector sleeve | GF00.19-P-3001-03TAA | |
| Z81 | Circuit 58d connector sleeve | GF00.19-P-3001-04TAA | |
| Z120/1 | AdBlue® fuse block supply connector sleeve | Engine 651 | GF00.19-P-3001-07TAA |
| Z167/1 | AIRSCARF fan connector sleeve | GF00.19-P-3001-04TAA | |
| Z194/10 | Headlamp control unit circuit 30 connector sleeve | GF00.19-P-3001-01TAA | |
| Z194/11 | Front LED exterior illumination actuation module circuit 30 connector sleeve | GF00.19-P-3001-01TAA | |
| Z195 | Exhaust flap circuit 15R connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-07TAA |
| Z195/1 | Exhaust flap circuit 31 connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-07TAA |
| Z195/2 | Exhaust flap actuation connector sleeve | Engine 152 up to 02/2016 | GF00.19-P-3001-07TAA |
| Z232/24 | Vehicle interior ambiance illumination connector sleeve | GF00.19-P-3001-05TAA | |
| Z232/25 | Vehicle interior ambiance illumination connector sleeve | GF00.19-P-3001-05TAA | |
| Z232/1z1 | Center console ambiance illumination ground line connector sleeve | GF00.19-P-3001-05TAA | |
| Z232/2z1 | Center console ambiance illumination power supply connector sleeve 1 | GF00.19-P-3001-05TAA | |
| Z232/3z1 | Center console ambiance illumination power supply connector sleeve 2 | GF00.19-P-3001-05TAA | |
| Z235/1 | Electronic parking brake circuit 30 connector sleeve | GF00.19-P-3001-06TAA | |
| Z235/2 | Electronic parking brake circuit 31 connector sleeve | GF00.19-P-3001-06TAA | |
| Z235/3 | Electronic parking brake circuit 30 connector sleeve | GF00.19-P-3001-07TAA | |
| Z235/4 | Electronic parking brake circuit 31 connector sleeve | GF00.19-P-3001-07TAA | |
| Z240 | Refrigerant compressor magnetic clutch power supply connector sleeve | GF00.19-P-3001-01TAA | |
| Assignment | |||
| A32z1 | Air conditioner housing connector sleeve | PE54.15-P-2502TAA | |
| N135z1 | Circuit 31 steering wheel electronics connector sleeve | PE46.10-P-2101TAA | |
| N135z2 | Circuit 58 steering wheel electronics connector sleeve | PE46.10-P-2101TAA | |
| Z1z1 | Connector sleeve 1 | Engine 651 | PE07.16-P-2101TAB |
| Z1/1 | Connector sleeve 1/1 | Engine 651 | PE07.16-P-2101TAB |
| Z2/1 | Right engine ground connector sleeve | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAD |
| Z2/2 | Left engine ground connector sleeve | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAD |
| Z2z1 | Circuit 31 connector sleeve | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z2z2 | Circuit 31 connector sleeve | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z3z1 | Circuit 87M connector sleeve | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z4z1 | Circuit 87M connector sleeve | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z5z1 | Cross section reduction connector sleeve | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAD |
| Z5z4 | Connector sleeve in wiring harness | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z5z1 | Cross section reduction connector sleeve | Engine 276.8 as of 03/2016 | PE07.08-P-2101TAH |
| Z5 | Connector sleeve in wiring harness | PE91.60-P-2106TAB | |
| Z5/4 | Left reversible emergency tensioning retractor circuit 30 connector sleeve | PE91.40-P-2200TAA | |
| Z5/5 | Right reversible emergency tensioning retractor circuit 30 connector sleeve | PE91.40-P-2200TAA | |
| Z6/123 | Ground line connector sleeve | Engine 651 | PE07.16-P-2101TAA |
| Z6/15 | Right seat belt buckle circuit 31 connector sleeve | PE91.60-P-2106TAB | |
| Z6/1z1 | Ground line connector sleeve | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z6/2z1 | Ground line connector sleeve | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z6/2 | Circuit 31 connector sleeve | PE00.19-P-2800TAA | |
| Z6/21 | Temperature sensor circuit 31 connector sleeve | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAC |
| Z6/25 | Sensor voltage supply connector sleeve | Engine 651 | PE07.16-P-2101TAB |
| Z6/26z1 | Sensor voltage supply connector sleeve | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z6/28 | Sensor ground connector sleeve | Engine 651 | PE07.16-P-2101TAB |
| Z6/29 | Sensor ground connector sleeve | Engine 651 | PE07.16-P-2101TAB |
| Z6/31 | Sensor voltage supply connector sleeve | Engine 651 | PE07.16-P-2101TAB |
| Z6/32 | Sensor ground connector sleeve | Engine 651 | PE07.16-P-2101TAB |
| Z6/34 | Sensor ground connector sleeve | Engine 651 | PE07.16-P-2101TAB |
| Z6/37 | Sensor voltage supply connector sleeve | Engine 651 | PE07.16-P-2101TAB |
| Z6/38 | Sensor ground line connector sleeve | Engine 651 | PE07.16-P-2101TAB |
| Z6/39 | Sensor voltage supply connector sleeve | Engine 651 | PE07.16-P-2101TAB |
| Z6/3z1 | Ground line connector sleeve | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z6/40 | NOx sensor connector sleeve | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAC |
| Z6/48 | Ground connector sleeve | Engine 271 up to 05/2015 | PE07.08-P-2101TAA |
| Z6/4z1 | Ground line connector sleeve | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z6/8 | Sensor ground connector sleeve | Engine 271 up to 05/2015 | PE07.08-P-2101TAA |
| Z6/92 | Trunk lid ground connector sleeve | PE00.19-P-2800TAA | |
| Z6z1 | Circuit 31 connector sleeve | PE00.19-P-2800TAE | |
| Z6z2 | Circuit 31 connector sleeve | PE00.19-P-2800TAE | |
| Z7/21 | Air conditioning circuit 30 connector sleeve | PE83.40-P-2101TAA | |
| Z7/35 | Circuit 87 M1e connector sleeve | Engine 651 | PE00.19-P-2600TAB |
| Z7/35z1 | Circuit 87 M1e connector sleeve | Engine 271 up to 05/2015 | PE00.19-P-2600TAA |
| Z7/35z1 | Circuit 87 M1e connector sleeve | Engine 276.8 as of 03/2016 | PE00.19-P-2600TAA |
| Z7/35z1 | Circuit 87 M1e connector sleeve | Engine 152 up to 02/2016 | PE00.19-P-2600TAA |
| Z7/35z2 | Circuit 87 M1e connector sleeve | Engine 271 up to 05/2015 | PE00.19-P-2600TAA |
| Z7/35z2 | Circuit 87 M1e connector sleeve | Engine 276.9 up to 02/2016 | PE00.19-P-2600TAA |
| Z7/35z3 | Circuit 87 M1e connector sleeve | Engine 271 up to 05/2015 | PE00.19-P-2600TAA |
| Z7/36 | Circuit 87 M2e connector sleeve | Engine 271 up to 05/2015 | PE07.08-P-2101TAB |
| Z7/36 | Circuit 87 M2e connector sleeve | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAC |
| Z7/36 | Circuit 87 M2e connector sleeve | Engine 152 up to 02/2016 | PE07.08-P-2101TAE |
| Z7/36 | Circuit 87 M2e connector sleeve | Engine 276.8 as of 03/2016 | PE07.08-P-2101TAH |
| Z7/36z1 | Circuit 87 M2e connector sleeve | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAD |
| Z7/36z1 | Circuit 87 M2e connector sleeve | Engine 152 up to 02/2016 | PE07.08-P-2101TAF |
| Z7/36z2 | Circuit 87 M2e connector sleeve | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAD |
| Z7/36z2 | Circuit 87 M2e connector sleeve | Engine 152 up to 02/2016 | PE07.08-P-2101TAF |
| Z7/38z1 | Circuit 87 M1i connector sleeve | Engine 152/276.9 up to 02/2016 | PE00.19-P-2600TAA |
| Z7/38z1 | Circuit 87 M1i connector sleeve | Engine 276.8 as of 03/2016 | PE07.08-P-2101TAH |
| Z7/39 | Circuit 87 M2i connector sleeve | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAC |
| Z7/40 | Circuit 30 connector sleeve | PE54.21-P-2104TAA | |
| Z7/41 | Sensor voltage supply connector sleeve | Engine 271 up to 05/2015 | PE07.08-P-2101TAA |
| Z7/41 | Sensor voltage supply connector sleeve | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAD |
| Z7/41 | Sensor voltage supply connector sleeve | Engine 152 up to 02/2016 | PE07.08-P-2101TAF |
| Z7/41z1 | Sensor voltage supply connector sleeve | Engine 276.8 as of 03/2016 | PE07.08-P-2101TAH |
| Z7/43 | Sensor ground connector sleeve | Engine 271 up to 05/2015 | PE07.08-P-2101TAA |
| Z7/43 | Sensor ground connector sleeve | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAD |
| Z7/43 | Sensor ground connector sleeve | Engine 152 up to 02/2016 | PE07.08-P-2101TAF |
| Z7/43z1 | Sensor ground connector sleeve | Engine 276.8 as of 03/2016 | PE07.08-P-2101TAH |
| Z7/44 | Sensor ground connector sleeve | Engine 276.9 up to 02/2016 | PE00.19-P-2800TAD |
| Z7/44 | Sensor ground connector sleeve | Engine 152 up to 02/2016 | PE00.19-P-2800TAD |
| Z7/44z1 | Sensor ground connector sleeve | Engine 276.8 as of 03/2016 | PE07.08-P-2101TAH |
| Z7/44z2 | Sensor ground connector sleeve | Engine 276.8 as of 03/2016 | PE07.08-P-2101TAH |
| Z7/48z1 | Circuit 87/2 connector sleeve | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z7/48 | Circuit 87D2 connector sleeve | Engine 651 | PE14.40-P-2101TAA |
| Z7/5 | Circuit 87 connector sleeve | Engine 271 up to 05/2015 | PE07.08-P-2101TAA |
| Z7/5z1 | Circuit 87 connector sleeve | Engine 651 | PE07.16-P-2101TAB |
| Z7/5z2 | Circuit 87 connector sleeve | Engine 651 | PE07.16-P-2101TAA |
| Z7/5z3 | Circuit 87 connector sleeve | Engine 651, vehicle side | PE07.16-P-2101TAA |
| Z7/5z3 | Circuit 87 connector sleeve | Engine 651, engine side | PE07.16-P-2101TAB |
| Z7/58 | Circuit 30 connector sleeve | PE54.21-P-2106TAF | |
| Z7/73 | Circuit 87 connector sleeve | Engine 152 up to 02/2016 | PE07.08-P-2101TAE |
| Z7/80 | Catalytic converter differential pressure sensor/transmission neutral position sensor power supply connector sleeve | Engine 651 | PE07.16-P-2101TAA |
| Z7/81 | Catalytic converter differential pressure sensor/transmission neutral position sensor ground connector sleeve | Engine 651 | PE07.16-P-2101TAA |
| Z7/95z1 | Circuit 87M1 connector sleeve | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z7/99 | Circuit 87 M4e connector sleeve | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAC |
| Z7/99 | Circuit 87 M4e connector sleeve | Engine 276.8 as of 03/2016 | PE07.08-P-2101TAH |
| Z7z1 | Ground line connector sleeve | Engine 274 as of 03/2016 | PE07.08-P-2101TAG |
| Z9 | Connector sleeve 1 | PE15.00-P-2101TAB | |
| Z21/17 | Control circuit 1 central locking connector sleeve | Up to 05/2015 | PE54.21-P-2108TAD |
| Z21/19 | Control circuit 2 central locking connector sleeve | Up to 05/2015 | PE54.21-P-2108TAD |
| Z28/5 | Left door speaker group connector sleeve (+ signal) | PE82.62-P-2101TAA | |
| Z28/6 | Left door speaker group connector sleeve (- signal) | PE82.62-P-2101TAA | |
| Z28/7 | Right door speaker group connector sleeve (+ signal) | PE82.62-P-2101TAA | |
| Z28/51 | Telephone mute connector sleeve | PE82.85-P-2107TAA | |
| Z28/77 | Compensator switching signal connector sleeve, receiver on/off | Up to 02/2016 | PE82.62-P-2103TAB |
| Z28/77 | Compensator switching signal connector sleeve, receiver on/off | As of 03/2016 | PE82.62-P-2103TAC |
| Z28/78 | Rear shelf antenna screening end connector sleeve | As of 03/2016 | PE82.62-P-2103TAC |
| Z28/79 | Rear shelf antenna connector sleeve | Up to 02/2016 | PE82.62-P-2103TAA |
| Z28/79 | Rear shelf antenna connector sleeve | As of 03/2016 | PE82.62-P-2103TAC |
| Z28/8 | Right door speaker group connector sleeve (- signal) | PE82.62-P-2101TAA | |
| Z35/10 | MOST wake-up signal connector sleeve | PE82.00-P-2710TAA | |
| Z35/3 | Wake-up signal connector sleeve | with code 505/522 as of 03/2016 | PE82.60-P-2101TAB |
| Z35/3 | Wake-up signal connector sleeve | with code 518, as of 03/2016 | PE82.60-P-2109TAA |
| Z35/3 | Wake-up signal connector sleeve | with code B63 as of 03/2016 | PE54.21-P-2148TAA |
| Z35/3 | Wake-up signal connector sleeve | with code 531 except Japan, as of 03/2016 | PE82.85-P-2101TAC |
| Z35/3 | Wake-up signal connector sleeve | with code 531 only Japan, as of 03/2016 | PE82.85-P-2101TAD |
| Z35/7 | CAN bus high cockpit bus node | Up to 02/2016 | PE00.19-P-2195TAA |
| Z35/7 | CAN bus high cockpit bus node | As of 03/2016 | PE00.19-P-2195TAB |
| Z35/8 | CAN bus low cockpit bus node | Up to 02/2016 | PE00.19-P-2195TAA |
| Z35/8 | CAN bus low cockpit bus node | As of 03/2016 | PE00.19-P-2195TAB |
| Z36/1 | Rear parking system sensors ground line connector sleeve | PE54.65-P-2101TAA | |
| Z36/16 | Front sensor CAN connector sleeve | with code 233/237 up to 05/2015 | PE30.30-P-2101TAA |
| Z36/17 | Rear sensor CAN connector sleeve | with code 233/237 up to 05/2015 | PE30.30-P-2101TAA |
| Z36/17 | Rear sensor CAN connector sleeve | With code 234 | PE54.71-P-2100TAA |
| Z36/18 | Front sensor CAN connector sleeve | with code 233/237 up to 05/2015 | PE30.30-P-2101TAA |
| Z36/19 | Rear sensor CAN connector sleeve | with code 233/237 up to 05/2015 | PE30.30-P-2101TAA |
| Z36/19 | Rear sensor CAN connector sleeve | With code 234 | PE54.71-P-2100TAA |
| Z36/2 | Rear parking system sensors positive line connector sleeve | PE54.65-P-2101TAA | |
| Z36/26 | Front DISTRONIC PLUS sensor ground | with code 233/237 up to 05/2015 | PE30.30-P-2101TAA |
| connector sleeve | |||
| Z36/27 | DISTRONIC front voltage supply connector sleeve | with code 233/237 up to 05/2015 | PE30.30-P-2101TAA |
| Z36/3 | Front parking system sensors ground line connector sleeve | PE54.65-P-2101TAA | |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | with code 233/237 up to 05/2015 | PE30.30-P-2101TAA |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | With code 234 | PE54.71-P-2100TAA |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | with code 233/237 up to 05/2015 | PE30.30-P-2101TAA |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | With code 234 | PE54.71-P-2100TAA |
| Z36/4 | Front parking system sensors positive line connector sleeve | PE54.65-P-2101TAA | |
| Z37/69 | Vehicle dynamics CAN (high) connector sleeve | PE42.47-P-2000TAA | |
| Z37/70 | Vehicle dynamics CAN (low) connector sleeve | PE42.47-P-2000TAA | |
| Z37/71 | Reversible emergency tensioning retractor chassis CAN (low) connector sleeve | PE91.40-P-2200TAA | |
| Z37/72 | Reversible emergency tensioning retractor chassis CAN (high) connector sleeve | PE91.40-P-2200TAA | |
| Z50/1 | Circuit 58d instrument panel connector sleeve | PE00.19-P-2600TAB | |
| Z50/3 | Circuit 31 instrument panel connector sleeve | PE00.19-P-2800TAB | |
| Z52/10z1 | Left door ambiance illumination power supply connector sleeve 1 | PE72.29-P-2101TAA | |
| Z52/11z1 | Right door ambiance illumination power supply connector sleeve 1 | PE72.29-P-2102TAA | |
| Z52/6z1 | Left door ambiance illumination ground connector sleeve | PE72.29-P-2101TAA | |
| Z52/7z1 | Right door ambiance illumination ground line connector sleeve | PE72.29-P-2102TAA | |
| Z53/9 | Vehicle interior connector sleeve, airbag circuit 31 | PE00.19-P-2800TAB | |
| Z56/16 | Level sensor ground connection engine compartment solder point | PE82.10-P-2000TAC | |
| Z56/17 | Level sensor supply engine compartment solder point | PE82.10-P-2000TAC | |
| Z68/1 | Instrument panel circuit 31 climate control LIN connector sleeve | PE00.19-P-2800TAB | |
| Z68/10 | Instrument panel LIN connector sleeve | PE54.21-P-2119TAA | |
| Z81 | Circuit 58d connector sleeve | PE00.19-P-2600TAB | |
| Z120/1 | AdBlue® fuse block supply connector sleeve | Engine 651 | PE14.40-P-2101TAA |
| Z167/1 | AIRSCARF fan connector sleeve | PE91.30-P-2102TAA | |
| Z194/10 | Headlamp control unit circuit 30 connector sleeve | PE82.10-P-2000TAC | |
| Z194/11 | Front LED exterior illumination actuation module circuit 30 connector sleeve | PE82.10-P-2000TAC | |
| Z195 | Exhaust flap circuit 15R connector sleeve | Engine 152 up to 02/2016 | PE07.08-P-2101TAF |
| Z195/1z1 | Exhaust flap circuit 31 connector sleeve | Engine 276.8 as of 03/2016 | PE07.08-P-2101TAH |
| Z195/1z2 | Exhaust flap circuit 31 connector sleeve | Engine 276.8 as of 03/2016 | PE07.08-P-2101TAH |
| Z195/1 | Exhaust flap circuit 31 connector sleeve | Engine 152 up to 02/2016 | PE07.08-P-2101TAF |
| Z195/2 | Exhaust flap actuation connector sleeve | Engine 152 up to 02/2016 | PE07.08-P-2101TAF |
| Z195/3 | Exhaust flap circuit 87F connector sleeve | PE07.08-P-2101TAH | |
| Z203/3 | Alternator LIN signal connector sleeve | PE15.00-P-2101TAA | |
| Z210/1 | Transmission fluid circulation pump circuit 87 relay connector sleeve | Engine 651 | PE07.16-P-2101TAB |
| Z232/24 | Vehicle interior ambiance illumination connector sleeve | PE54.21-P-2106TAD | |
| Z232/24 | Vehicle interior ambiance illumination connector sleeve | PE54.21-P-2106TAH | |
| Z232/25 | Vehicle interior ambiance illumination connector sleeve | PE54.21-P-2106TAD | |
| Z232/25 | Vehicle interior ambiance illumination connector sleeve | PE54.21-P-2106TAH | |
| Z232/1z1 | Center console ambiance illumination ground line connector sleeve | PE54.21-P-2106TAH | |
| Z232/2z1 | Center console ambiance illumination power supply connector sleeve 1 | PE54.21-P-2106TAH | |
| Z232/3z1 | Center console ambiance illumination power supply connector sleeve 2 | PE54.21-P-2106TAH | |
| Z235/1 | Electronic parking brake circuit 30 connector sleeve | PE42.20-P-2101TAA | |
| Z235/2 | Electronic parking brake circuit 31 connector sleeve | PE42.20-P-2101TAA | |
| Z235/3 | Electronic parking brake circuit 30 connector sleeve | PE42.20-P-2101TAA | |
| Z235/4 | Electronic parking brake circuit 31 connector sleeve | PE42.20-P-2101TAA | |
| Z240 | Refrigerant compressor magnetic clutch power supply connector sleeve | PE54.18-P-2300TAA | |
| Overview of location documents | |||
| Location of Z-connector sleeves (line connections in wiring harness) - left of engine compartment | Model 172.4 | GF00.19-P-3001-01TAA | |
| Location of Z-connector sleeves (line connections in wiring harness) - engine compartment, right | Model 172.4 | GF00.19-P-3001-02TAA | |
| Location of Z-connector sleeves (line connections in wiring harness) - cockpit | Model 172.4 | GF00.19-P-3001-03TAA | |
| Location of Z-connector sleeves (line connections in wiring harness) - interior compartment, left | Model 172.4 | GF00.19-P-3001-04TAA | |
| Location of Z-connector sleeves (line connections in wiring harness) - interior compartment, right | Model 172.4 | GF00.19-P-3001-05TAA | |
| Location of Z-connector sleeves (line connections in wiring harness) - trunk, left | Model 172.4 | GF00.19-P-3001-06TAA | |
| Location of Z-connector sleeves (line connections in wiring harness) - trunk, right | Model 172.4 | GF00.19-P-3001-07TAA | |
| Location of Z-connector sleeves (line connections in wiring harness) - underfloor | Model 172.4 | GF00.19-P-3001-23TAA |
