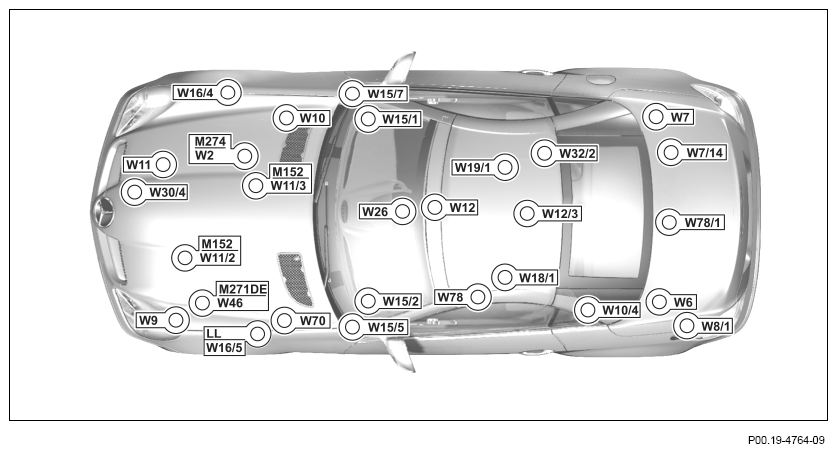

Location And Assignment Of Ground Points - GF00.19-P-2000TAA
Model 172.4
| Location | |||
| W2 | Right front ground point (at lamp unit) | ENGINE 274 | GF00.19-P-2001-02TAA |
| W6 | Left wheel arch trunk ground point | GF00.19-P-2001-21TAA | |
| W7 | Right wheelhouse trunk ground point | GF00.19-P-2001-21TAA | |
| W7/14 | AdBlue® ground point | GF00.19-P-2001-21TAA | |
| W8/1 | Left tailgate ground point | GF00.19-P-2001-21TAA | |
| W9 | Left front ground point (at lamp unit) | GF00.19-P-2001-01TAA | |
| W10 | Right front battery ground point | GF00.19-P-2001-02TAA | |
| W10/4 | 2nd battery ground point | GF00.19-P-2001-21TAA | |
| W11 | Combustion engine ground point | GF00.19-P-2001-02TAA | |
| W11/2 | Right combustion engine ground point | GF00.19-P-2001-02TAA | |
| W11/3 | Left combustion engine ground point | GF00.19-P-2001-02TAA | |
| W12 | Ground point (center console) | GF00.19-P-2001-03TAA | |
| W12/3 | Center console ground point (static discharge) | GF00.19-P-2001-03TAA | |
| W15/1 | Right footwell ground point | GF00.19-P-2001-05TAA | |
| W15/2 | Left footwell ground point | GF00.19-P-2001-04TAA | |
| W15/5 | Left front footwell ground point | GF00.19-P-2001-04TAA | |
| W15/7 | Right front footwell ground point | GF00.19-P-2001-05TAA | |
| W16/4 | Right major assembly compartment ground point | GF00.19-P-2001-02TAA | |
| W16/5 | Left major assembly compartment electronics ground point | GF00.19-P-2001-01TAA | |
| W18/1 | Center rear crossmember ground point | GF00.19-P-2001-04TAA | |
| W19/1 | Right front seat crossmember ground point | GF00.19-P-2001-05TAA | |
| W26 | Supplemental restraint system (SRS) control unit ground point | GF00.19-P-2001-03TAA | |
| W30/4 | Power steering pump ground point | GF00.19-P-2001-02TAA | |
| W32/2 | Right rear panel ground point | GF00.19-P-2001-05TAA | |
| W46 | Air pump ground point | GF00.19-P-2001-01TAA | |
| W46/1 | Electric coolant pump ground point | GF00.19-P-2001-10TAA | |
| W70 | Electronic Stability Program ground point | GF00.19-P-2001-01TAA | |
| W78 | Roof ground point | GF00.19-P-2001-04TAA | |
| W78/1 | Rear window interference suppression capacitor ground point | GF00.19-P-2001-21TAA | |
| Assignment | GF00.19-P-2001-21TAA | ||
| W2 | Right front ground point (at lamp unit) | ENGINE 274 | PE07.08-P-2101TAG |
| W6 | Left wheel arch trunk ground point | PE00.19-P-2800TAA | |
| W7 | Right wheelhouse trunk ground point | PE00.19-P-2800TAA | |
| W7/14 | AdBlue® ground point | PE14.40-P-2101TAA | |
| W8/1 | Left tailgate ground point | PE54.21-P-2108TAD | |
| W9 | Left front ground point (at lamp unit) | PE00.19-P-2800TAA | |
| W10 | Right front battery ground point | ENGINE 152, 276 | PE15.00-P-2101TAA |
| W10 | Right front battery ground point | Engine 651 | PE15.00-P-2101TAB |
| W10 | Right front battery ground point | Engine 271, 274 | PE15.00-P-2101TAC |
| W10/4 | 2nd battery ground point | ENGINE 152, 276 | PE15.00-P-2101TAA |
| W10/4 | 2nd battery ground point | Engine 651 | PE15.00-P-2101TAB |
| W10/4 | 2nd battery ground point | Engine 271, 274 | PE15.00-P-2101TAC |
| W11 | Combustion engine ground point | Engine 271 up to 05/2015 | PE07.08-P-2101TAA |
| W11 | Combustion engine ground point | Engine 276.9 up to 02/2016 | PE07.08-P-2101TAD |
| W11 | Combustion engine ground point | Engine 276.8 as of 03/2016 | PE07.08-P-2101TAH |
| W11/2 | Right combustion engine ground point | PE07.08-P-2101TAF | |
| W11/3 | Left combustion engine ground point | PE07.08-P-2101TAF | |
| W12 | Ground point (center console) | PE00.19-P-2800TAB | |
| W12/3 | Center console ground point (static discharge) | PE54.21-P-2106TAH | |
| W15/1 | Right footwell ground point | PE00.19-P-2800TAB | |
| W15/2 | Left footwell ground point | PE00.19-P-2800TAB | |
| W15/5 | Left front footwell ground point | PE00.19-P-2800TAC | |
| W15/7 | Right front footwell ground point | PE00.19-P-2800TAD | |
| W16/4 | Right major assembly compartment ground point | PE00.19-P-2800TAE | |
| W16/5 | Left major assembly compartment electronics ground point | PE00.19-P-2800TAE | |
| W18/1 | Center rear crossmember ground point | PE00.19-P-2800TAD | |
| W19/1 | Right front seat crossmember ground point | PE00.19-P-2800TAD | |
| W26 | Supplemental restraint system control unit ground point | PE00.19-P-2800TAB | |
| W30/4 | Power steering pump ground point | PE46.25-P-2000TAA | |
| W32/2 | Right rear panel ground point | PE00.19-P-2800TAB | |
| W46 | Air pump ground point | PE54.21-P-2106TAE | |
| W46/1 | Electric coolant pump ground point | PE54.21-P-2106TAE | |
| W70 | Electronic Stability Program ground point | PE42.47-P-2000TAA | |
| W78 | Roof ground point | PE54.21-P-2108TAG | |
| W78/1 | Rear window interference suppression capacitor ground point | PE54.21-P-2108TAG | |
| Overview of location documents | |||
| Location of ground points - engine compartment, left | GF00.19-P-2001-01TAA | ||
| Location of ground points - engine compartment, right | GF00.19-P-2001-02TAA | ||
| Location of ground points - cockpit | GF00.19-P-2001-03TAA | ||
| Location of ground points - interior compartment, left | GF00.19-P-2001-04TAA | ||
| Location of ground points - interior compartment, right | GF00.19-P-2001-05TAA | ||
| Location of ground points - underfloor | GF00.19-P-2001-10TAA | ||
| Location of ground points - rear end | GF00.19-P-2001-21TAA |
