Remove/Install Inertization Cartridge - AR86.10-P-0106W
Model 172
with code 2U8 (Alternative refrigerant)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect ground line | AR54.10-P-0003W | |
| 2 | Remove right front wheel | ||
| AP40.10-P-4050V | |||
| 3 | Detach right front fender liner in rear area | ||
| 4 | Pull fender liner forward so that inerting system parts can be accessed | ||

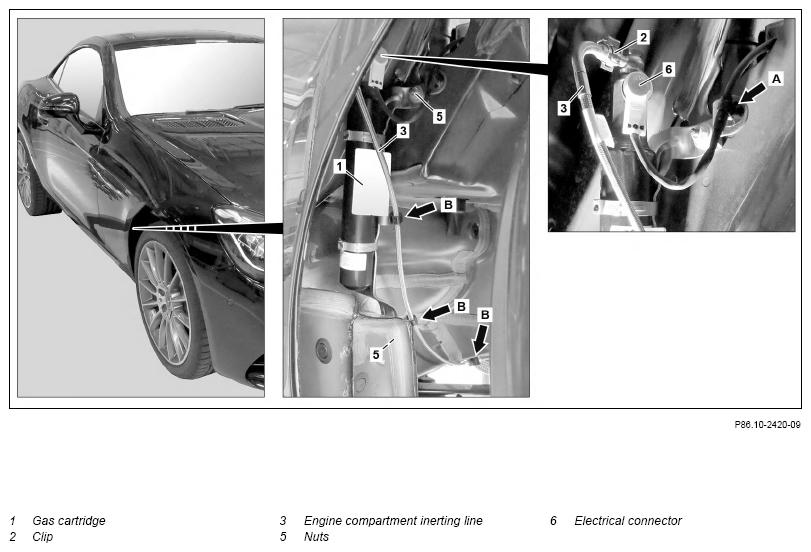

| 5 | Release and disconnect electrical connector (6) of gas cartridge (1) and unclip electric line from bracket (arrow A) | ||
| 6 | Remove clip (2) of engine compartment inerting line (3) from gas cartridge (1) | ||
| 7 | Expose engine compartment inerting line (3) at brackets (arrows B) | ||
| 8 | Unscrew nuts (5) | Model 172 with engine 276 with code 2U8 (Alternative refrigerant) Nut, pressure medium reservoir to body |
*BA86.10-P-1001-03C |
| 9 | Remove gas cartridge (1) with bracket | ||
| 10 | Install in the reverse order |
INERTING
| Number | Designation | Model 172 with engine 274 | Model 172 with engine 276 | ||
|---|---|---|---|---|---|
| BA86.10-P-1001-03C | Nut, pressure medium reservoir to body | M6 | Nm | 8 | 8 |
