Check Entrance Guard - AP86.20-P-8664C

Model 156, 169, 172, 176, 177, 204, 205, 206, 207, 212, 213, 218, 221, 222, 223, 238, 243, 245, 246, 247, 253, 257 with code 45P (Disability conversion - Sales control code)

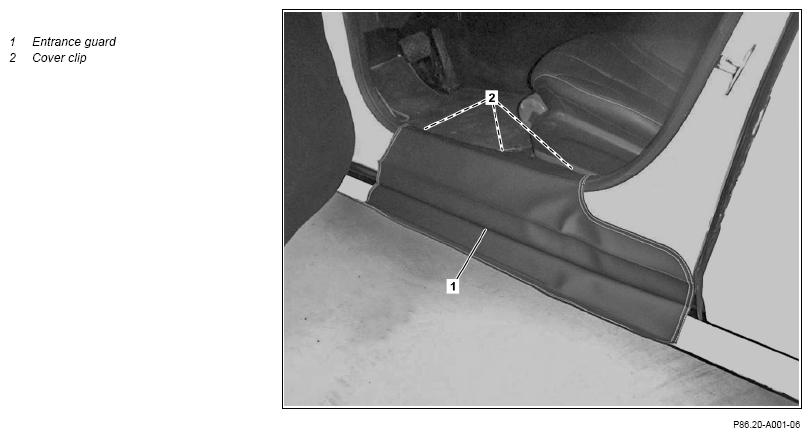

G13775656Courtesy of MERCEDES-BENZ USA
INSPECT Check
1 Check entrance guard (1) for damage. If problems occur,

rectify the problems.
IMPORTANT After obtaining special order.

2 Check trim clips (2) of entrance guard (1) for correct latching and damage. If problems occur,

rectify the problems.
IMPORTANT After obtaining special order.
