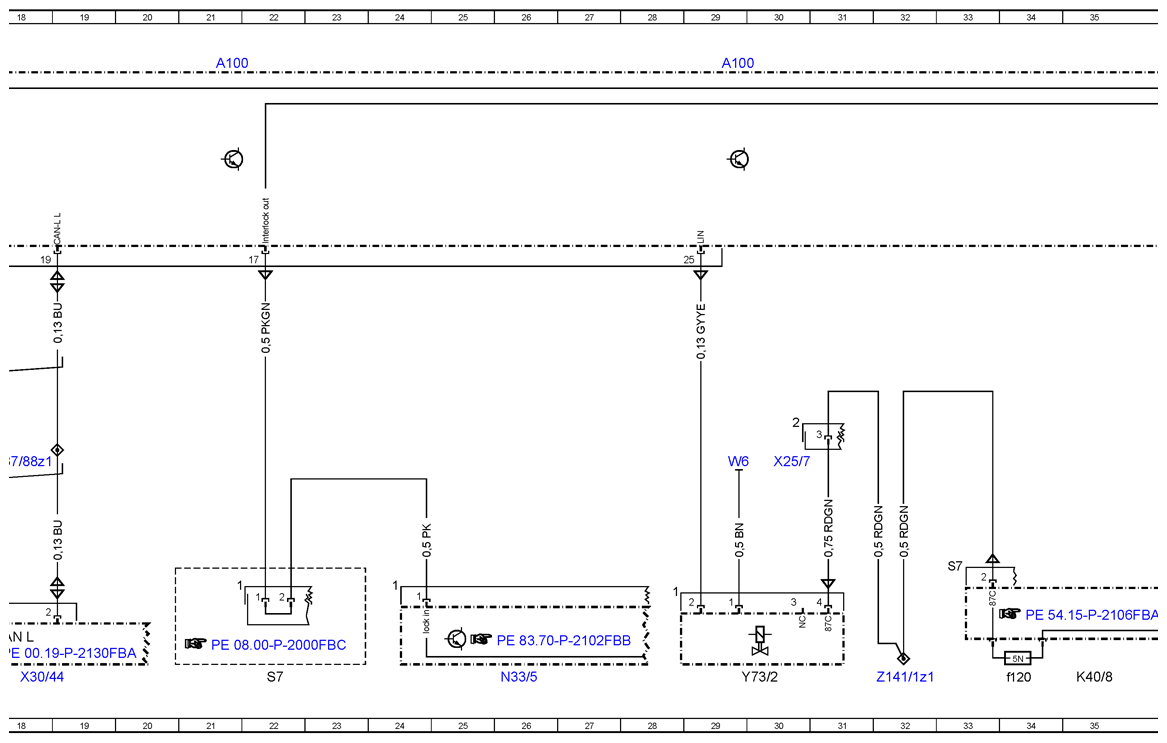

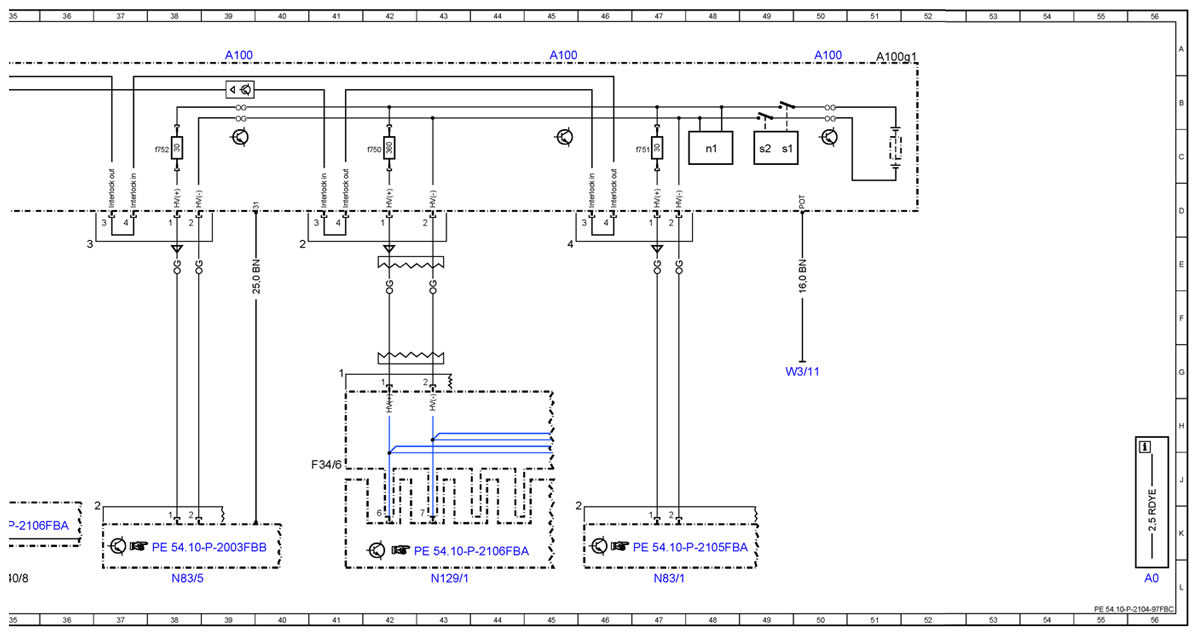

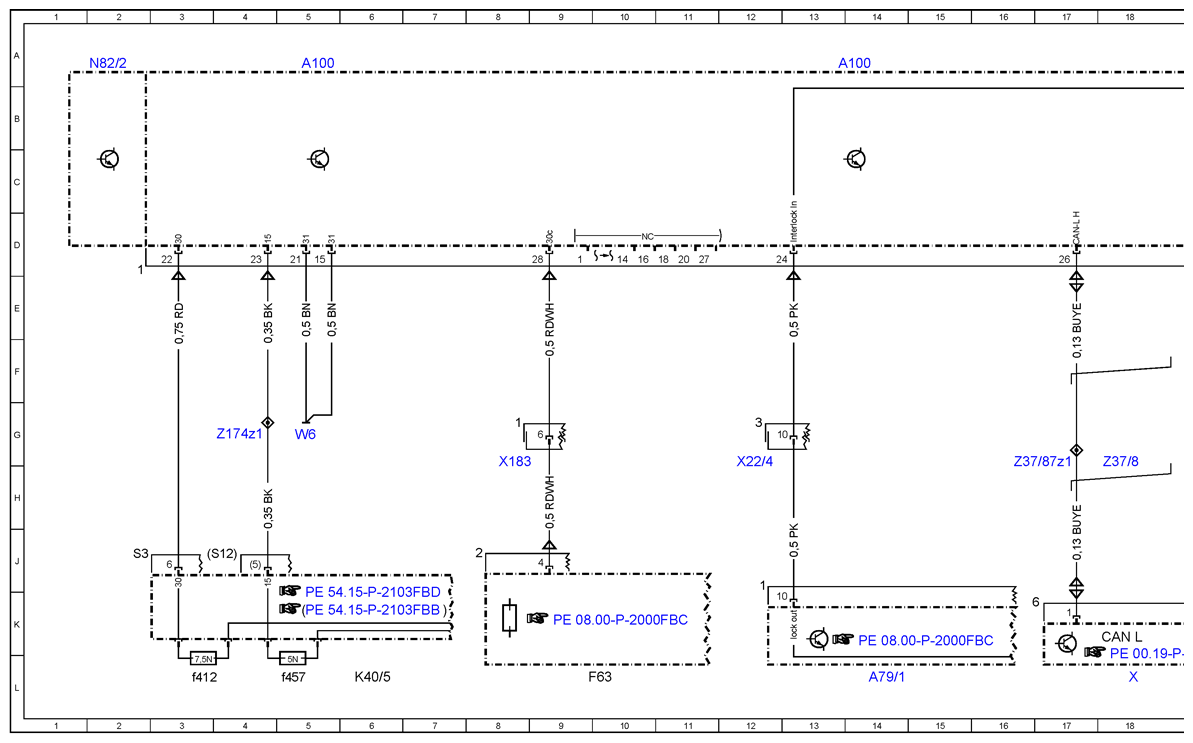

Wiring Diagram For Battery Management Control Unit - PE54.10-P-2104-97FBC
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2023 Mercedes-Benz GLC43 AMG, 2022 Mercedes-Benz GLC43 AMG, 2021 Mercedes-Benz GLC63 S AMG, 2021 Mercedes-Benz GLC63 AMG, and 2021 Mercedes-Benz GLC43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99) up to model year 2020 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A100 | High-voltage battery module | 5A |
| A100 | High-voltage battery module | 14A |
| A100 | High-voltage battery module | 21A |
| A100 | High-voltage battery module | 29A |
| A100 | High-voltage battery module | 39A |
| A100 | High-voltage battery module | 45A |
| A100 | High-voltage battery module | 50A |
| A100f750 | Electrical fuse 750 | 42C |
| A100f751 | Electrical fuse 751 | 47C |
| A100f752 | Electrical fuse 752 | 38C |
| A100g1 | High-voltage battery | 51A |
| A100n1 | High-voltage on-board electrical system insulation monitoring control unit | 48C |
| A100s1 | Contactor | 49C |
| A100s2 | Contactor | 49C |
| A79/1 | Electric machine | 14L |
| CAN L | Hybrid CAN | 18K |
| F34/6 | High-voltage distributor plate | 41J |
| F63 | Pyrofuse | 10L |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5f412 | Fuse 412 | 3L |
| K40/5f457 | Fuse 457 | 5L |
| K40/8 | Engine fuse and relay module | 35L |
| K40/8f120 | Fuse 120 | 34L |
| N129/1 | Power electronics control unit | 43L |
| N33/5 | High-voltage PTC heater | 26L |
| N82/2 | Battery management system control unit | 2A |
| N83/1 | DC/DC converter control unit | 47L |
| N83/5 | Charger | 38L |
| S7 | High-voltage disconnect device | 22L |
| W3/11 | Left rear wheel well ground point | 50G |
| W6 | Left wheel arch trunk ground point | 5G |
| W6 | Left wheel arch trunk ground point | 29H |
| X183 | Pyrotechnical separator electrical connector | 8H |
| X22/4 | Transmission/frame floor assembly connecting point | 12H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 30H |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 18L |
| Y73/2 | Low-temperature circuit switchover valve 2 | 30L |
| Z141/1z1 | Circuit 87 C1 connector sleeve | 32L |
| Z174z1 | Circuit 15 and circuit 87 DC/DC converter connector sleeve | 4G |
| Z37/87z1 | Hybrid CAN (high) connector sleeve | 17H |
| Z37/88z1 | Hybrid CAN (low) connector sleeve | 18H |
