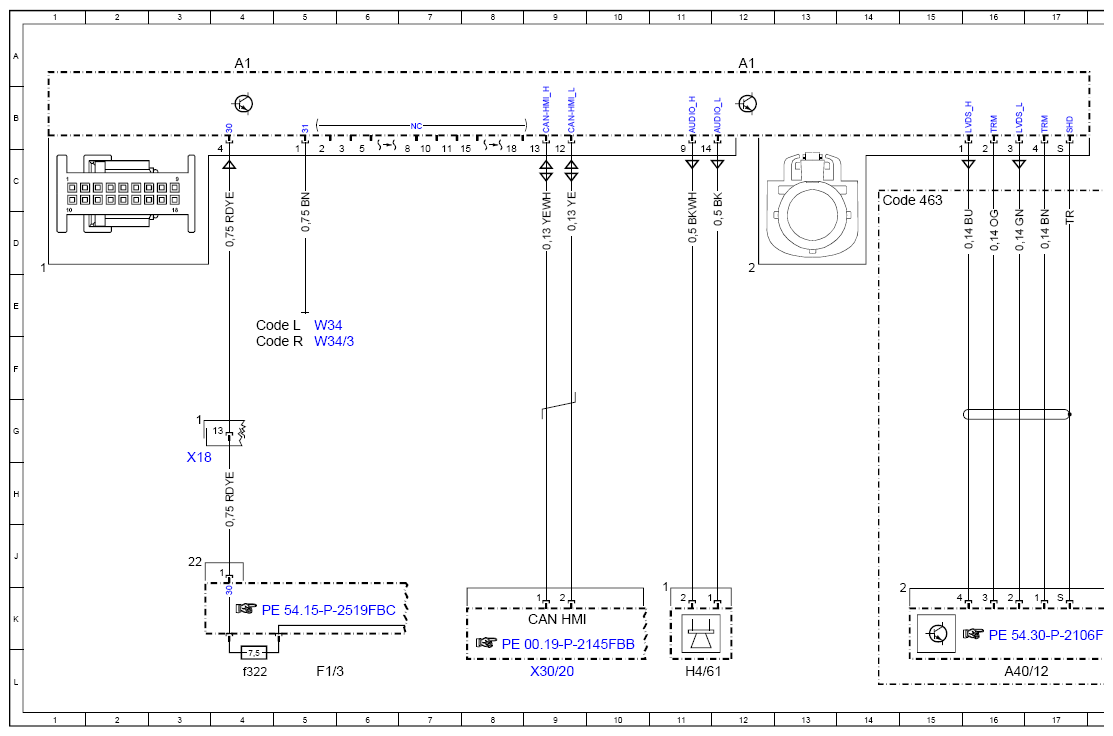

Wiring Diagram For Instrument Cluster (IC) Control Unit - PE54.30-P-2101-97FBB
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 as of model year 2019 Entry instrument cluster
| Code: | Designation: | Position: |
|---|---|---|

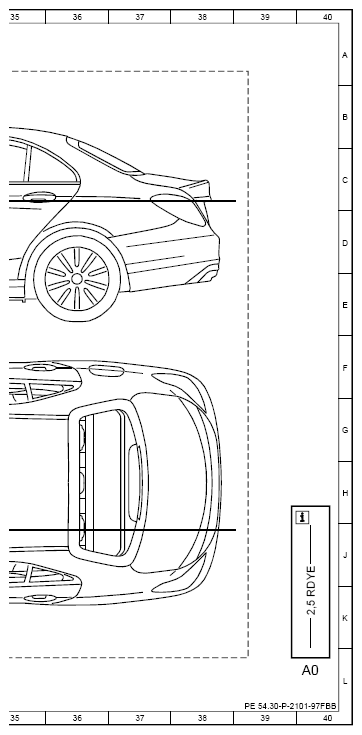

| A0 | Use of wiring diagrams | 40L |

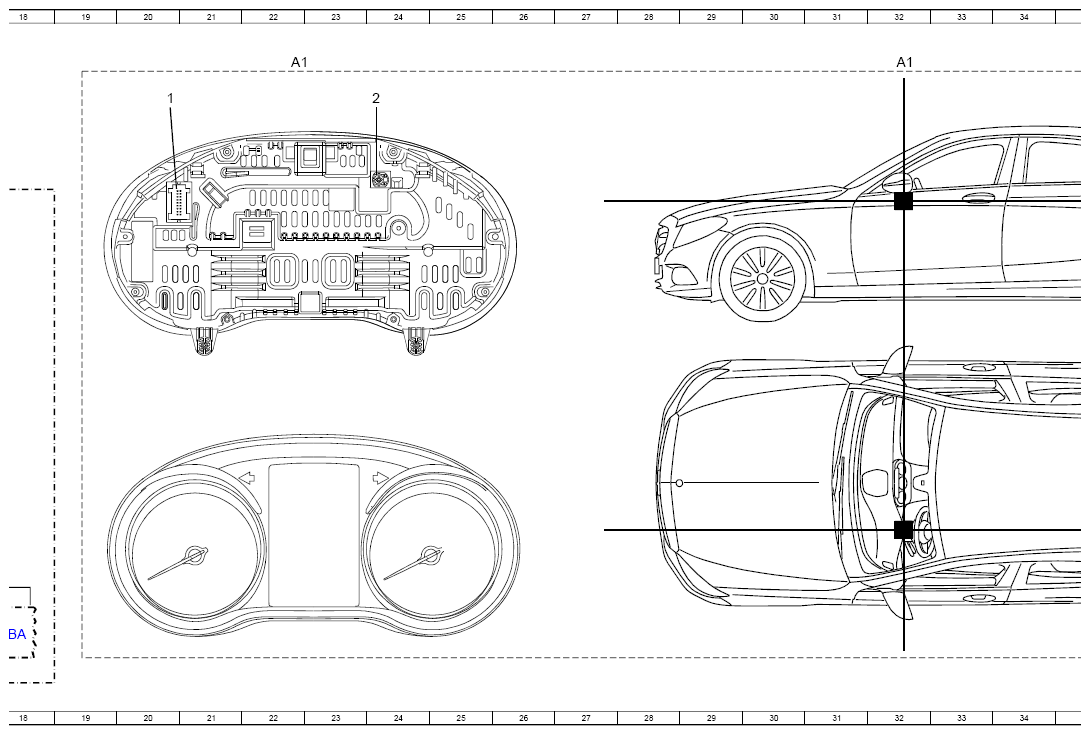

| A1 | Instrument cluster | 4A |
| A1 | Instrument cluster | 12A |
| A1 | Instrument cluster | 22A |
| A1 | Instrument cluster | 32A |
| A40/12 | Head-up display | 16L |
| CAN HMI | User interface CAN | 9K |
| Code 463 | Head-up display | 14C |
| Code L | LEFT-HAND DRIVE | 4E |
| Code R | RIGHT-HAND DRIVE | 4F |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3f322 | Fuse 322 | 4L |
| H4/61 | Instrument cluster speaker | 11L |
| W34 | Left footwell ground point | 5E |
| W34/3 | Right footwell ground point | 5F |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 3H |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 9L |
