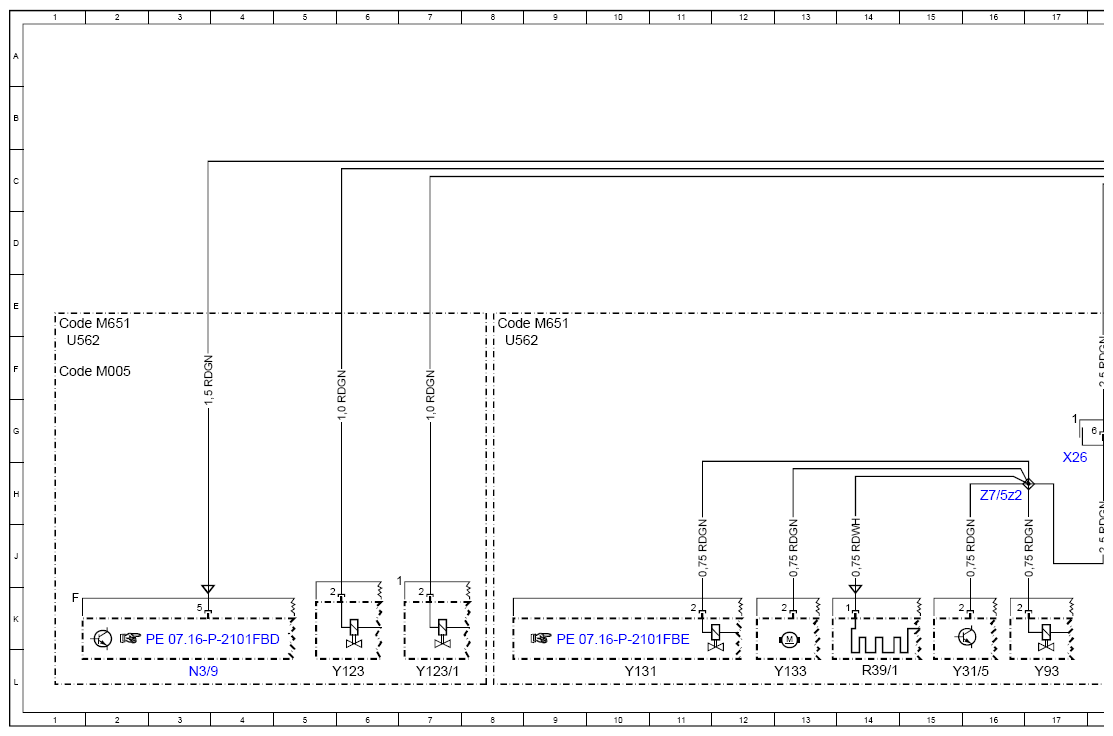

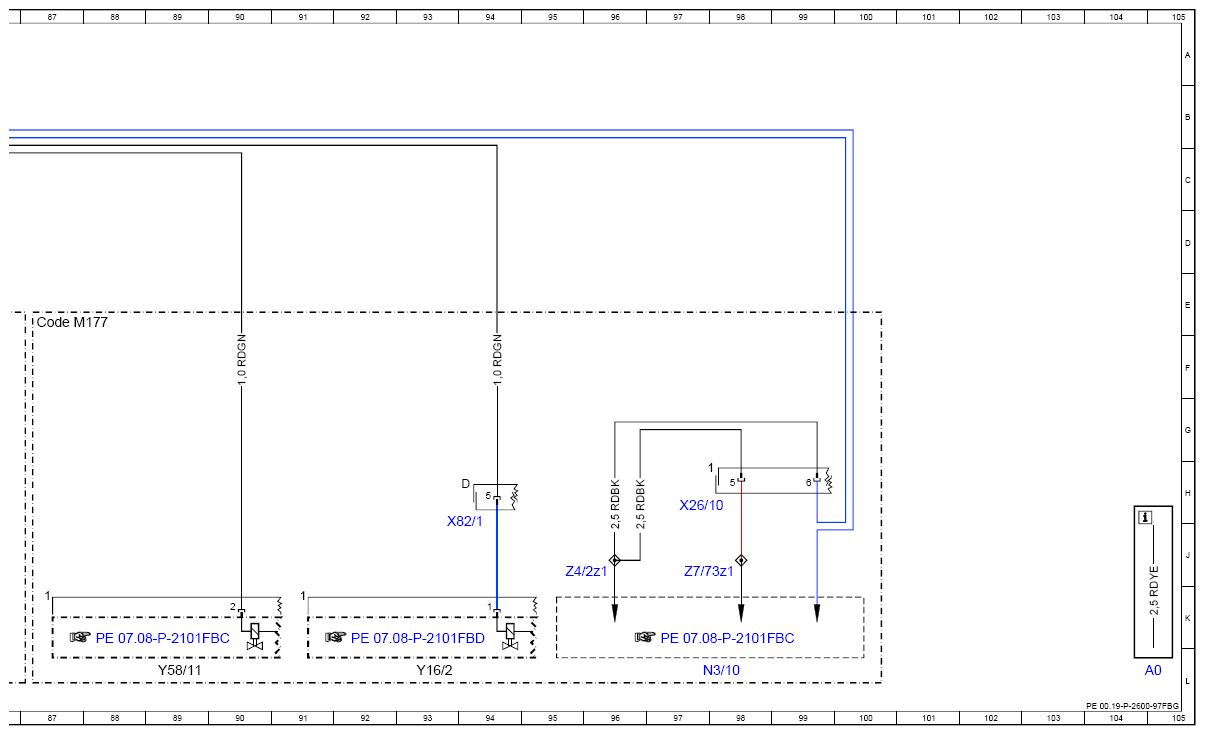

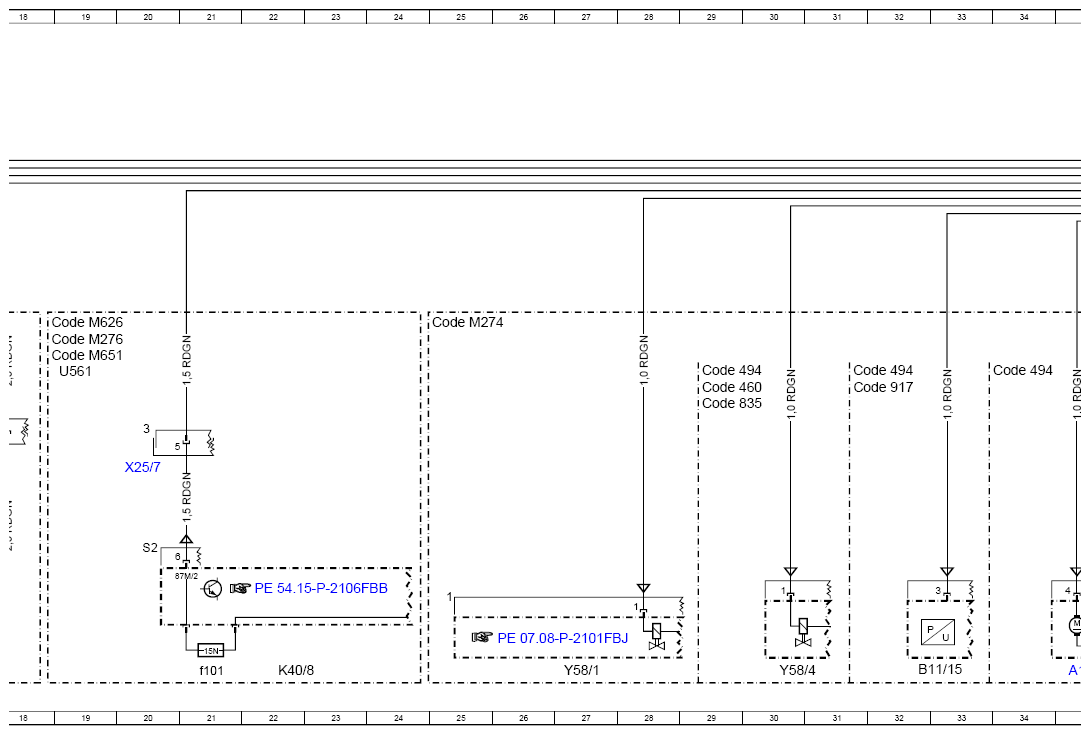

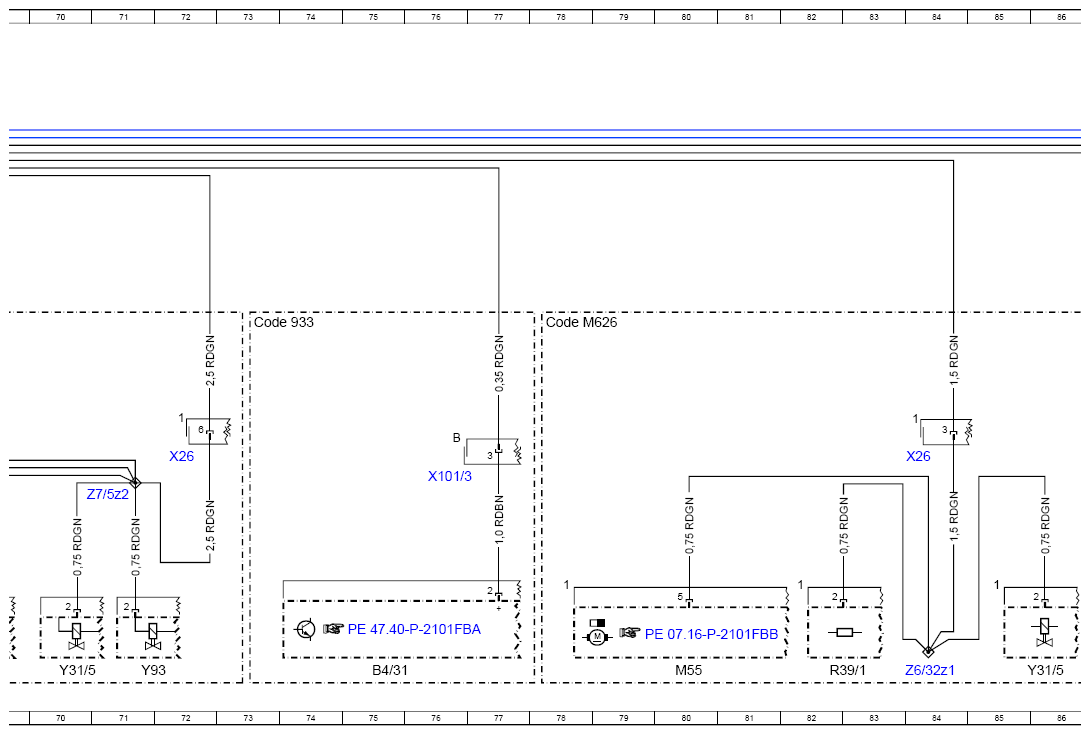

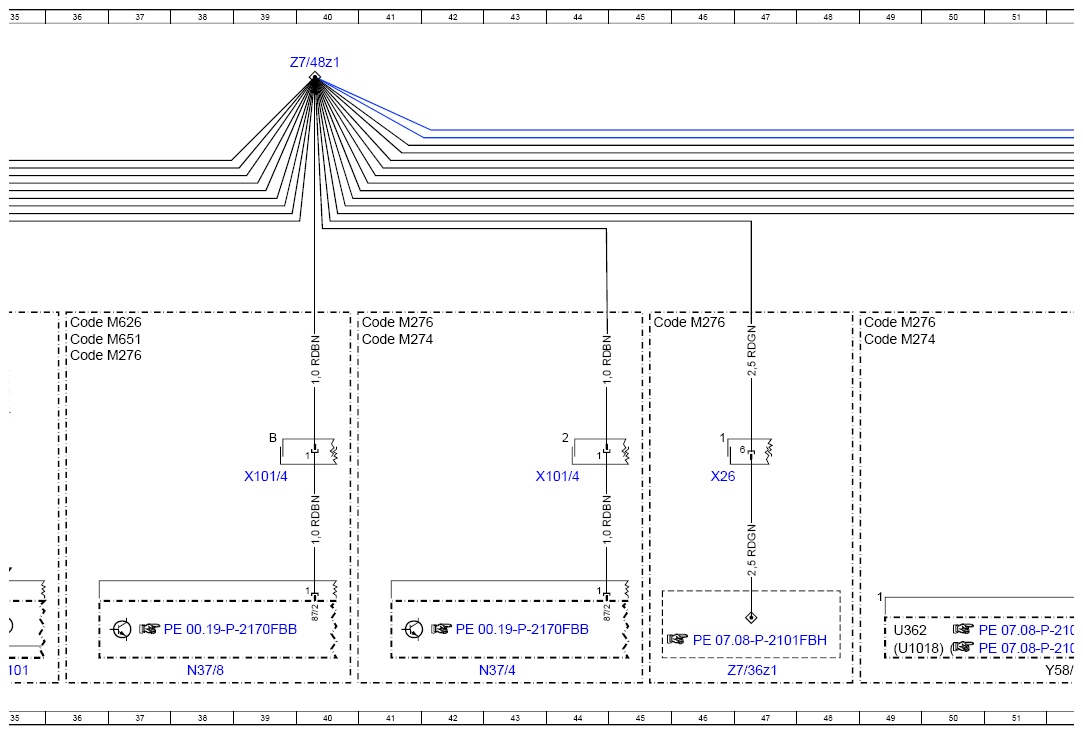

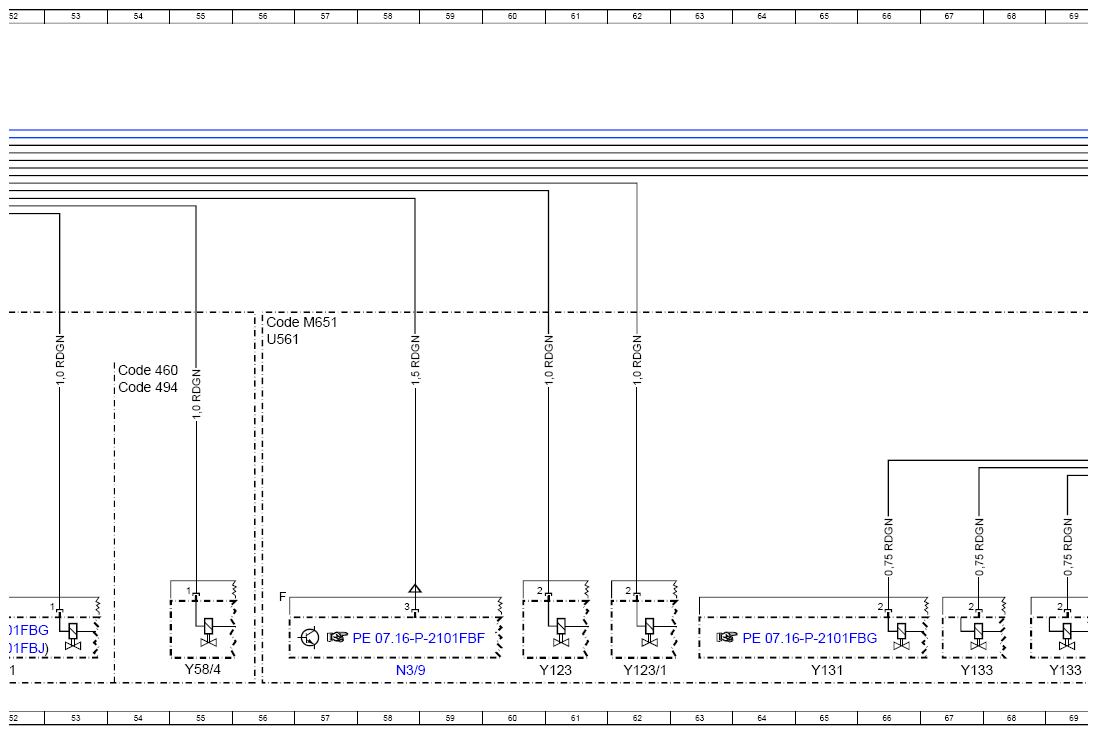

Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97FBH
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019 Z7/5z3, Z7/73z1, Z81/5z1
Model 253 (except 253.99) up to model year 2020 Z7/5z3, Z7/73z1, Z81/5z1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| Code 460 | Canada version | 47F |
| Code 494 | USA version | 47F |
| Code M177 | Spark-Ignition Engine M177 | 22F |
| Code M177 | Spark-Ignition Engine M177 | 51E |
| Code M274 | Spark-Ignition Engine M274 | 22E |
| Code M274 | Spark-Ignition Engine M274 | 33E |
| Code M276 | Spark-Ignition Engine M276 | 22F |
| Code M276 | Spark-Ignition Engine M276 | 27E |
| Code M626 | Diesel Engine OM626 | 38E |
| Code M642 | Diesel Engine OM642 | 38F |
| Code M651 | Diesel Engine OM651 | 1E |
| Code M651 | Diesel Engine OM651 | 5E |
| Code M651 | Diesel Engine OM651 | 22F |
| Code M651 | Diesel Engine OM651 | 38F |
| Code M651 | Diesel Engine OM651 | 42E |
| Code M651 | Diesel Engine OM651 | 47E |
| F96/1 | Exhaust flaps circuit 87 fuses | 64L |
| G3/2 | Oxygen sensor upstream of catalytic converter | 44L |
| G3/2x1 | Electrical connector for oxygen sensor upstream of catalytic converter | 45K |
| K40/8 | Engine fuse and relay module | 8L |
| K40/8 | Engine fuse and relay module | 25L |
| K40/8f103 | Fuse 103 | 23L |
| K40/8f104 | Fuse 104 | 7L |
| M16/53 | Left exhaust flap actuator motor | 56L |
| M16/54 | Right exhaust flap actuator motor | 57L |
| N10/6 | Front SAM control unit | 74L |
| N14/3 | Glow output stage | 19L |
| N3/10 | ME-SFI [ME] control unit | 29L |
| N3/10 | ME-SFI [ME] control unit | 35L |
| N3/10 | ME-SFI [ME] control unit | 53L |
| N33/3 | Catalytic converter heater control unit | 49L |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 40L |
| R39/1 | Vent line heater element | 16L |
| R48 | Coolant thermostat heating element | 13L |
| S1 | Exterior lights switch | 79L |
| S1s10 | Rear fog light button | 77J |
| S1s8 | Headlamp range controller | 80K |
| S76/15 | Electric parking brake switch | 69L |
| S76/15 | Electric parking brake switch | 69L |
| U561 | Valid for Delphi system | 42F |
| U562 | Valid for Bosch system | 1F |
| U562 | Valid for Bosch system | 5F |
| X101/2 | Right front frame floor assembly/underfloor electrical connector | 41H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 6H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 23H |
| X26 | Interior and engine wiring harness electrical connector | 9H |
| X26/10 | Vehicle interior/engine electrical connector | 53H |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 60H |
| X86 | Exhaust flap electrical connector | 57H |
| X86 | Exhaust flap electrical connector | 56H |
| Y85 | Exhaust gas recirculation cooler bypass switchover valve | 3L |
| Y93 | Exhaust flap switchover valve | 15L |
| Z195 | Exhaust flap terminal 87/4 connector sleeve | 60L |
| Z4/2z1 | Terminal 87/4 | 53J |
| Z7/5z3 | Circuit 87 connector sleeve | 14A |
| Z7/73z1 | Circuit 87/4 connector sleeve | 41A |
| Z81/5z1 | Circuit 58d connector sleeve | 71A |
