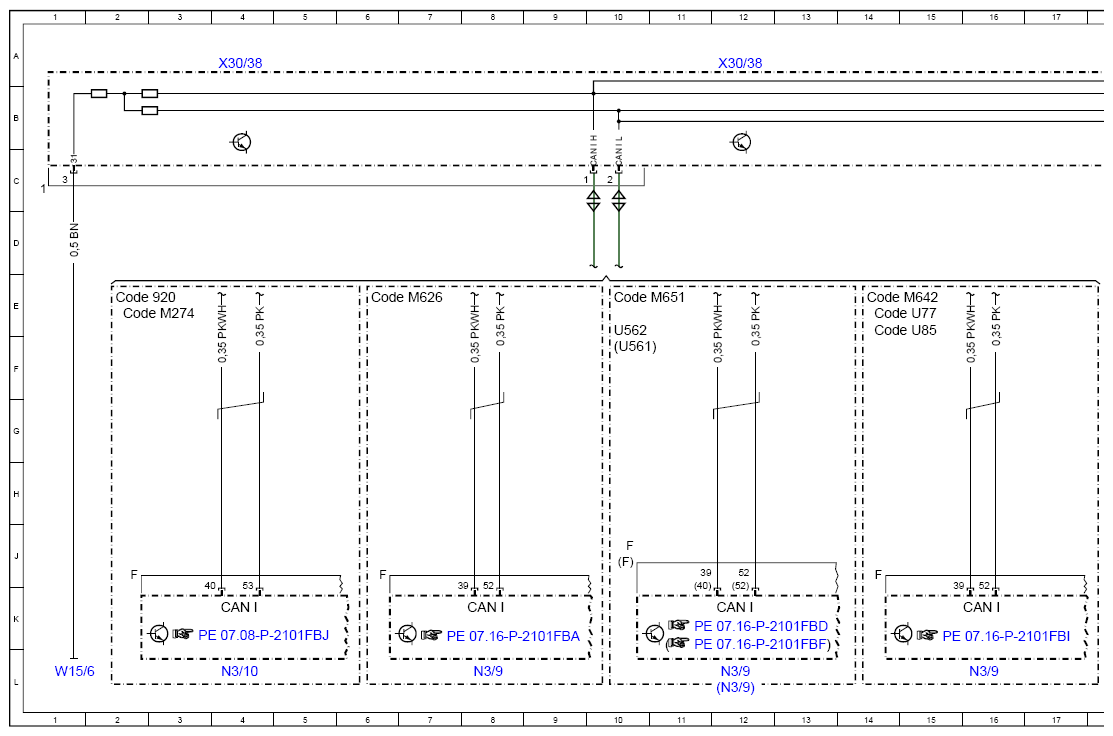

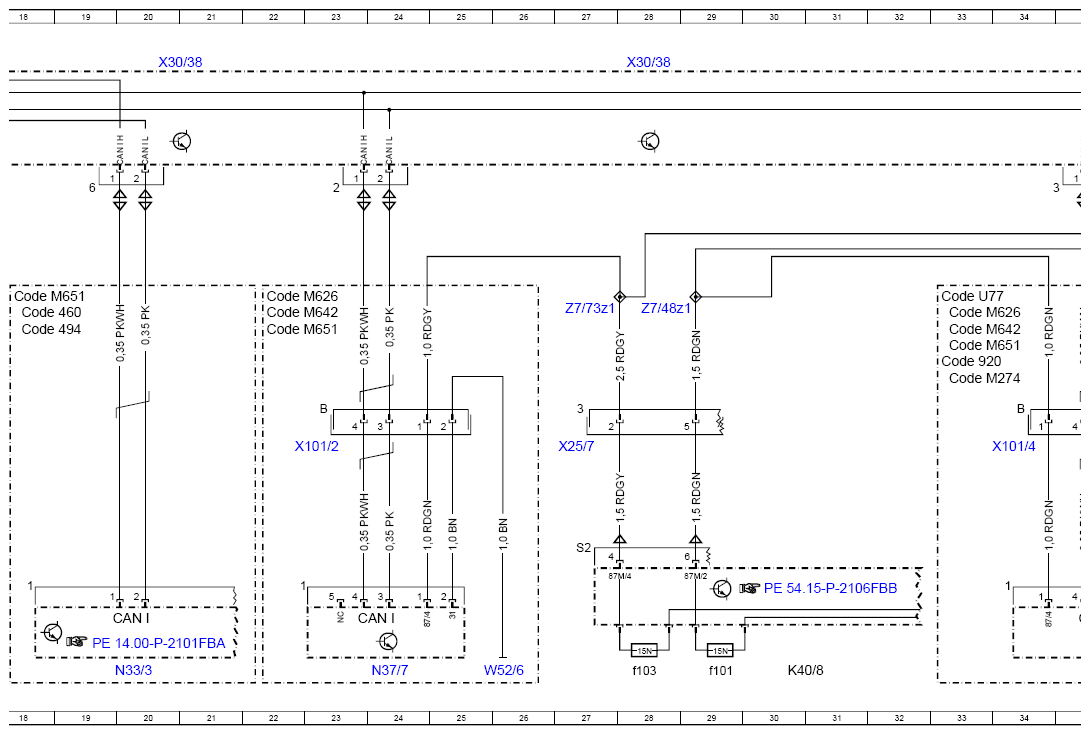

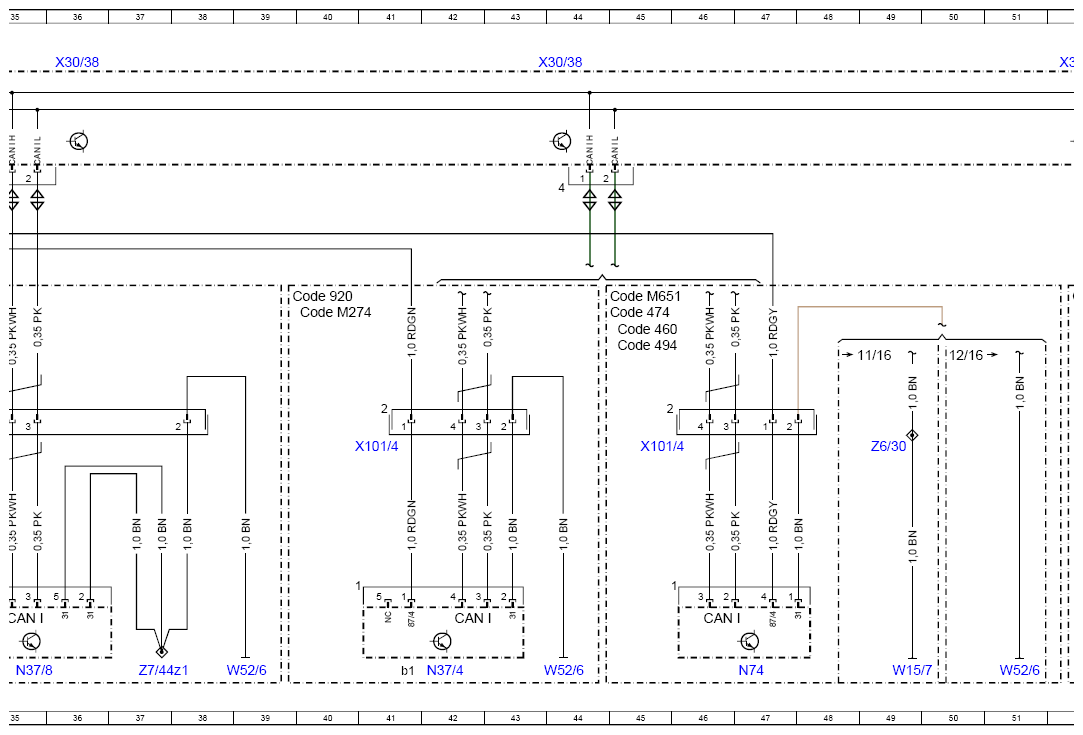

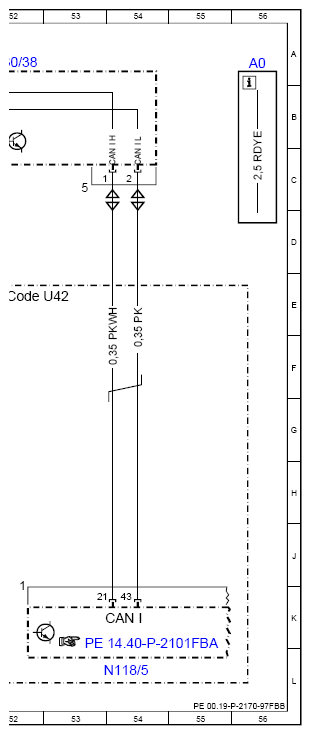

Wiring Diagram Of Drivetrain CAN - PE00.19-P-2170-97FBB
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 up to model year 2019
Potential distributor X30/38
Model 253 (except 253.99) up to model year 2020
Potential distributor X30/38
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56A |
| CAN I | Drivetrain sensor CAN | 4K |
| CAN I | Drivetrain sensor CAN | 8K |
| CAN I | Drivetrain sensor CAN | 16K |
| CAN I | Drivetrain sensor CAN | 12K |
| CAN I | Drivetrain sensor CAN | 20K |
| CAN I | Drivetrain sensor CAN | 24K |
| CAN I | Drivetrain sensor CAN | 46K |
| CAN I | Drivetrain sensor CAN | 35K |
| CAN I | Drivetrain sensor CAN | 42K |
| CAN I | Drivetrain sensor CAN | 54K |
| Code 460 | Canada version | 18E |
| Code 460 | Canada version | 45E |
| Code 474 | Diesel particulate filter | 45E |
| Code 494 | USA version | 18E |
| Code 494 | USA version | 45F |
| Code 920 | Gasoline direct injection with stratified charge | 2E |
| Code 920 | Gasoline direct injection with stratified charge | 33F |
| Code 920 | Gasoline direct injection with stratified charge | 39E |
| Code M274 | Spark-Ignition Engine M274 | 2E |
| Code M274 | Spark-Ignition Engine M274 | 33F |
| Code M274 | Spark-Ignition Engine M274 | 40E |
| Code M626 | Diesel Engine OM626 | 6E |
| Code M626 | Diesel Engine OM626 | 22E |
| Code M626 | Diesel Engine OM626 | 33E |
| Code M642 | Diesel Engine OM642 | 14E |
| Code M642 | Diesel Engine OM642 | 22E |
| Code M642 | Diesel Engine OM642 | 33E |
| Code M651 | Diesel Engine OM651 | 10E |
| Code M651 | Diesel Engine OM651 | 18E |
| Code M651 | Diesel Engine OM651 | 22E |
| Code M651 | Diesel Engine OM651 | 33F |
| Code M651 | Diesel Engine OM651 | 45E |
| Code U42 | BlueTEC diesel exhaust treatment | 52E |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 14E |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 33E |
| Code U85 | AdBlue® tank | 14E |
| K40/8 | Engine fuse and relay module | 30L |
| K40/8f101 | Fuse 101 | 29L |
| K40/8f103 | Fuse 103 | 28L |
| N118/5 | AdBlue® control unit | 54L |
| N3/10 | ME-SFI [ME] control unit | 4L |
| N3/9 | CDI control unit | 8L |
| N3/9 | CDI control unit | 12L |
| N3/9 | CDI control unit | 12L |
| N3/9 | CDI control unit | 16L |
| N33/3 | Catalytic converter heater control unit | 20L |
| N37/4 | NOx sensor control unit | 42L |
| N37/4b1 | NOx sensor | 41L |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 24L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 35L |
| N74 | Soot particulate sensor control unit | 47L |
| U561 | Valid for Delphi system | 10F |
| U562 | Valid for Bosch system | 10E |
| W15/6 | Left front footwell ground point (CAN) | 1L |
| W15/7 | Right front footwell ground point | 49L |
| W52/6 | Right center longitudinal member ground point | 26L |
| W52/6 | Right center longitudinal member ground point | 39L |
| W52/6 | Right center longitudinal member ground point | 44L |
| W52/6 | Right center longitudinal member ground point | 51L |
| X101/2 | Right front frame floor assembly/underfloor electrical connector | 23G |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 34G |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 41G |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 45G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 27G |
| X30/38 | Drivetrain sensor CAN (CAN I) potential distributor electrical connector | 4A |
| X30/38 | Drivetrain sensor CAN (CAN I) potential distributor electrical connector | 12A |
| X30/38 | Drivetrain sensor CAN (CAN I) potential distributor electrical connector | 20A |
| X30/38 | Drivetrain sensor CAN (CAN I) potential distributor electrical connector | 28A |
| X30/38 | Drivetrain sensor CAN (CAN I) potential distributor electrical connector | 36A |
| X30/38 | Drivetrain sensor CAN (CAN I) potential distributor electrical connector | 44A |
| X30/38 | Drivetrain sensor CAN (CAN I) potential distributor electrical connector | 52A |
| Z6/30 | Circuit 31 connector sleeve | 49G |
| Z7/44z1 | Sensor ground connector sleeve | 37L |
| Z7/48z1 | Circuit 87/2 connector sleeve | 28E |
| Z7/73z1 | Circuit 87/4 connector sleeve | 27E |
