Windshield Washer System - inspect fluid level, adjust to correct level - AP82.35-P-8210CAA
WARNING: This page is about a different car, the 2023 Mercedes-Benz C300, 2022 Mercedes-Benz C300, 2021 Mercedes-Benz C300, 2020 Mercedes-Benz C300, and 2019 Mercedes-Benz C300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No fire, naked flames or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Filling | |||
| 1 | Open engine hood | ||

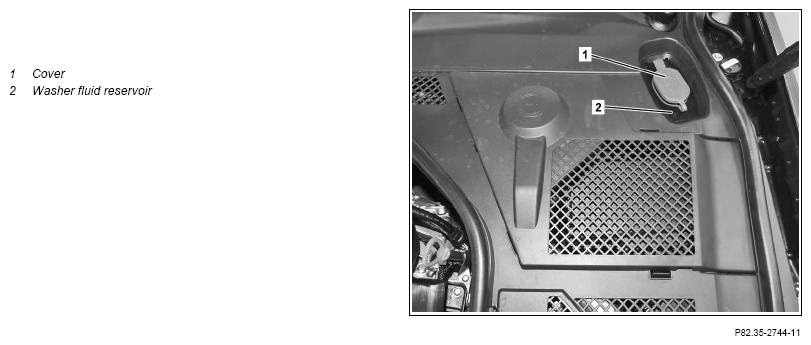

| 2 | Remove cover (1) and fill washer fluid reservoir (2) with washing water | ||
| 3 | Windshield washer fluid concentrate | ||
| Windshield washer fluid concentrate | BB00.40-P-0371-00A | ||
| 4 | Close washer fluid reservoir (2) with cover (1) | ||
| 5 | Close engine hood |
