4Matic Transfer Case, Function - GF28.10-P-1000AVL
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213 with transmission 725.096 up to model year 2021

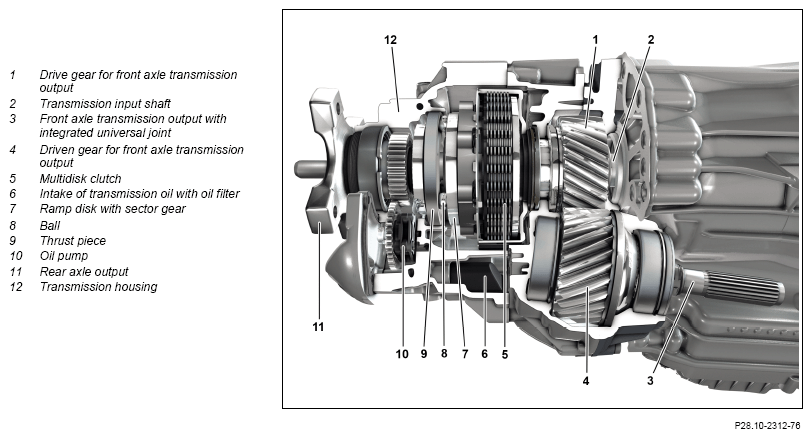

Sectional view of transfer case
4MATIC transfer case, general
The transfer case is mounted onto the transmission housing. What makes it so special is its single-speed front axle transmission output with integrated universal joint (3). Thanks to the single-speed design, a spur gear set with bearing mount is not required. This acts positively on efficiency, weight and the noise characteristics of the drive train.
| Overview of system components, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-9998AVL |
