Wiring Diagram For Drive Unit Control Unit - PE54.21-P-2128-97DBA
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213.088/089 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| CAN AMG | AMG CAN | 24K |
| CAN C1 | Drive train CAN | 12K |
| CAN MM] | User interface CAN | 16K |
| Code L | LEFT-HAND DRIVE | 3E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 32D |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 6D |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 23E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 36E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 32E |
| Code M40 | DISPLACEMENT 4.0 LITERS | 37E |
| Code R | RIGHT-HAND DRIVE | 3E |
| Flex E | Chassis FlexRay | 20K |
| Flex E | Chassis FlexRay | 34K |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5 | Rear fuse and relay module | 9L |
| K40/5 | Rear fuse and relay module | 39L |
| K40/5f459 | Fuse 459 | 8L |
| K40/5f464 | Fuse 464 | 2L |
| K40/5kS | Reserve solenoid switch | 38L |
| K40/8 | Engine fuse and relay module | 29L |

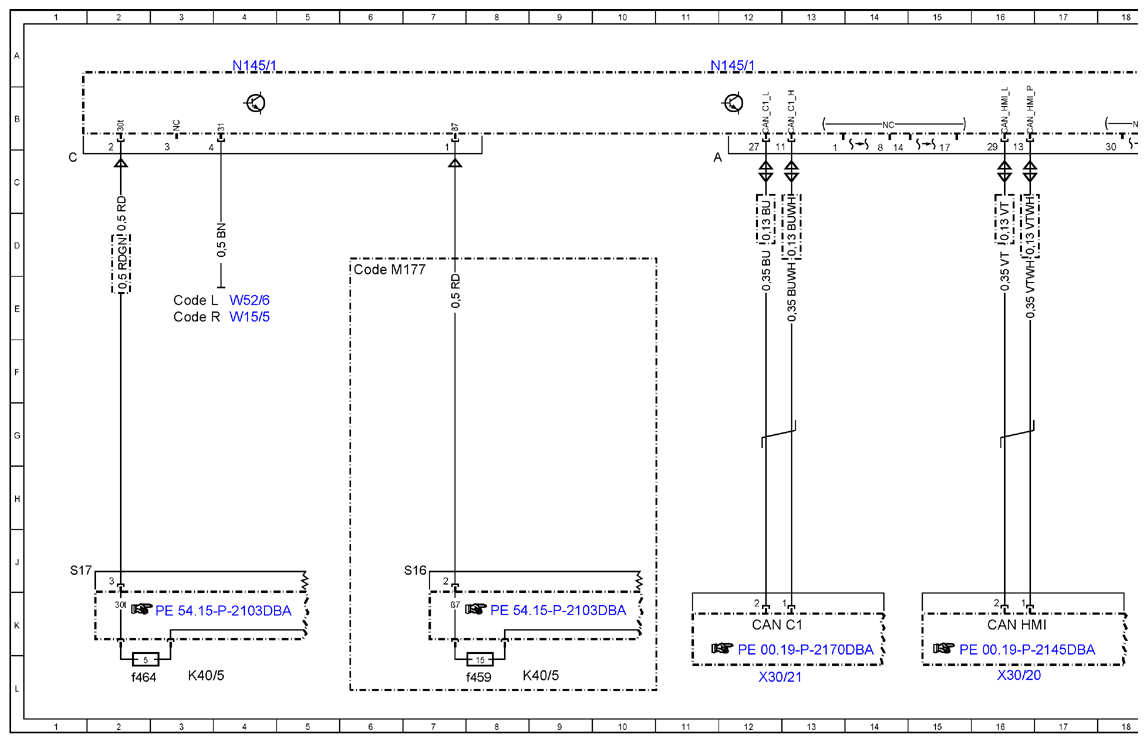

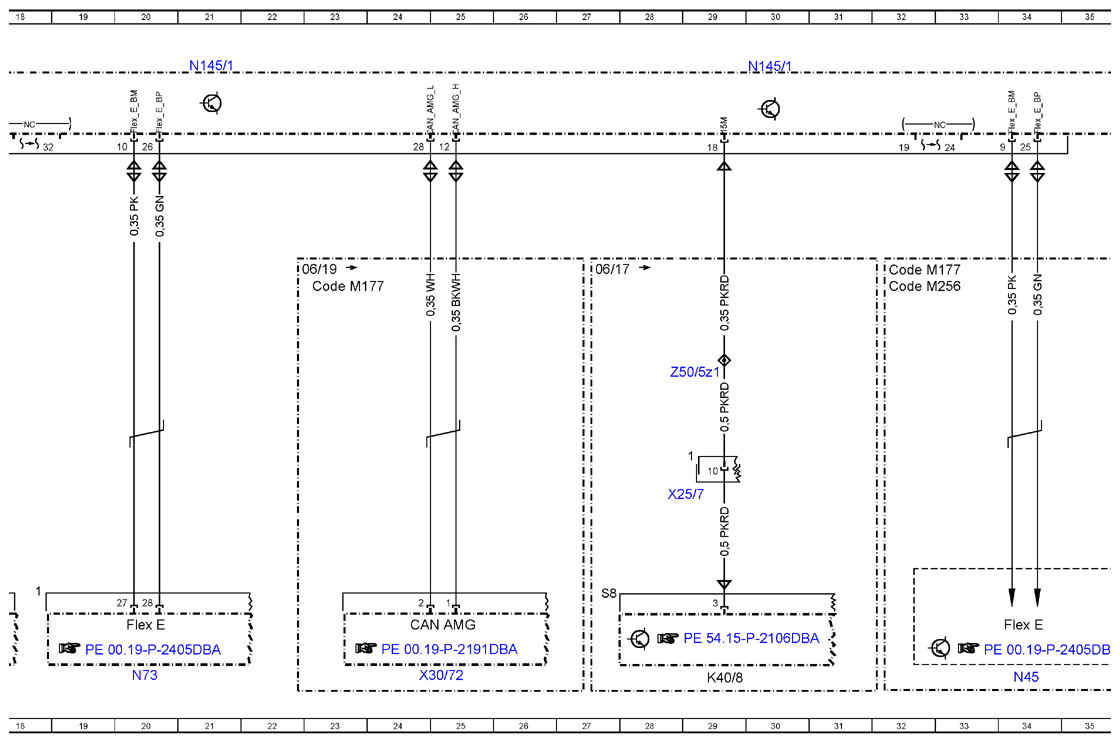

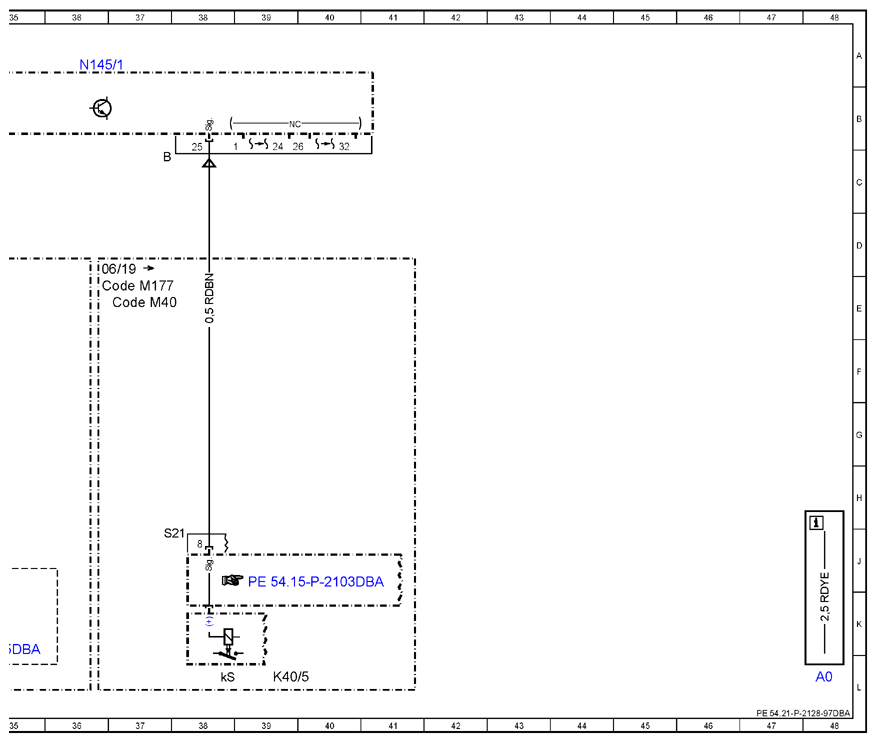

| N145/1 | Drive unit control unit | 4A |
| N145/1 | Drive unit control unit | 21A |
| N145/1 | Drive unit control unit | 36A |
| N145/1 | Drive unit control unit | 30A |
| N145/1 | Drive unit control unit | 12A |
| N45 | All-wheel drive control unit | 34L |
| N73 | Electronic ignition switch control unit | 20L |
| W15/5 | Left front footwell ground point | 4E |
| W52/6 | Right center longitudinal member ground point | 4E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 29H |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 16L |
| X30/21 | Drive train CAN (CAN CD potential distributor electrical connector | 12L |
| X30/72 | AMG CAN potential distributor electrical connector | 25L |
| Z50/5z1 | Tml. 15 connector sleeve | 29F |
