Powertrain Control Unit, Basic Function - GF54.21-P-9894A
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Engine all (CAR)

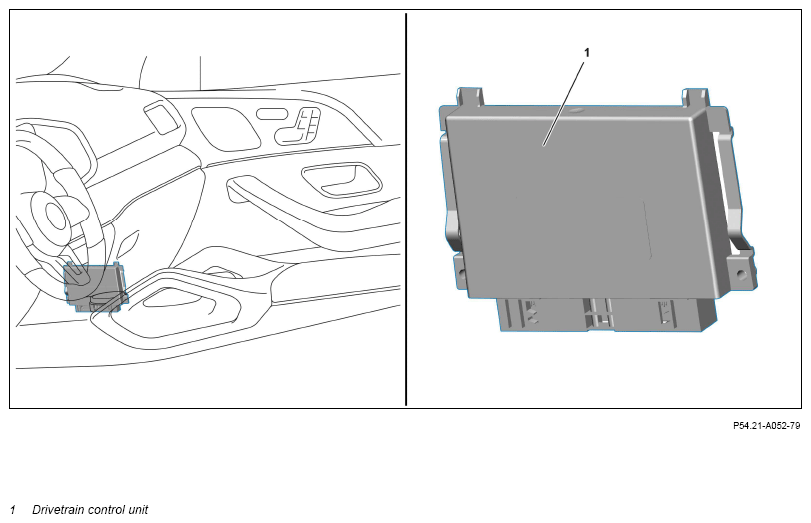

Example illustration of model 167
Overview
This document contains information on:
- General
- Function
General
The powertrain control unit serves as an interface (gateway) between the combustion engine control unit, the ESP® control unit and the connected bus systems.
Function
The powertrain control unit primarily intervenes in the following functions:
- Engine management
- Heat management
In order to carry out these functions, the powertrain control unit primarily processes the following input factors:
- Engine management ON (circuit 87)
- Charge air cooler coolant temperature
- Fan motor status
- Accelerator pedal sensor
- Start/stop button
- With manual transmission: Clutch travel sensor
- With manual transmission: Main shifter shaft position sensor
The powertrain control unit processes these input factors and controls the following actuators depending on the engine variants:
- Exhaust flap controller
- Fan motor
- Radiator trim flap actuator motor
- Transmission oil cooling coolant circulation pump
- Charge air cooler circulation pump
- Coolant pump switchover valve
| Components | |||
| Charge air cooler coolant temperature sensor, basic function | Engine 608, 654, 656 | GF07.04-P-2007A | |
| Accelerator pedal sensor, basic function | Engine all (CAR) | GF30.20-P-2000A |
