Remove/Install Front Speed Sensor - AR42.30-P-0713LWA
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model 213.061/261
Model 238.361/461
Model 257.361
Shown on right side of vehicle

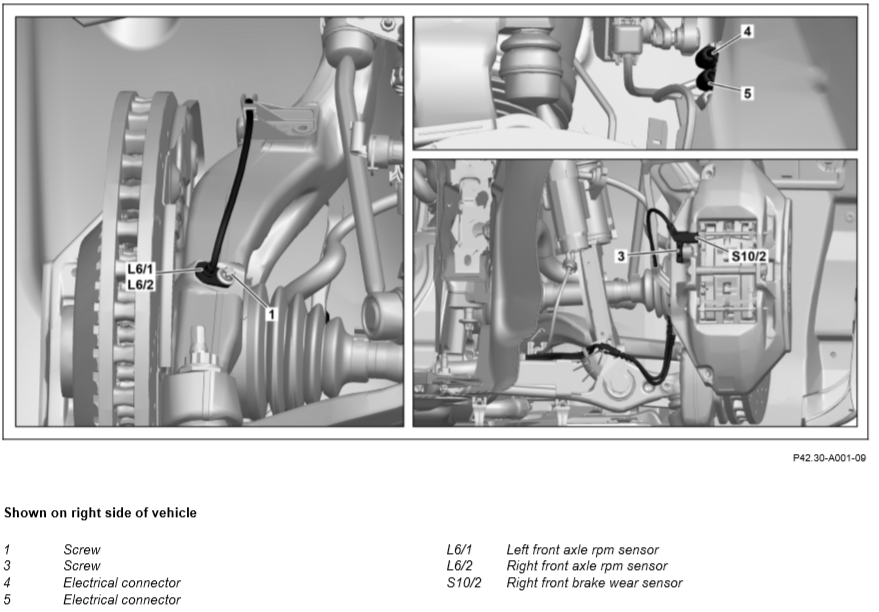

Fig 1: Front Left /Right RPM/Wheel Speed Sensor Components Location - Model 213.061/261 (Shown On Right Side)
| Risk of injury through cuts or scrapes on sharp-edged vehicle parts | Always wear protective gloves when working on or near sharp, unburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components through electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Raise vehicle. | AR00.60-P-1006A | |
| 2 | Remove screw (1). | *BA42.30-P-1001-01K | |
| 3 | Pull left front axle speed sensor (L6/1) or right front axle speed sensor (L6/2) out of steering knuckle | ||
| 4 | Unlock and disconnect electrical connector, front right brake pad wear sensor (S10 / 2). | Only when working on the right-hand side of the vehicle. | |
| 5 | Remove the bolt (3). | Only when working on the right-hand side of the vehicle. |
*BA42.10-P-1002-10X |
| 6 | Unclip electrical wiring harness from guides. | Fig 2 | |
| 7 | Release fender liner until electrical connectors (4, 5) are accessible | Model 257.361 | AR88.10-P-1301FR |
| Model 213.061/261 Model 238.361/461 |
AR88.10-P-1300LWE | ||
| 8 | Release and disconnect electrical connector (4) | ||
| 9 | Release and disconnect electrical connector (5) | Only for work on right side of vehicle. | |
| 10 | Remove left front axle rotational speed sensor (L6/1) or right front axle rotational speed sensor (L6/2). | ||
| 11 | Install in reverse order. | ||
| 12 | Read out fault memory using vehicle diagnosis system; delete fault memory if necessary | ||
| Model 213.061/261 | AD00.00-P-2000-04B | ||
| Model 257.361 | AD00.00-P-2000-06FR | ||
| Model 238.361/461 | AD00.00-P-2000-06LWO |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 213.061/261 | Model 238.361/461 | |
|---|---|---|---|---|
| BA42.10-P-1002-10X | Bolt, brake wear sensor to brake caliper | Nm | 8 | 8 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | Model 257.361 | |
|---|---|---|---|
| BA42.10-P-1002-10X | Bolt, brake wear sensor to brake caliper | Nm | 8 |
FRONT AXLE SPEED SENSOR
| Number | Designation | Model 213 | Model 238 | ||
|---|---|---|---|---|---|
| BA42.30-P-1001-01K | Bolt speed sensor to steering knuckle | M6 | Nm | 8 | 8 |
FRONT AXLE SPEED SENSOR
| Number | Designation | Model 257 | ||
|---|---|---|---|---|
| BA42.30-P-1001-01K | Bolt speed sensor to steering knuckle | M6 | Nm | 8 |
