Remove/Install Front Axle Brake Caliper - AR42.10-P-0070LW

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

Model 205, 213, 253

1-piston floating caliper brake

MODIFICATION NOTES

28.04.2017 Removal of brake hose added. Operation step 1

Shown on model 205 except code 489 (AIRmatic)

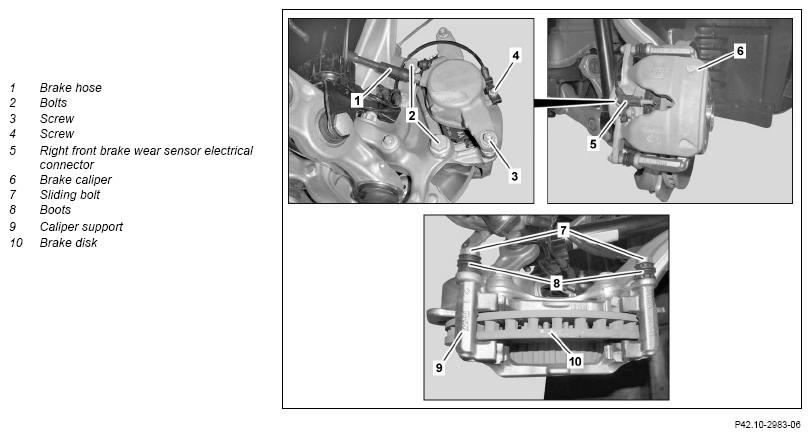

Fig 1: Front Axle Brake Caliper Components Location - Model 213 1-Piston Floating Type
G13746444Courtesy of MERCEDES-BENZ USA
  Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. AS42.50-Z-0002-01A
CAUTION Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
  Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Brake fluid notes   AH42.50-P-0001-01A
  Notes on repairs to brake system   AH42.00-P-0003-01A
REMOVINGINSTALLING Remove/install
1 Remove brake hose (1)   AR42.10-P-0013LW
2 Unscrew screw/bolt (4) and remove right front brake wear sensor electrical connector (5) When removing brake caliper (6) on right side of vehicle.
TORQUE SPECIFICATION Model 205
Model 253Bolt, brake wear sensor to brake caliper		 *BA42.10-P-1002-10W
TORQUE SPECIFICATION Model 213Bolt, brake wear sensor to brake caliper *BA42.10-P-1002-10X
3 Remove brake linings   AR42.10-P-1610LW
4 Remove bolt (3) and take-off brake caliper (6) TORQUE SPECIFICATION Model 205
Model 253Guide pin to brake caliper support or bolt for guide pin to brake caliper		 *BA42.10-P-1005-10W
TORQUE SPECIFICATION Model 213Guide pin to brake caliper support or bolt for guide pin to brake caliper *BA42.10-P-1004-10X
5 Unscrew screws/bolts (2) and remove brake caliper support (9) When replacing the brake caliper support (9).
TORQUE SPECIFICATION Model 205
Model 253Bolt, brake caliper/brake caliper support to steering knuckle		 *BA42.10-P-1001-10W
TORQUE SPECIFICATION Model 213Bolt, brake caliper/brake caliper support to steering knuckle *BA42.10-P-1001-10X
INSPECT Check
6 Check brake caliper (6) and dust boot at brake piston for leak tightness and damage If a problem arises
↓
Replace brake caliper (6).
INSTALLATION NOTES The new brake caliper (6) is shipped in prefilled condition and it must not be drained. Otherwise, the brake caliper (6) cannot be vented.
7 Check brake caliper support (9) for damage If a problem arises
↓
Replace brake caliper support (9).
8 Check brake caliper support (9) sliding bolts (7) for damage and ease of movement If a problem arises
↓
Replace brake caliper support (9).
9 Check boots (8) for damage If a problem arises
↓
Replace brake caliper support (9).
10 Check brake disk (10) for wear and condition
REFER TO MAINTENANCE   Model 205
except code B07 (Ceramic brake system)		 AP42.10-P-4258EW
Model 213, 253
If a problem arises
↓
Replace brake disks (10).		 AR42.10-P-0120LWG
IMPORTANT Only replace brake disks (10) as a set. AR42.10-P-0220EWE
11 Install in the reverse order
12 Bleed brake system Model 205, 253 AR42.10-P-0010LW
Model 213 AR42.10-P-0010LWE
13 Operate the brake pedal several times until brake linings (10) contact the brake disks IMPORTANT Firm resistance should be noticeable at the brake pedal.
INSPECT Check
14 Check and correct brake fluid level in expansion reservoir for brake fluid
REFER TO MAINTENANCE   Model 205 AP42.10-P-4210CAA
REFER TO MAINTENANCE   Model 213, 253 AP42.10-P-4210B
15 Carry out brake test on the test stand
REFER TO MAINTENANCE     AP42.00-P-4290BA
FRONT AXLE BRAKE CALIPER

Number Designation Model 205 Model 253
BA42.10-P-1001-10W Bolt, brake caliper/brake caliper support to steering knuckle M12   Nm 120 120
M14 Stage 1 Nm 80 80
Stage 2   45 45
FRONT AXLE BRAKE CALIPER

Number Designation Model 213 (except 213.061/261) Model 213.061/261
BA42.10-P-1001-10X Bolt, brake caliper/brake caliper support to steering knuckle M12   Nm 120
M14 Stage 1 Nm 80 150
Stage 2 4° 45 45
FRONT AXLE BRAKE CALIPER

Number Designation Model 205 Model 253
BA42.10-P-1002-10W Bolt, brake wear sensor to brake caliper Nm 8 8
FRONT AXLE BRAKE CALIPER

Number Designation Model 213 (except 213.061/261) Model 213.061/261
BA42.10-P-1002-10X Bolt, brake wear sensor to brake caliper Nm 8 8
FRONT AXLE BRAKE CALIPER

Number Designation Model 213 (except 213.061/261) Model 213.061/261
BA42.10-P-1004-10X Guide pin to brake caliper support or bolt for guide pin to brake caliper Nm 35 35
FRONT AXLE BRAKE CALIPER

Number Designation Model 205 Model 253
BA42.10-P-1005-10W Guide pin to brake caliper support or bolt for guide pin to brake caliper Nm 35 35
