Brake Light Switch, Basic Function - GF42.10-P-2001A
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
Model all (CAR)
Example illustration
Overview
This document contains information on:
- General
- Function
General

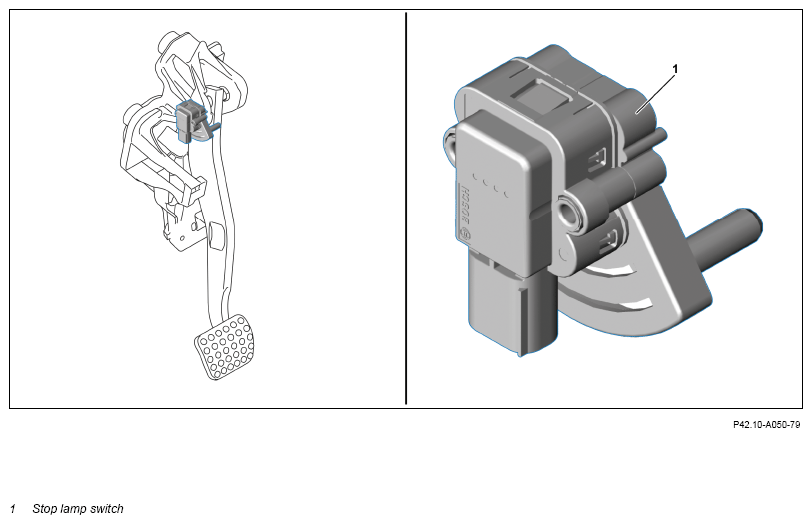

The brake light switch is located to the left of the brake pedal.
Function
The brake light switch consists of a shaft with ring magnet. The ring magnet rotates in a printed circuit board with stator in two fixed Hall elements. This produces a change in the voltage. The information about the brake pedal position is routed in the form of two signal voltages to the ESP® control unit.
