4Matic Front Axle Transmission, Function - GF33.10-P-3000AVL

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2023 Mercedes-Benz E63 S AMG, 2023 Mercedes-Benz E53 AMG, 2023 Mercedes-Benz E350, 2022 Mercedes-Benz E53 AMG, and 2022 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

Model 213 with transmission 725.096

up to model year 2021

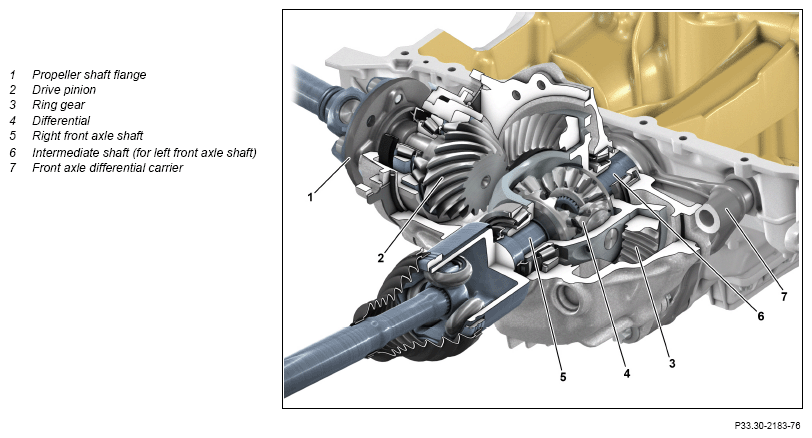

Sectional view of front axle transmission

Courtesy of MERCEDES-BENZ USA

Front axle transmission 4MATIC, general

The front axle transmission is designed as a single-speed differential (4) with fuel-efficient technology (fuel economy). The housing of the front axle transmission is made of aluminum and bolted to the oil pan of the engine by means of front axle transmission carrier (7). The drive pinion (2) is positioned at an angle of 83° to the crown gear (3), to adjust the course of the propeller shaft to the front axle differential. The ring gear (3) is attached on the engine side and bolted to the differential housing of the differential (4). This location of components of the front axle transmission causes the change in direction of rotation, which occurs due to the single-speed front axle transmission output in the transfer case, to reverse again.

Overview of system components, automatically controlled all-wheel drive (4MATIC)

GF28.00-P-9998AVL
