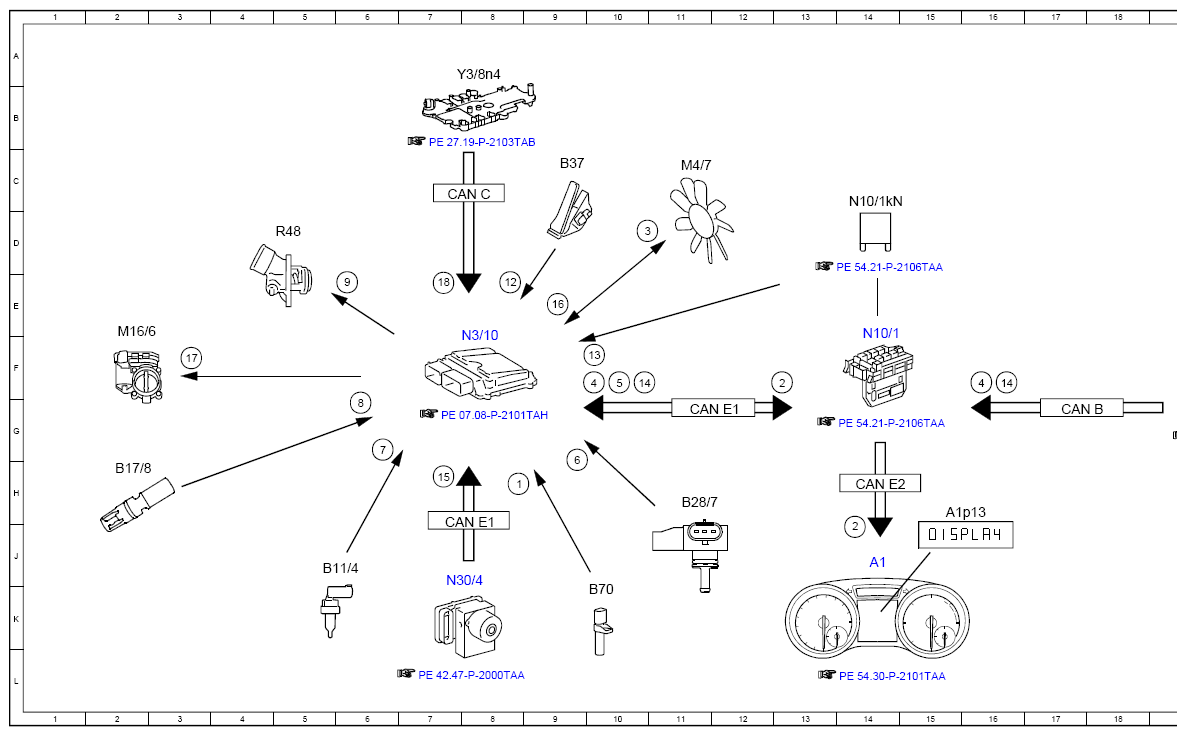

Electrical Function Schematic For Thermal Management - PE07.10-P-2712-97TAH
Engine 276.8 in Model 172.4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine speed, signal | 8H |
| 12 | Accelerator pedal sensor, signal | 8E |
| 13 | Circuit 87, status | 10F |
| 14 | Fan motor, request | 10F |
| 14 | Fan motor, request | 16F |
| 15 | Wheel speed, signal | 7H |
| 16 | Fan motor, status | 9E |
| 17 | Actuator motor, throttle valve actuator, actuation | 3F |
| 18 | Transmission oil temperature, signal | 7E |
| 2 | Instrument cluster, message | 14J |
| 2 | Instrument cluster, message | 13F |
| 3 | Fan motor, specified RPM request | 10D |
| 4 | Air conditioning, status | 10F |
| 4 | Air conditioning, status | 16F |
| 5 | Outside temperature, signal | 10F |
| 6 | Engine load, signal | 9H |
| 7 | Coolant temperature, signal | 6G |
| 8 | Charge air temperature sensor, signal | 6G |
| 9 | Coolant thermostat heating element, actuation | 6E |
| A1 | Instrument cluster | 14J |
| A1p13 | Multifunction display | 15H |
| B11/4 | Coolant temperature sensor | 5J |
| B17/8 | Charge air temperature sensor | 2H |
| B28/7 | Pressure sensor downstream of throttle valve | 11H |
| B37 | Accelerator pedal sensor | 9C |
| B70 | Crankshaft Hall sensor | 10K |
| CAN B | Interior CAN | 17G |
| CAN C | Drive train CAN | 7C |
| CAN E1 | Chassis CAN 1 | 11G |
| CAN E1 | Chassis CAN 1 | 7J |
| CAN E2 | Chassis CAN 2 | 14H |
| M16/6 | Throttle valve actuator | 2E |
| M4/7 | Combustion engine and air conditioning with integrated control fan motor | 11C |
| N10/1 | Front SAM control unit with fuse and relay module | 14F |
| N10/1kN | Engine circuit 87 relay | 14C |
| N22/7 | Automatic air conditioning control and operating unit | 20F |
| N3/10 | ME-SFI [ME] control unit | 8F |
| N30/4 | Electronic Stability Program control unit | 7J |
| R48 | Coolant thermostat heating element | 5D |
| Y3/8n4 | Fully integrated transmission control control unit | 8A |
