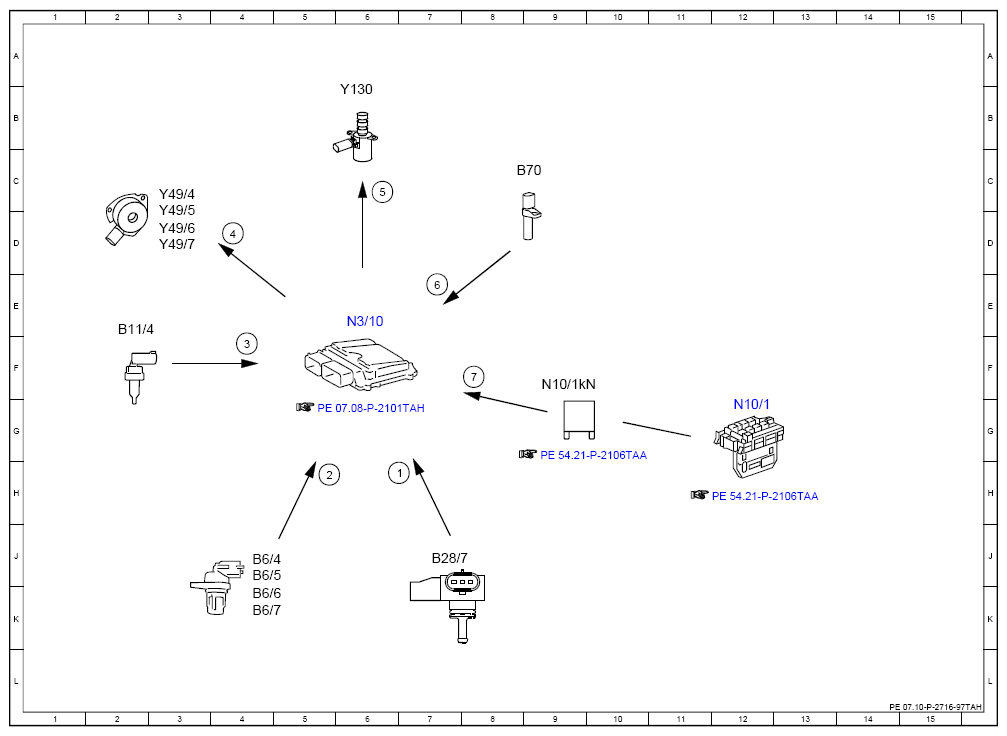

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97TAH
Engine 276.8 in Model 172.4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 6H |
| 2 | Camshaft Hall sensor, signal | 5H |
| 3 | Coolant temperature, signal | 4F |
| 4 | Camshaft solenoids, actuation | 4D |
| 5 | Engine oil pump valve, actuation | 6C |
| 6 | Engine speed, signal | 7E |
| 7 | Circuit 87, status | 8F |
| B11/4 | Coolant temperature sensor | 2E |
| B28/7 | Pressure sensor downstream of throttle valve | 7J |
| B6/4 | Left intake camshaft Hall sensor | 4J |
| B6/5 | Right intake camshaft Hall sensor | 4J |
| B6/6 | Left exhaust camshaft Hall sensor | 4K |
| B6/7 | Right exhaust camshaft Hall sensor | 4K |
| B70 | Crankshaft Hall sensor | 8C |
| N10/1 | Front SAM control unit with fuse and relay module | 12G |
| N10/1kN | Engine circuit 87 relay | 9F |
| N3/10 | ME-SFI [ME] control unit | 6E |
| Y130 | Engine oil pump valve | 6B |
| Y49/4 | Left intake camshaft solenoid | 3C |
| Y49/5 | Right intake camshaft solenoid | 3D |
| Y49/6 | Left exhaust camshaft solenoid | 3D |
| Y49/7 | Right exhaust camshaft solenoid | 3D |
