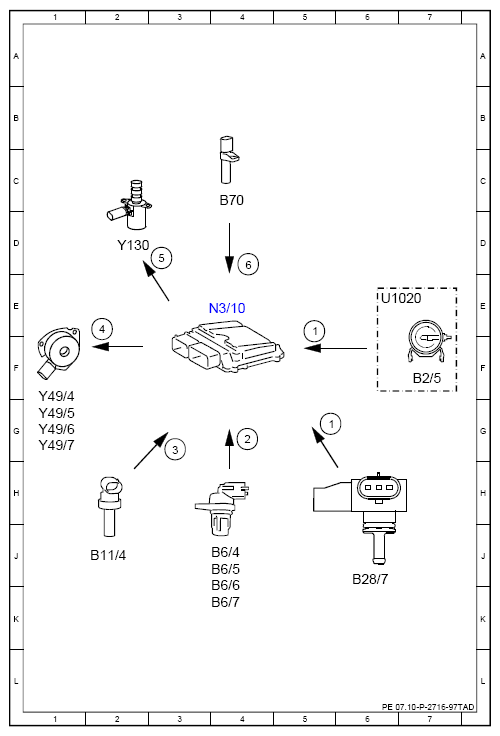

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97TAD
Engine 276 in Model 172
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 5E |
| 1 | Engine load, signal | 5G |
| 2 | Camshaft Hall sensor, signal | 4G |
| 3 | Coolant temperature sensor, signal | 3G |
| 4 | Camshaft solenoids, actuation | 2E |
| 5 | Engine oil pump valve, actuation | 3D |
| 6 | Engine speed, signal | 4D |
| B11/4 | Coolant temperature sensor | 2J |
| B2/5 | Hot film mass air flow sensor | 7F |
| B28/7 | Pressure sensor downstream of throttle valve | 6J |
| B6/4 | Left intake camshaft Hall sensor | 4J |
| B6/5 | Right intake camshaft Hall sensor | 4J |
| B6/6 | Left exhaust camshaft Hall sensor | 4K |
| B6/7 | Right exhaust camshaft Hall sensor | 4K |
| B70 | Crankshaft Hall sensor | 4C |
| N3/10 | ME-SFI [ME] control unit | 4E |
| U1020 | Valid for gasoline engine with stratified operation | 6E |
| Y130 | Engine oil pump valve | 2D |
| Y49/4 | Left intake camshaft solenoid | 1G |
| Y49/5 | Right intake camshaft solenoid | 1G |
| Y49/6 | Left exhaust camshaft solenoid | 1G |
| Y49/7 | Right exhaust camshaft solenoid | 1G |
