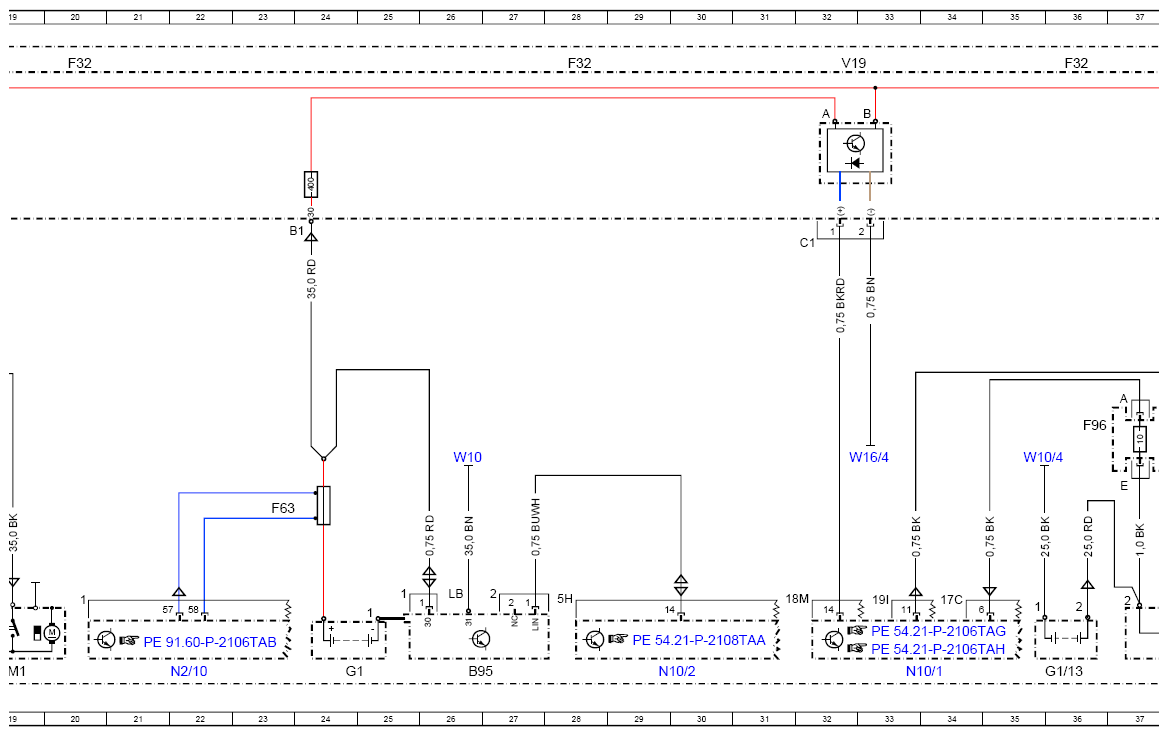

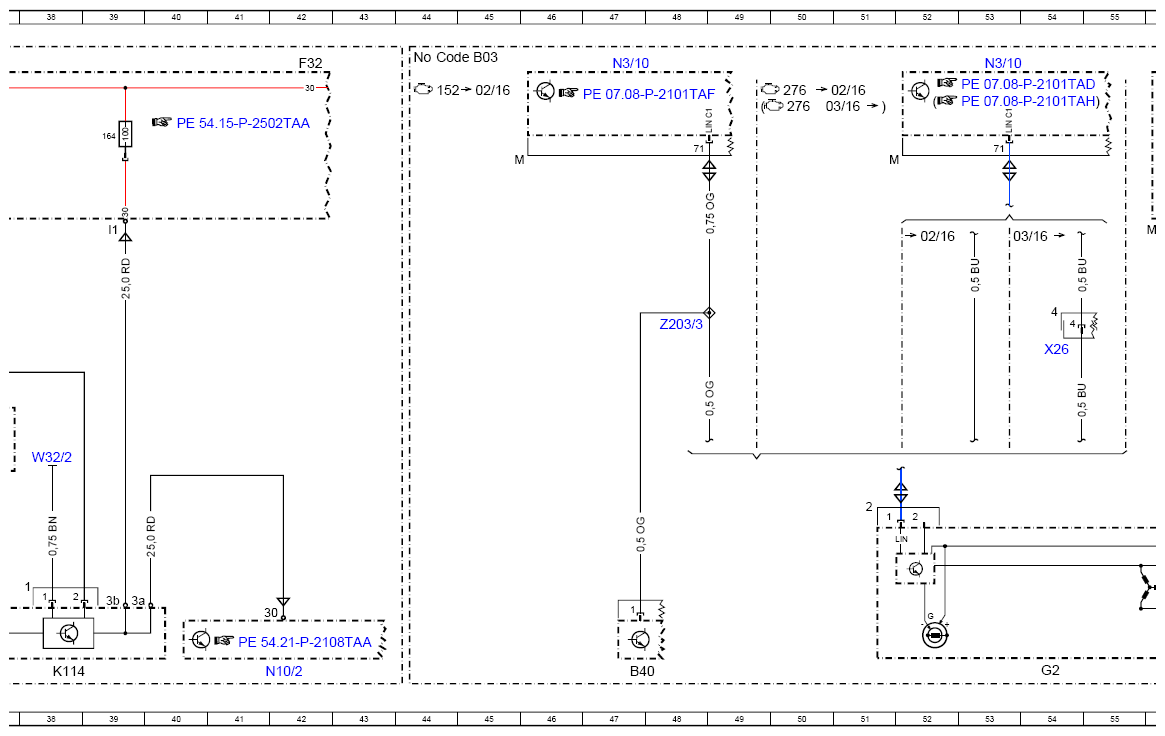

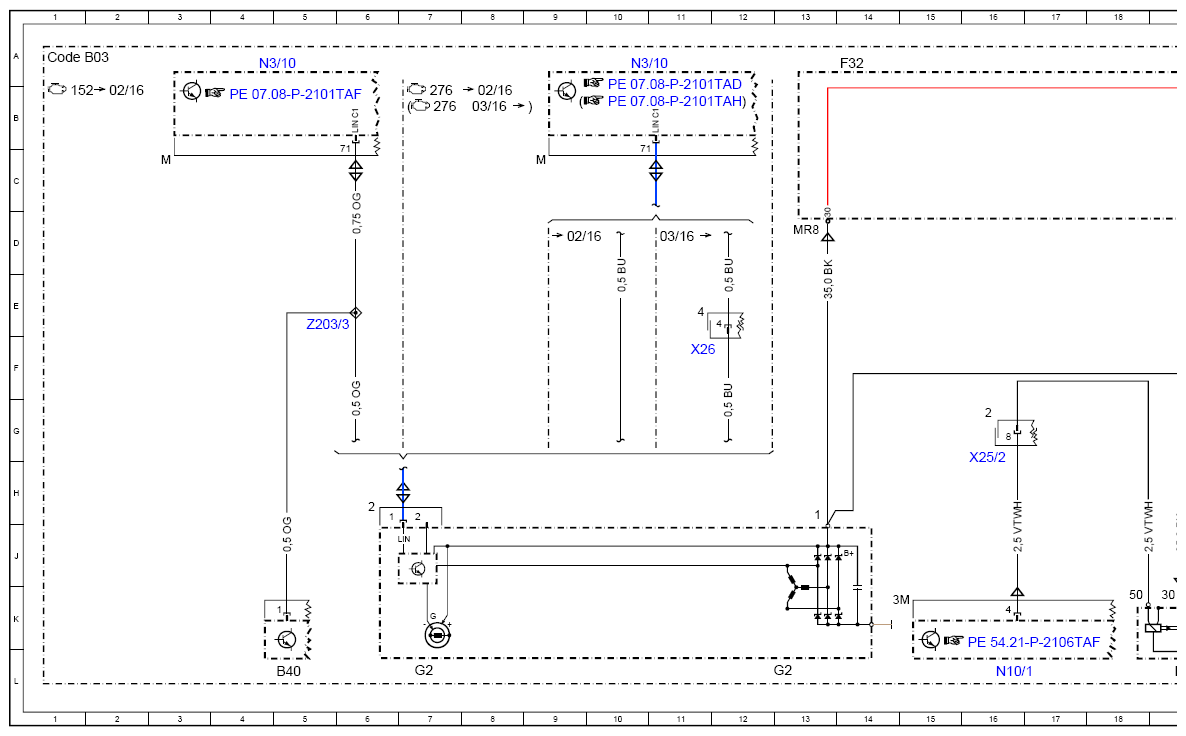

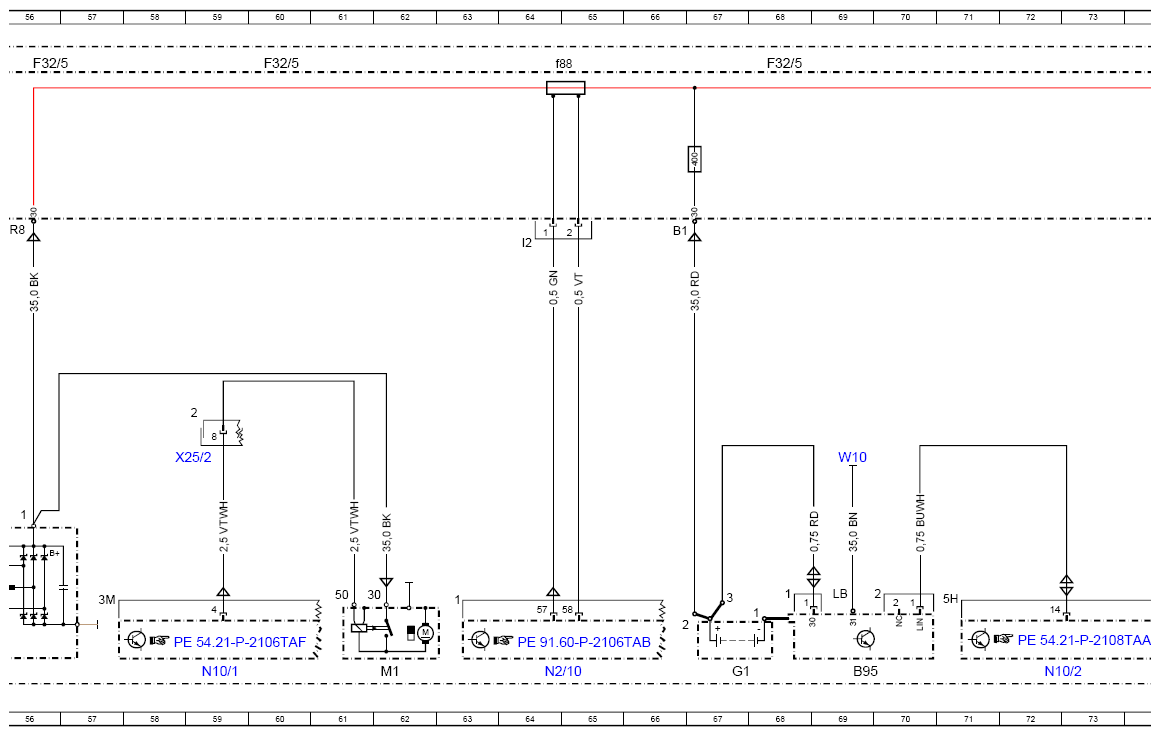

Wiring Diagram Of Starter, Alternator, Battery - PE15.00-P-2101-97TAA
Engine 152.980 up to 2/29/16, 276.822 as of 3/1/16, 276.9 up to 2/29/16 in model 172.4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| B40 | Oil sensor (oil level, temperature and quality) | 5L |
| B40 | Oil sensor (oil level, temperature and quality) | 47L |
| B95 | Battery sensor | 26L |
| B95 | Battery sensor | 69L |
| Code B03 | ECO start/stop function | 1A |
| Code B03 | ECO start/stop function | 44A |
| F32 | Front prefuse | 14A |
| F32 | Front prefuse | 28A |
| F32 | Front prefuse | 20A |
| F32 | Front prefuse | 36A |
| F32 | Front prefuse | 42A |
| F32/5 | Prefuse box without ECO start/stop function | 56A |
| F32/5 | Prefuse box without ECO start/stop function | 60A |
| F32/5 | Prefuse box without ECO start/stop function | 68A |
| F32/5 | Prefuse box without ECO start/stop function | 76A |
| F32/5f88 | Pyrofuse 88 | 64A |
| F32f164 | Prefuse 164 | 39B |
| F32f164 | Prefuse 164 | 76B |
| F63 | Pyrofuse | 23H |
| F96 | Additional battery circuit 30 fuse | 36G |
| G1 | On-board electrical system battery | 24L |
| G1 | On-board electrical system battery | 67L |
| G1/13 | ECO start/stop function additional battery | 36L |
| G2 | Alternator | 7L |
| G2 | Alternator | 13L |
| G2 | Alternator | 54L |
| K114 | ECO start/stop function additional battery relay | 38L |
| M1 | Starter | 19L |
| M1 | Starter | 62L |
| N10/1 | Front SAM control unit with fuse and relay module | 16L |
| N10/1 | Front SAM control unit with fuse and relay module | 33L |
| N10/1 | Front SAM control unit with fuse and relay module | 59L |
| N10/2 | Rear SAM control unit with fuse and relay module | 29L |
| N10/2 | Rear SAM control unit with fuse and relay module | 42L |
| N10/2 | Rear SAM control unit with fuse and relay module | 72L |
| N10/2 | Rear SAM control unit with fuse and relay module | 76L |
| N2/10 | Supplemental restraint system control unit | 22L |
| N2/10 | Supplemental restraint system control unit | 64L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 10A |
| N3/10 | ME-SFI [ME] control unit | 53A |
| N3/10 | ME-SFI [ME] control unit | 47A |
| V19 | ECO start/stop function diode | 32A |
| W10 | Right front battery ground point | 26G |
| W10 | Right front battery ground point | 69G |
| W10/4 | 2nd battery ground point | 35G |
| W16/4 | Right major assembly compartment ground point | 33H |
| W32/2 | Right rear panel ground point | 38G |
| X25/2 | Engine compartment/vehicle interior electrical connector | 16H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 59H |
| X26 | Interior and engine wiring harness electrical connector | 11F |
| X26 | Interior and engine wiring harness electrical connector | 54F |
| Z203/3 | Alternator LIN signal connector sleeve | 5E |
| Z203/3 | Alternator LIN signal connector sleeve | 48E |
