Disconnecting And Connecting Harness At Starter - AR15.30-P-7100-03W
Engine 152, 276 in model 172
STARTER
| Number | Designation | Engine 152 | Engine 276 | |
|---|---|---|---|---|
| BA15.30-P-1001-01J | Nut, connection for terminal designation 30 | Nm | 15 | 15 |
STARTER
| Number | Designation | Engine 152 | Engine 276 | |
|---|---|---|---|---|
| BA15.30-P-1002-01J | Nut, connection for terminal designation 50 | Nm | 6 | 6 |

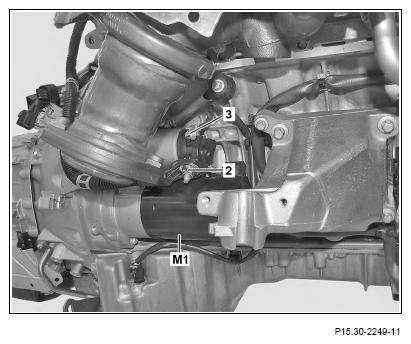

- Detach contact protection for electrical line for circuit 30 on starter (M1).
- Unscrew nut (2) and remove electrical line for circuit 30 from starter (M1)
- Unscrew nut (3) and remove electrical line for circuit 50 from starter (M1)
