Wiring Diagram For Fuel Pump Control Unit- PE47.40-P-2101-97TAA
Engine 152.980 up to 2/29/16, 271.8 up to 5/31/15, 274.9 as of 6/1/15, 276.822 as of 3/1/16, 276.9 up to 2/29/16 in model 172.4

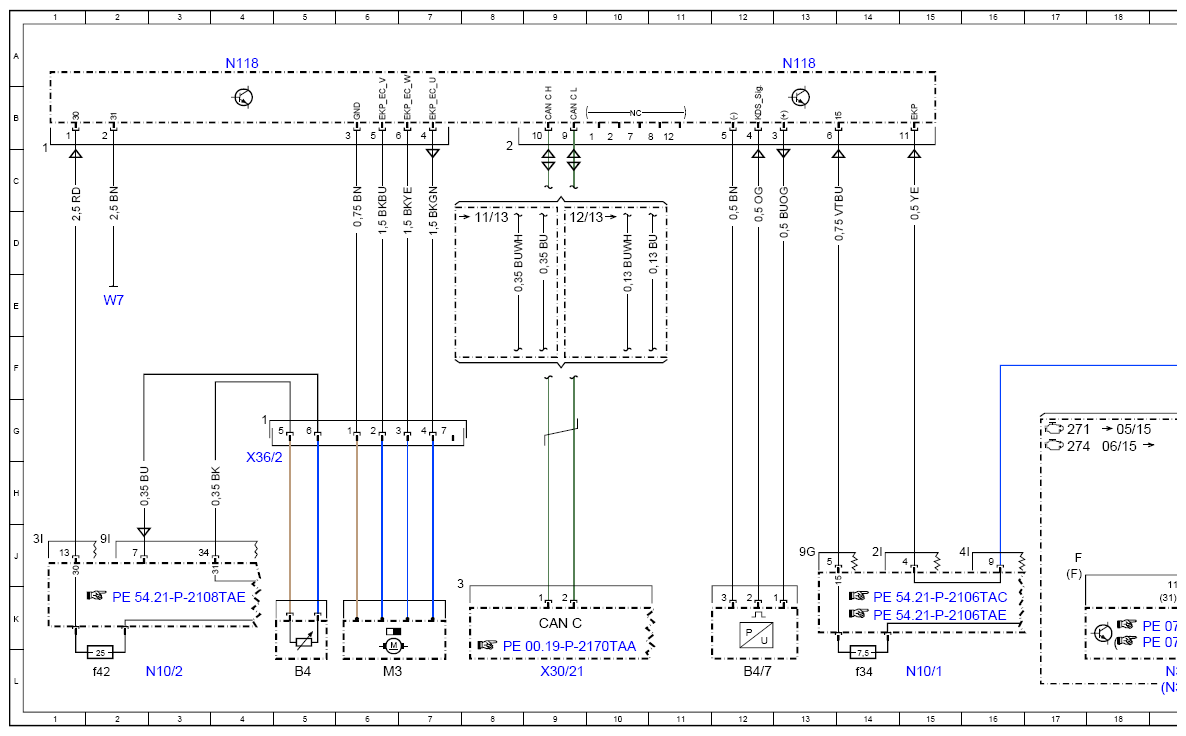

Control unit N118
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B4 | Fuel level indicator sensor | 5L |
| B4/7 | Fuel pressure sensor | 12L |
| CAN C | Drive train CAN | 9K |
| M3 | Fuel pump (FP) | 6L |
| N10/1 | Front SAM control unit with fuse and relay module | 15L |
| N10/1f34 | Fuse 34 | 14L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f42 | Fuse 42 | 2L |
| N118 | Fuel pump control unit | 4A |
| N118 | Fuel pump control unit | 13A |

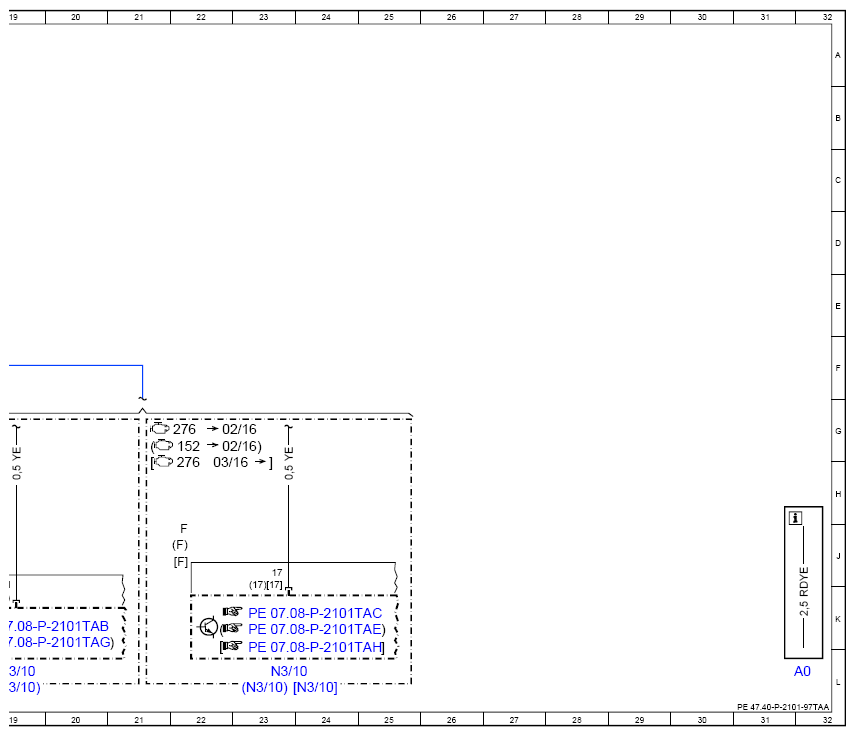

| N3/10 | ME-SFI [ME] control unit | 19L |
| N3/10 | ME-SFI [ME] control unit | 19L |
| N3/10 | ME-SFI [ME] control unit | 24L |
| N3/10 | ME-SFI [ME] control unit | 23L |
| N3/10 | ME-SFI [ME] control unit | 23L |
| W7 | Right wheelhouse trunk ground point | 2E |
| X30/21 | Drive train CAN voltage distributor electrical connector | 9L |
| X36/2 | Fuel pump and vehicle rear wiring harness electrical connector | 4H |
