Purge System With Leak Test, Function - GF47.30-P-3017MNC
Engine 276.8 in model 172.4
with code 494 (US version)

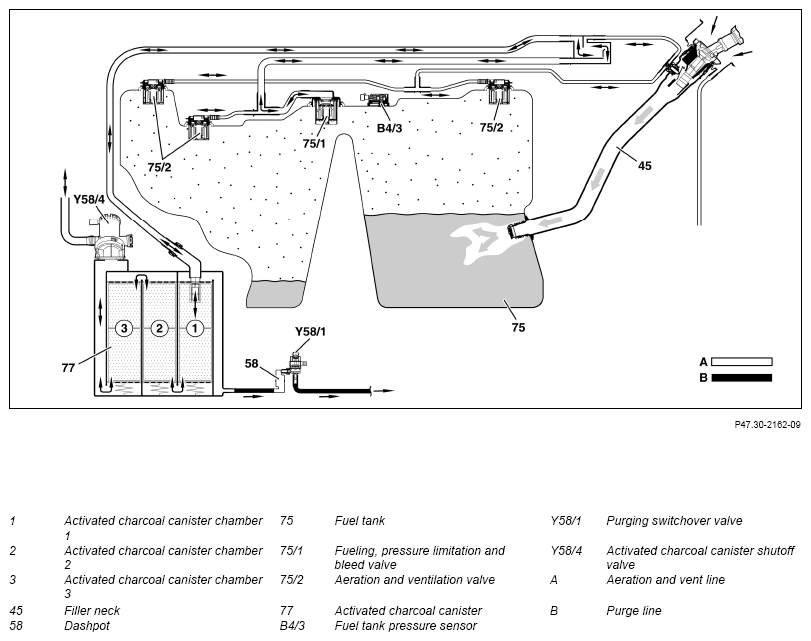

Schematic diagram of fuel tank aeration and ventilation (for code 494 (USA version))
Purge system function requirements with leak test, general
- Engine at idle
- Vehicle stationary
- Gear range "D" or "R" from fully integrated transmission control unit (Y3/8n4) via drive train CAN (CAN C)
- Blocking time after engine start elapsed (approx. 3 minutes) or self-adjustment of the mixture formation occurs
- Lambda control released
- Charge air temperature <72°C
- Coolant temperature for engine start <100°C
- Air pressure >780 hPa (which means that no test takes place above an altitude of about 2500 meters)
- Low loading of activated charcoal canister
- Fuel level in the fuel tank at least 30%
- Battery voltage > 11 V
- No error on system assembly parts
The ME-SFI [ME] control unit reads in the following sensors and signals to fulfill the function requirements:
- Oxygen sensor elements at left and right upstream of catalytic converter (G3/3b1, G3/4b1), oxygen and nitrogen oxide content
- Oxygen sensor elements at left and right downstream of catalytic converter (G3/5b1, G3/6b1), oxygen and nitrogen oxide content
- Charge air temperature sensor (B17/8), charge air temperature
- Coolant temperature sensor (B11/4), coolant temperature
- Fuel level indicator sensor (B4), fuel level signal from rear SAM control unit with fuse and relay module (N10/2) via the interior CAN (CAN B)
Purge system with leak test, general
The legislator requires that no fuel vapors reaches the open air.
The leak test for the evaporative emission control system must take place in three stages (function chain) and recognizes the following leak:
- Gross leak (a leak the same or greater than a 2.5 mm dia.)
- Fine leak (a leak the same or greater than a 1 mm dia.)
- Very fine leak (a leak the same or greater than a 0.5 mm dia.)
Purge system with leak test, function sequence
The function sequence is subdivided into the following steps:
- Function sequence for gross leak-fine leak check
- Function sequence for gross leak-very fine leak check
Function sequence for gross leak-fine leak check
To check for a gross leak the activated charcoal canister shutoff valve closes and the purging switchover valve opens. The vacuum from the intake air system passes through the fuel tank and is detected by the fuel tank pressure sensor.
If no vacuum builds up in the fuel tank (approx. -6 mbar within approx. 12 s) there is a major leak (e.g. tank cap open, hose line loose). The test will be interrupted and the error "gross leak" stored in the fault memory.
If the ME-SFI [ME] control unit detects a gross leak in the system, the fuel reserve warning lamp (A1e4) in the instrument cluster (A1) (warning lamp flashes) is actuated via chassis CAN 1, front SAM control unit with fuse and relay module (N10/1) and the chassis CAN 2. The additional message "CHECK FILLER CAP" in the multifunction display (A1p13) is issued if a fueling >20 l is recognized. Otherwise only the error "gross leak" is saved in the fault memory.
While checking for fine leaks, a vacuum of about -6 mbar is built up again and the system is made airproof. The vacuum is them measured for approx. 30 seconds. The vacuum must not reduce more rapidly than 0.3 to 0.5 mbar per second (depends on fuel level). If the vacuum drops more rapidly, there is a fine leak.
The test will be interrupted and the error "fine leak" is stored.
If no leak can be found, although a "gross leak" fault is indicated (if the leak diameter is more than 2.5 mm, there should be a loud hiss), replace the fuel tank pressure sensor.
Function sequence for gross leak-very fine leak check
If no "fine leak" has been detected, purging is briefly enabled and a vacuum of about -6 mbar is then built up again. In a closed system, the vacuum must not drop faster than 0.10 to 0.15 mbar per second (depending on fuel level). If the vacuum dissipates more rapidly, the "very fine leak" fault is stored.
The reduction in vacuum depends on the fuel level in the fuel tank and on fuel outgassing. Fuel outgassing is measured shortly before fuel tank pressure sensor is checked, and taken into account for fault indication.
The activated charcoal canister shutoff valve is reopened after the tests.
The test for fine and very fine leaks is aborted if an excessive lean correction of the lambda control takes place during the buildup of the vacuum.
The function of the purging switchover valve is checked at the same time by the activation. If the closed switchover valve jams, the "gross leak" fault is stored.
If there are faults recognized then these are stored by the ME-SFI [ME] control unit in the fault memory and the engine diagnosis indicator lamp (A1e58) is actuated in the instrument cluster via chassis CAN 1, front SAM control unit with fuse and relay module and chassis CAN 2.
