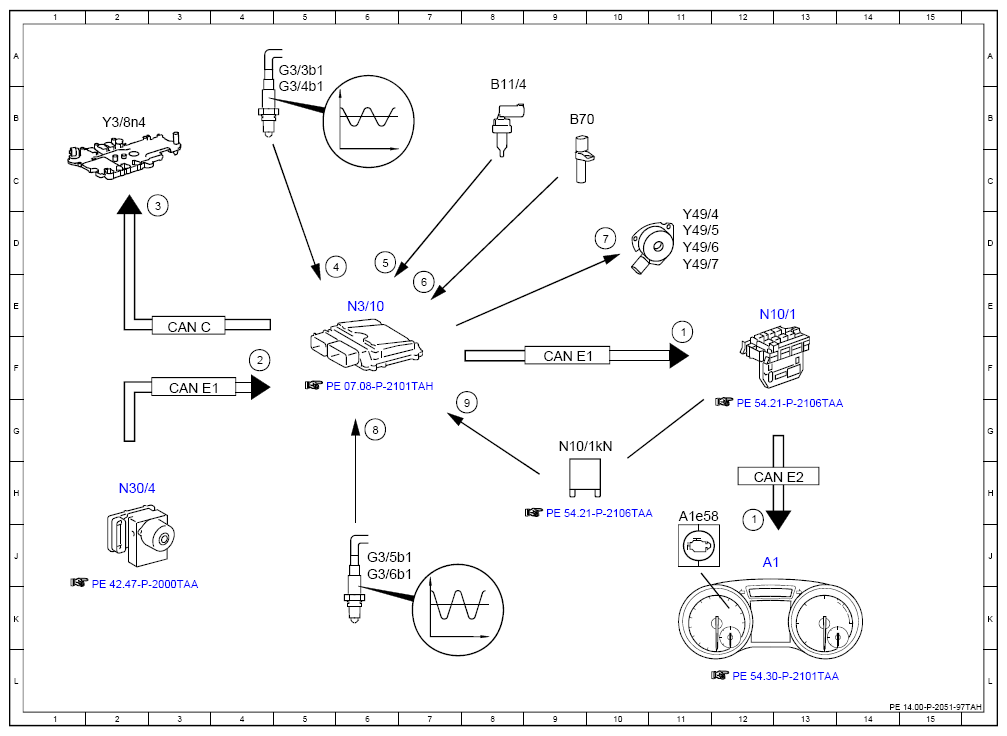

Electrical Function Schematic For Exhaust Treatment - PE14.00-P-2051-97TAH
Engine 276.8 in Model 172.4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 12H |
| 1 | Engine diagnosis indicator lamp, actuation | 11E |
| 2 | Wheel speed, signal | 4F |
| 3 | Shift point, increase request | 3C |
| 4 | Oxygen sensor, signal | 5D |
| 5 | Coolant temperature, signal | 6D |
| 6 | Engine speed, signal | 7E |
| 7 | Camshaft solenoids, actuation | 10D |
| 8 | Oxygen sensor, signal | 6G |
| 9 | Circuit 87, status | 8G |
| A1 | Instrument cluster | 12J |
| A1 e58 | Engine diagnosis indicator lamp | 11H |
| B11/4 | Coolant temperature sensor | 8B |
| B70 | Crankshaft Hall sensor | 9B |
| CAN C | Drive train CAN | 3E |
| CAN E1 | Chassis CAN 1 | 3F |
| CAN E1 | Chassis CAN 1 | 9F |
| CAN E2 | Chassis CAN 2 | 12H |
| G3/3b1 | Left oxygen sensor element upstream of catalytic converter | 5A |
| G3/4b1 | Right oxygen sensor element upstream of catalytic converter | 5B |
| G3/5b1 | Left oxygen sensor element downstream of catalytic converter | 6J |
| G3/6b1 | Right oxygen sensor element downstream of catalytic converter | 6J |
| N10/1 | Front SAM control unit with fuse and relay module | 12E |
| N10/1kN | Engine circuit 87 relay | 9G |
| N3/10 | ME-SFI [ME] control unit | 6E |
| N30/4 | Electronic Stability Program control unit | 2H |
| Y3/8n4 | Fully integrated transmission control control unit | 2B |
| Y49/4 | Left intake camshaft solenoid | 11D |
| Y49/5 | Right intake camshaft solenoid | 11D |
| Y49/6 | Left exhaust camshaft solenoid | 11D |
| Y49/7 | Right exhaust camshaft solenoid | 11D |
