Disconnect Engine Wiring Harness For Removal Of Cylinder Head Covers - AR01.00-P-2410-04WA
Engine 276.8 in model 172

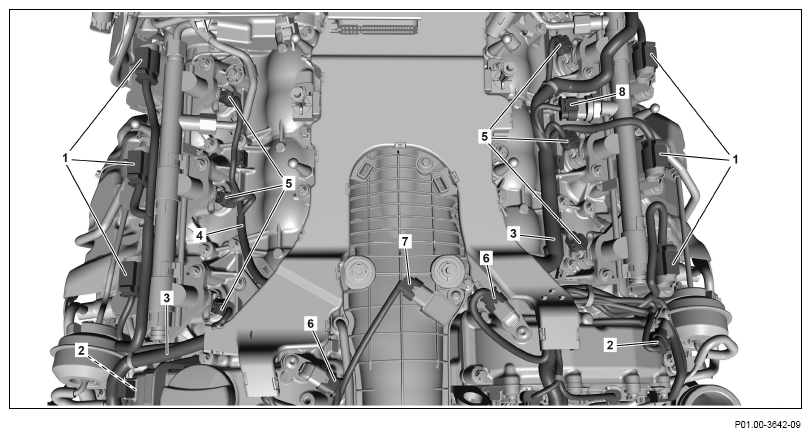

- Release and disconnect electrical connections (1) for ignition coils.
- Detach electrical wiring harness for ignition coils from left rail.
- Detach electrical wiring harness for ignition coils from right rail.
- Release and disconnect electrical connections (5).
- Unclip wiring harness (4) at right cylinder head cover.
- Unclip engine wiring harness (3) at left and right cylinder head cover.
- Unclip engine wiring harness (3) at left and right timing case cover.

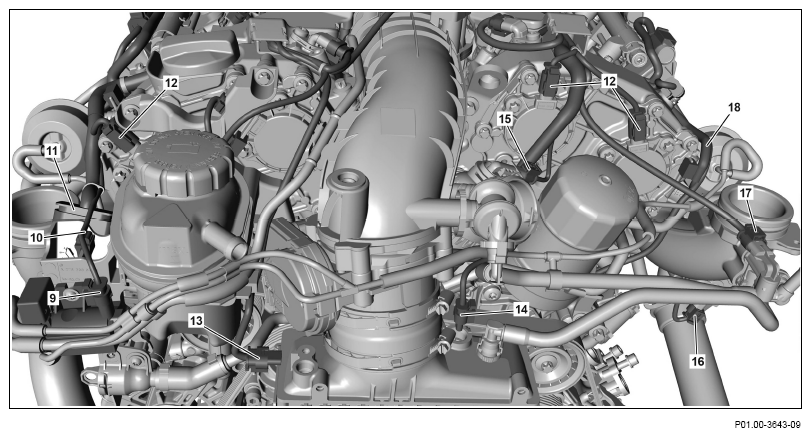

- Release and disconnect electrical connection (8) at pressure sensor.
- Release and disconnect electrical connections (2).
- Release and disconnect electrical connections (6).
- Release and disconnect electrical connection (7).
- Disconnect electrical connection (9).
- Unclip electrical line (10) at low-temperature circuit coolant expansion reservoir carrier.
- Release and disconnect electrical connection (11).
- Release and disconnect electrical connections (12).
- Release and disconnect electrical connection (13).
- Unclip electrical line from pressure sensor upstream of throttle valve at low-temperature circuit coolant expansion reservoir carrier.
- Release and disconnect electrical connection (14).
- Release and disconnect electrical connection (15).
- Unclip electrical wiring harness (18) at left front cover.
- Release and disconnect electrical connection (17).
- Release and disconnect electrical connection (16).

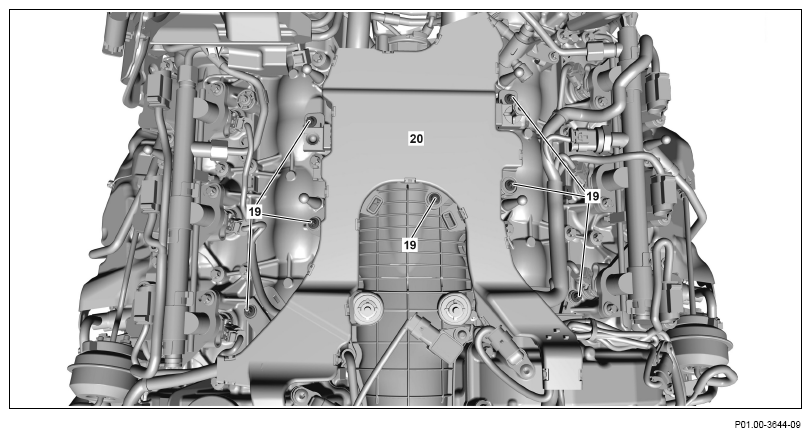

- Remove screw/bolts (19).
- Lift cable duct (20) and place to one side.
