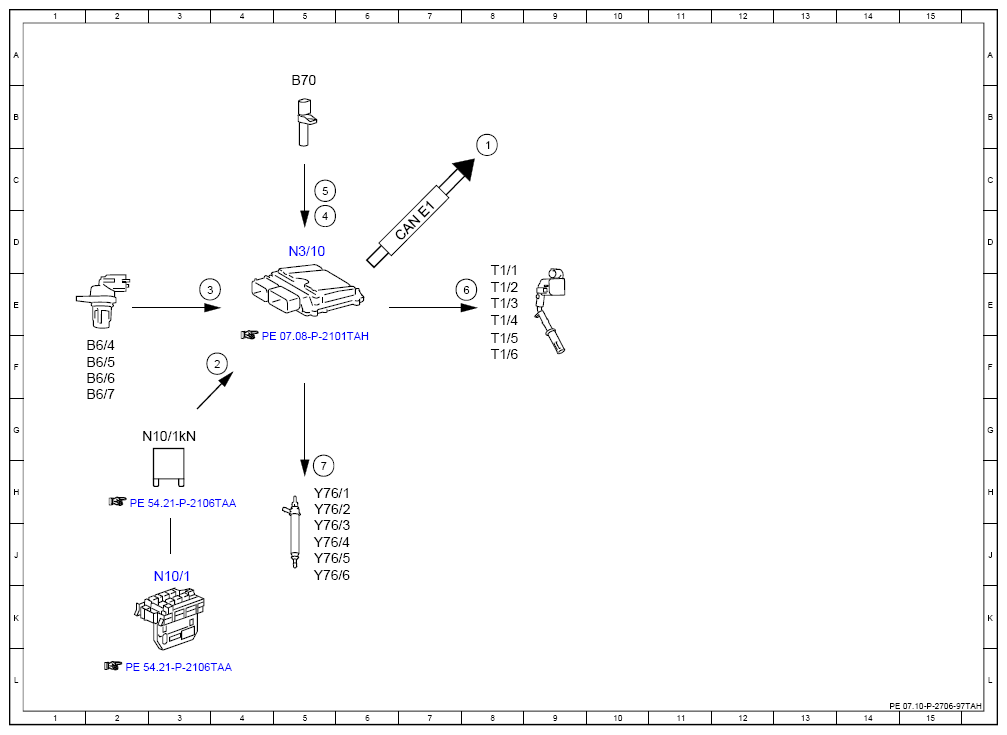

Electrical Function Schematic, Synchronization Of The Injection And Firing Order - PE07.10-P-2706-97TAH
Engine 276.8 in Model 172.4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine speed, signal | 8C |
| 2 | Circuit 87, status | 4F |
| 3 | Camshaft Hall sensor, signal | 3E |
| 4 | Engine speed, signal | 5D |
| 5 | Crankshaft Hall sensor, signal | 5C |
| 6 | Ignition coils, actuation | 8E |
| 7 | Fuel injectors, actuation | 5H |
| B6/4 | Left intake camshaft Hall sensor | 2F |
| B6/5 | Right intake camshaft Hall sensor | 2F |
| B6/6 | Left exhaust camshaft Hall sensor | 2F |
| B6/7 | Right exhaust camshaft Hall sensor | 2G |
| B70 | Crankshaft Hall sensor | 5A |
| CAN E1 | Chassis CAN 1 | 7D |
| N10/1 | Front SAM control unit with fuse and relay module | 3J |
| N10/1kN | Engine circuit 87 relay | 3G |
| N3/10 | ME-SFI [ME] control unit | 5D |
| T1/1 | Cylinder 1 ignition coil | 8E |
| T1/2 | Cylinder 2 ignition coil | 8E |
| T1/3 | Cylinder 3 ignition coil | 8E |
| T1/4 | Cylinder 4 ignition coil | 8E |
| T1/5 | Cylinder 5 ignition coil | 8F |
| T1/6 | Cylinder 6 ignition coil | 8F |
| Y76/1 | Cylinder 1 fuel injector | 5H |
| Y76/2 | Cylinder 2 fuel injector | 5H |
| Y76/3 | Cylinder 3 fuel injector | 5J |
| Y76/4 | Cylinder 4 fuel injector | 5J |
| Y76/5 | Cylinder 5 fuel injector | 5J |
| Y76/6 | Cylinder 6 fuel injector | 5J |
