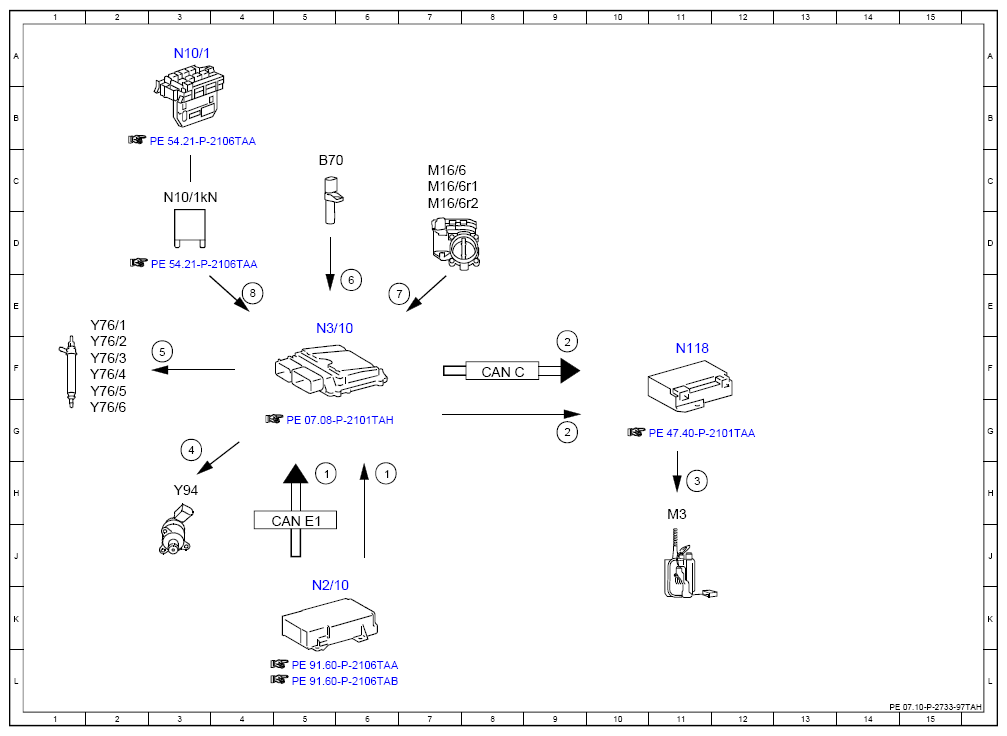

Electrical Function Schematic For Safety Fuel Shut Off - PE07.10-P-2733-97TAH
Engine 276.8 in Model 172.4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 5H |
| 1 | Crash, signal | 6H |
| 2 | Fuel pump, request OFF | 9G |
| 2 | Fuel pump, request OFF | 9F |
| 3 | Fuel pump, actuation OFF | 11H |
| 4 | Quantity control valve, actuation | 3G |
| 5 | Fuel injectors, actuation | 3F |
| 6 | Engine speed, signal | 6E |
| 7 | Throttle valve position, signal | 6E |
| 8 | Circuit 87, status | 4E |
| B70 | Crankshaft Hall sensor | 5C |
| CAN C | Drive train CAN | 8F |
| CAN E1 | Chassis CAN 1 | 5J |
| M16/6 | Throttle valve actuator | 7C |
| M16/6r1 | Actual value potentiometer 1 | 7C |
| M16/6r2 | Actual value potentiometer 2 | 7C |
| M3 | Fuel pump (FP) | 11H |
| N10/1 | Front SAM control unit with fuse and relay module | 3A |
| N10/1kN | Engine circuit 87 relay | 3C |
| N118 | Fuel pump control unit | 11F |
| N2/10 | Supplemental restraint system control unit | 5K |
| N3/10 | ME-SFI [ME] control unit | 5E |
| Y76/1 | Cylinder 1 fuel injector | 2E |
| Y76/2 | Cylinder 2 fuel injector | 2F |
| Y76/3 | Cylinder 3 fuel injector | 2F |
| Y76/4 | Cylinder 4 fuel injector | 2F |
| Y76/5 | Cylinder 5 fuel injector | 2F |
| Y76/6 | Cylinder 6 fuel injector | 2G |
| Y94 | Quantity control valve | 3H |
