Remove/Install Right Guide Pulley For Ancillaries Belt Drive - AR13.20-P-0018W
Engine 276 in model 172
Shown: engine 276.9 with a hydraulic power steering pump

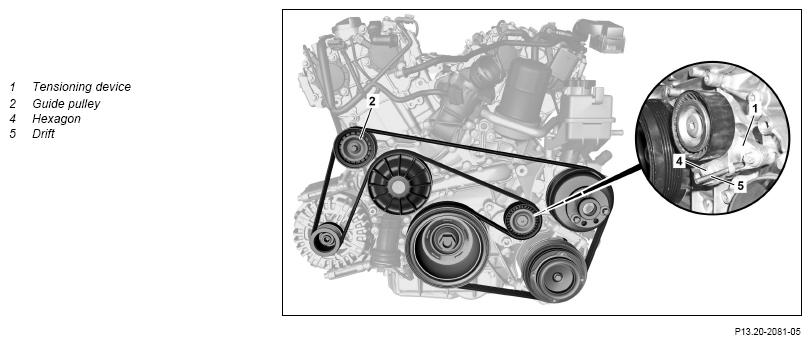

Fig 1: Right Guide Pulley For Ancillaries Belt Drive Components Location - Engine 276 In Model 172 (shown: Engine 276.9 With A Hydraulic Power Steering Pump)
| Remove | |||
| 1 | Remove poly-V belt | AR13.22-P-1202W | |
| 2 | Remove screw/bolt of guide pulley (2) | ||
| 3 | Remove guide pulley (2) | ||
| Check | |||
| 4 | Check guide pulley (2) for damage | If damage is present ↓ Replace guide pulley (2). |
|
| Install | |||
| 5 | Mount guide pulley (2) | ||
| 6 | Screw in screw/bolt of guide pulley (2) | *BA13.25-P-1004-01X | |
| 7 | Install poly-V belt | AR13.22-P-1202W |
BELT TENSIONING DEVICE
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA13.25-P-1004-01X | Screw/bolt, guide pulley to coolant | Nm | 35 |
