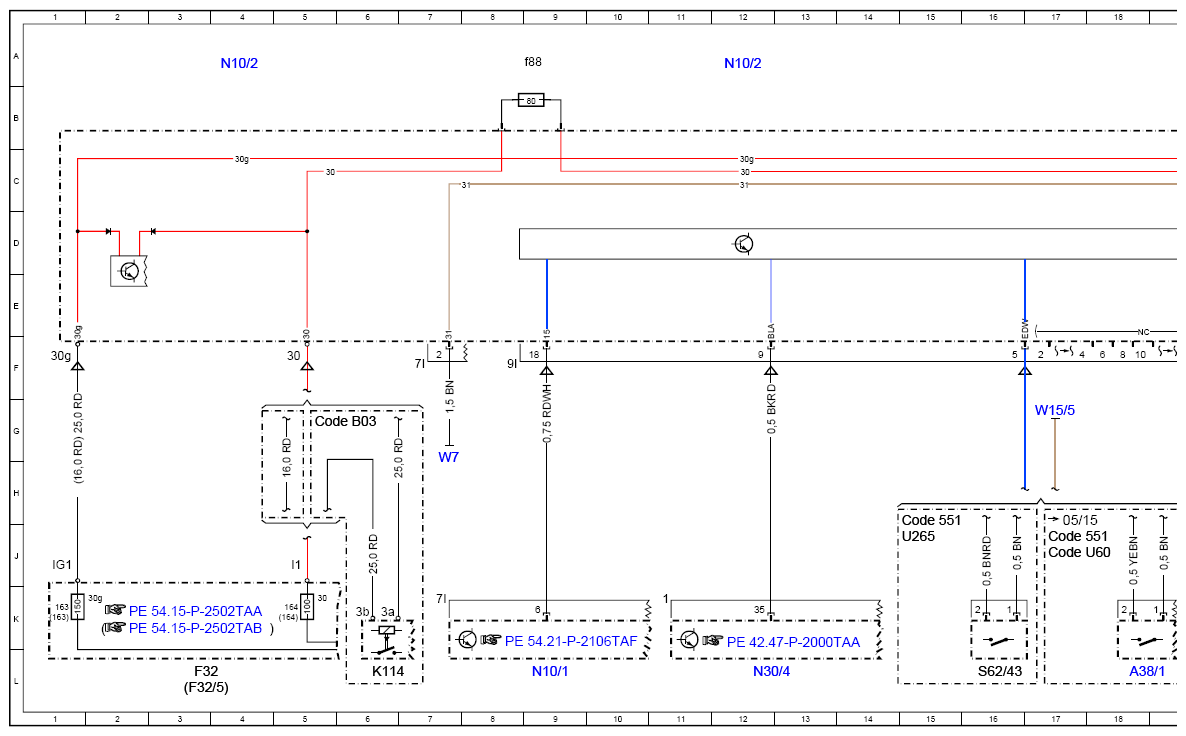

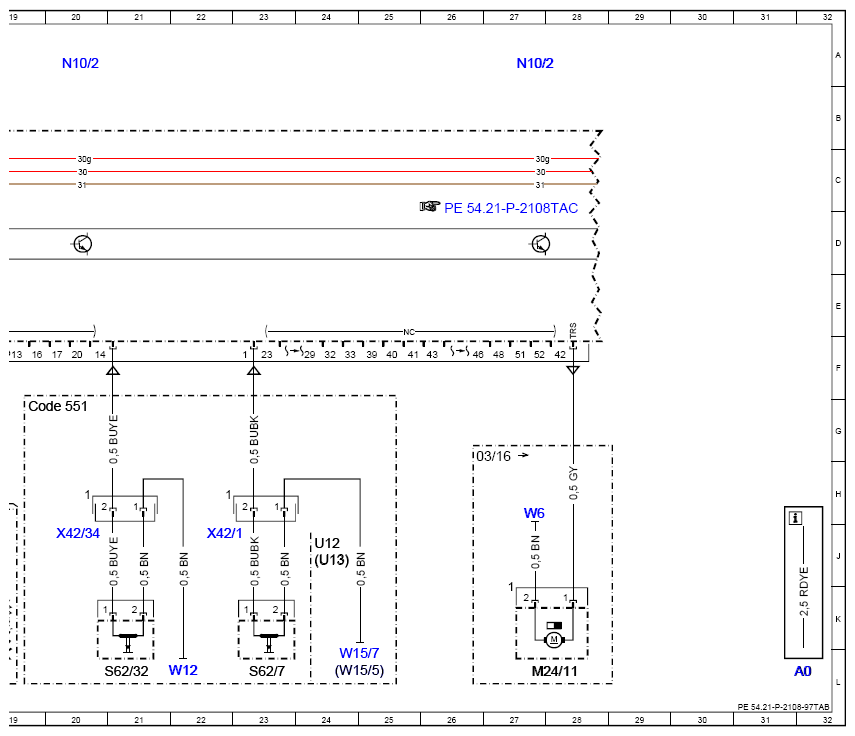

Wiring Diagram/Rear SAM Control Unit With Fuse And Relay Module (N10/2) - PE54.21-P-2108-97TAB
Model 172.4
Specification 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 18L |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 15J |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 17J |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 19G |
| Code B03 | ECO start/stop function | 5G |
| Code U60 | Pedestrian protection | 17J |
| F32 | Front pre-fuse | 3L |
| F32/5 | Pre-fuse box without ECO start/stop function | 3L |
| F32/5f163 | Pre-fuse 163 | 1K |
| F32/5f164 | Pre-fuse 164 | 5K |
| F32f163 | Pre-fuse 163 | 1K |
| F32f164 | Pre-fuse 164 | 5K |
| K114 | ECO start/stop function additional battery relay | 6L |
| M24/11 | Trunk partition motor | 27L |
| N10/1 | Front SAM control unit with fuse and relay module | 9L |
| N10/2 | Rear SAM control unit with fuse and relay module | 4A |
| N10/2 | Rear SAM control unit with fuse and relay module | 12A |
| N10/2 | Rear SAM control unit with fuse and relay module | 20A |
| N10/2 | Rear SAM control unit with fuse and relay module | 27A |
| N10/2f88 | Fuse 88 | 9A |
| N30/4 | Electronic Stability Program control unit | 12L |
| S62/32 | Center console stowage compartment anti-theft alarm system switch | 21L |
| S62/43 | Left engine hood contact switch | 16L |
| S62/7 | Glove compartment anti-theft alarm system switch | 23L |
| U12 | Valid for left-hand drive vehicles | 24J |
| U13 | Valid for right-hand drive vehicles | 24J |
| U265 | Not valid for pedestrian protection | 15J |
| W12 | Ground point (center console) | 22L |
| W15/5 | Left front footwell ground point | 24L |
| W15/5 | Left front footwell ground point | 17G |
| W15/7 | Right front footwell ground point | 24L |
| W6 | Left wheel arch trunk ground point | 27H |
| W7 | Right wheelhouse trunk ground point | 7H |
| X42/1 | Anti-theft alarm system/glove compartment switch electrical connector | 22J |
| X42/34 | Anti-theft alarm system/armrest contact electrical connector | 20J |
