Wiring Diagram Of Front SAM Control Unit With Fuse And Relay Module (N10/1) - PE54.21-P-2106-97TAF
Model 172.4
Specification 6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64A |
| A1 | Instrument cluster | 46L |
| A70/1 | Analog clock | 55L |
| A91/1 | Electrohydraulic power steering | 38L |
| Code 246 | Analog clock | 52H |
| Code 476 | Automatic lane detection | 49J |
| F32 | Front pre-fuse | 3L |
| F32/5 | Pre-fuse box without ECO start/stop function | 3L |
| F32f152 | Pre-fuse 152 | 1K |
| F32f161 | Pre-fuse 161 | 2K |

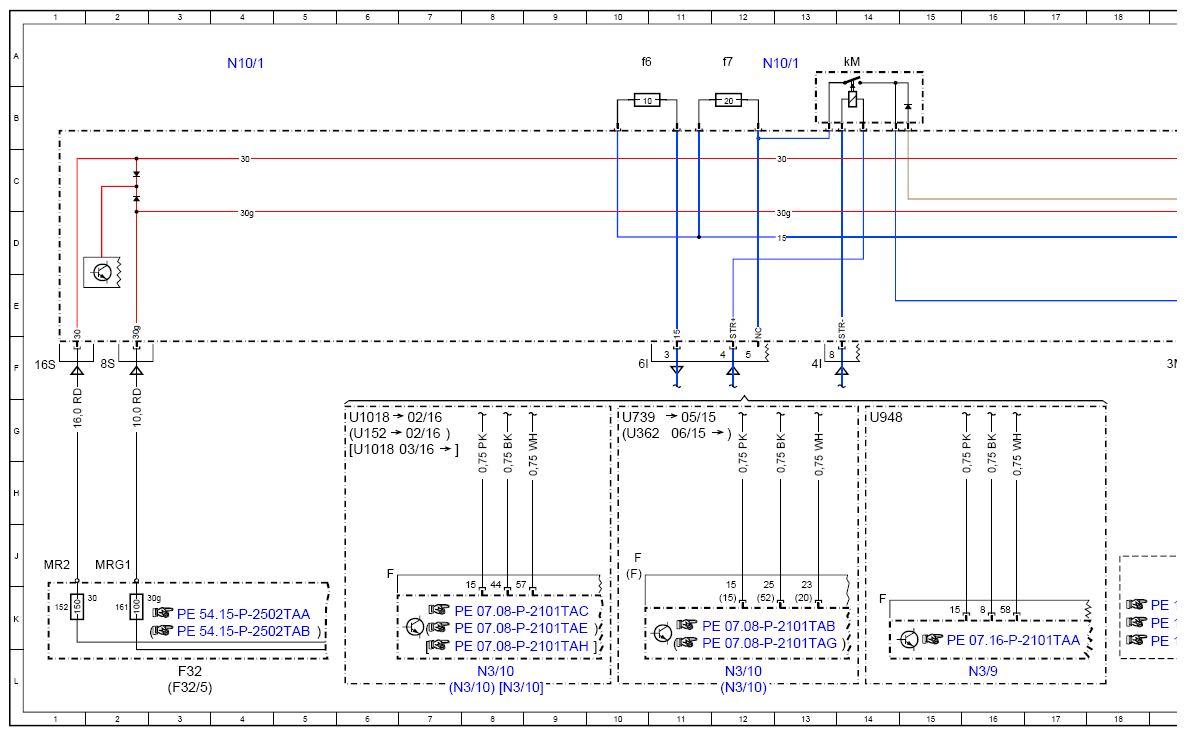

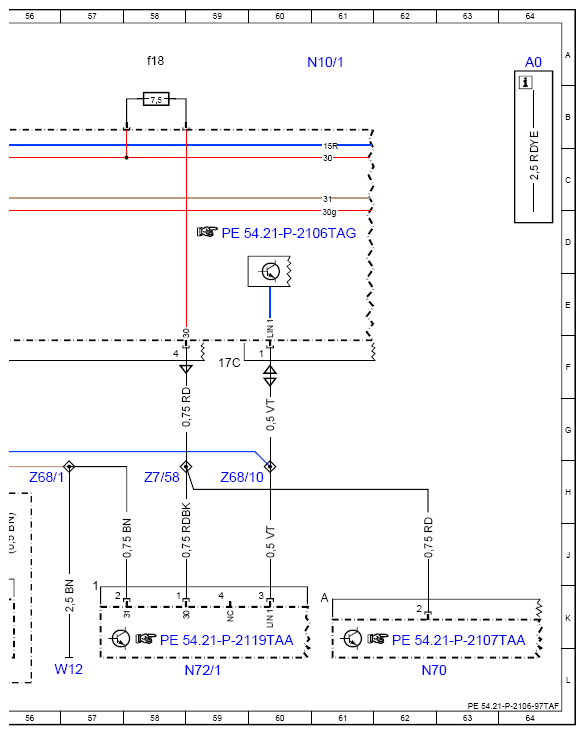

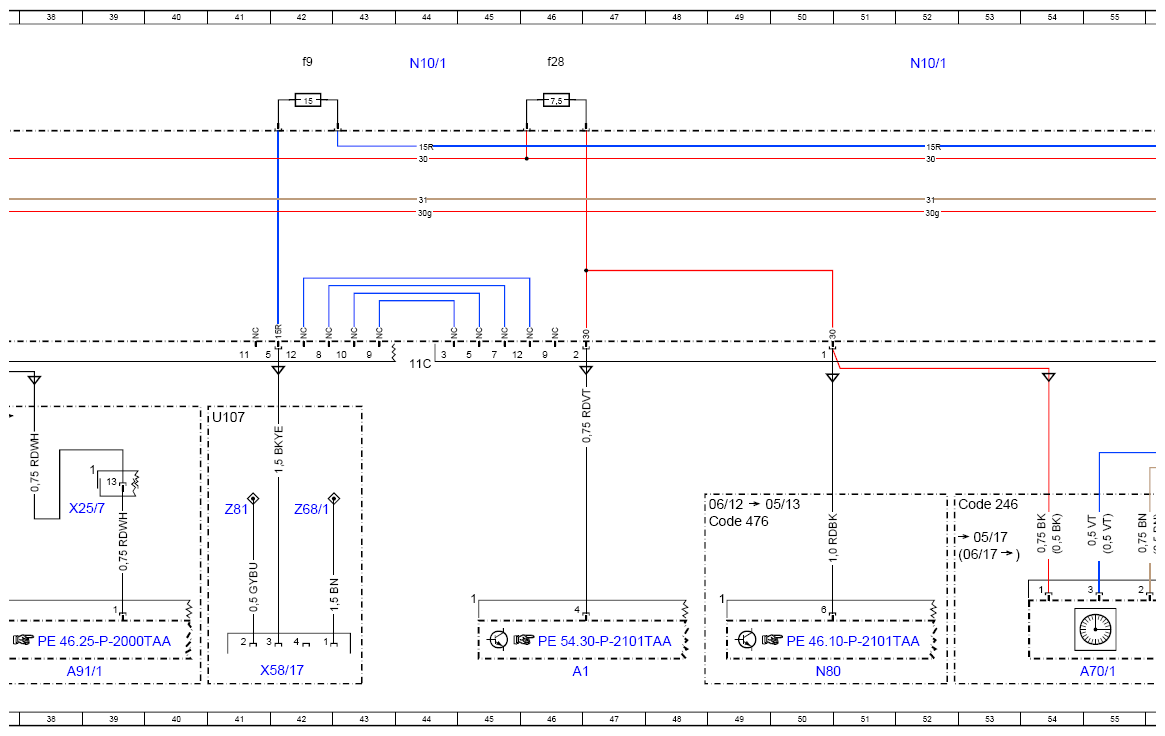

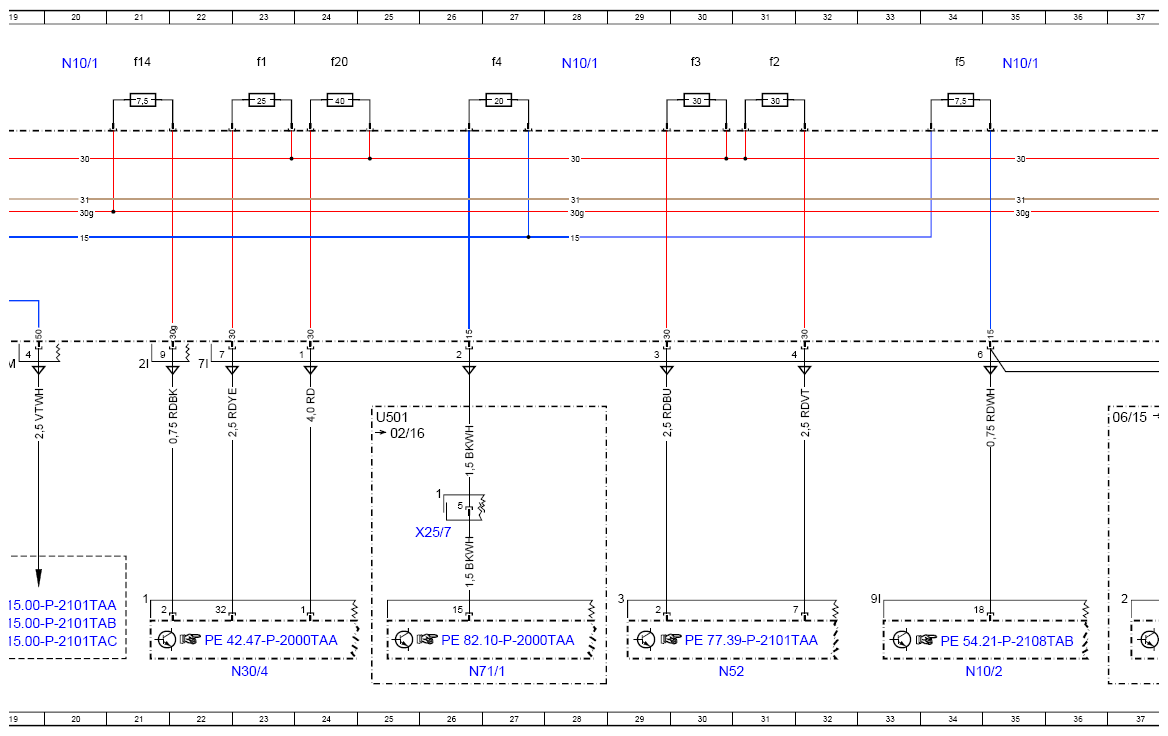

| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 35A |
| N10/1 | Front SAM control unit with fuse and relay module | 44A |
| N10/1 | Front SAM control unit with fuse and relay module | 52A |
| N10/1 | Front SAM control unit with fuse and relay module | 61A |
| N10/1f1 | Fuse 1 | 23A |
| N10/1f14 | Fuse 14 | 21A |
| N10/1f18 | Fuse 18 | 58A |
| N10/1f2 | Fuse 2 | 31A |
| N10/1f20 | Fuse 20 | 24A |
| N10/1f28 | Fuse 28 | 46A |
| N10/1f3 | Fuse 3 | 30A |
| N10/1f4 | Fuse 4 | 27A |
| N10/1f5 | Fuse 5 | 34A |
| N10/1f6 | Fuse 6 | 10A |
| N10/1f7 | Fuse 7 | 12A |
| N10/1f9 | Fuse 9 | 42A |
| N10/1kM | Starter circuit 50 relay | 14A |
| N10/2 | Rear SAM control unit with fuse and relay module | 34L |
| N3/10 | ME-SFI [ME] control unit | 12L |
| N3/10 | ME-SFI [ME] control unit | 12L |
| N3/10 | ME-SFI [ME] control unit | 8L |
| N3/10 | ME-SFI [ME] control unit | 8L |
| N3/10 | ME-SFI [ME] control unit | 7L |
| N3/9 | CDI control unit | 16L |
| N30/4 | Electronic Stability Program control unit | 23L |
| N52 | Vario roof control control unit | 30L |
| N70 | Overhead control panel control unit | 62L |
| N71/1 | Headlamp control unit | 26L |
| N72/1 | Upper control panel control unit | 59L |
| N80 | Steering column module control unit | 50L |
| U1018 | Valid for gasoline engine 276 | 6G |
| U1018 | Valid for gasoline engine 276 | 6G |
| U107 | Valid for socket in glove compartment | 41G |
| U152 | Valid for gasoline engine 152 | 6G |
| U362 | Valid for gasoline engine 274 | 10G |
| U501 | Valid for xenon headlamps | 25G |
| U739 | Valid for gasoline engine 271 DE | 10G |
| U948 | Valid for diesel engine 651 | 14G |
| W12 | Ground point (center console) | 57L |
| X25/7 | Engine compartment/FFS [RBA] electrical connector | 26J |
| X25/7 | Engine compartment/FFS [RBA] electrical connector | 39H |
| X58/17 | Front vehicle interior power outlet | 42L |
| Z68/1 | Instrument panel circuit 31 climate control LIN connector sleeve | 42H |
| Z68/1 | Instrument panel circuit 31 climate control LIN connector sleeve | 56H |
| Z68/10 | Instrument panel LIN connector sleeve | 59H |
| Z7/58 | Tml. 30 connector sleeve | 58H |
| Z81 | Circuit 58d connector sleeve | 41H |
