Wiring Diagram Of Front SAM Control Unit With Fuse And Relay Module (N10/1) - PE54.21-P-2106-97TAD
Model 172.4
Specification 4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| Code 421 | 9G-TRONIC | 6G |
| Code 476 | Automatic lane detection | 42G |
| Code 580 | Air conditioning | 38G |
| Code 581 | Automatic air conditioning | 38G |
| Code 640 | High Performance LED | 28G |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 28G |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 28H |
| Code 876 | Interior lights package | 14G |
| Code 877 | Ambiance illumination | 20G |
| E17/15 | Right footwe11 lamp | 19L |
| E17/15 | Right footwe11 lamp | 26L |
| E17/16 | Left footwell lamp | 18L |
| E17/16 | Left footwell lamp | 22L |
| E36/1 | Armrest stowage compartment illumination | 16L |
| E36/1x1 | 16J | |
| F32 | Front pre-fuse | 3L |
| F32/5 | Pre-fuse box without ECO start/stop function | 3L |
| F32f152 | Pre-fuse 152 | 1K |
| F32f161 | Pre-fuse 161 | 2K |

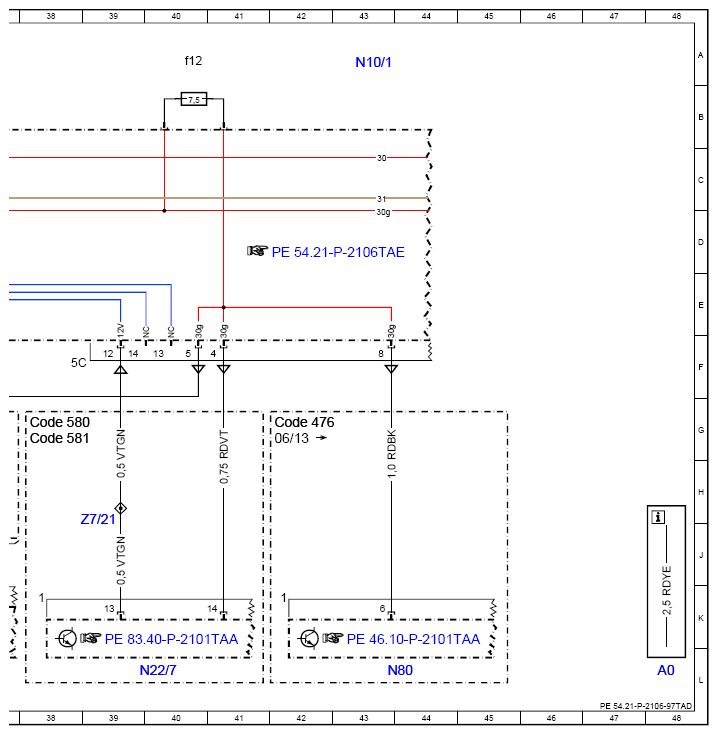

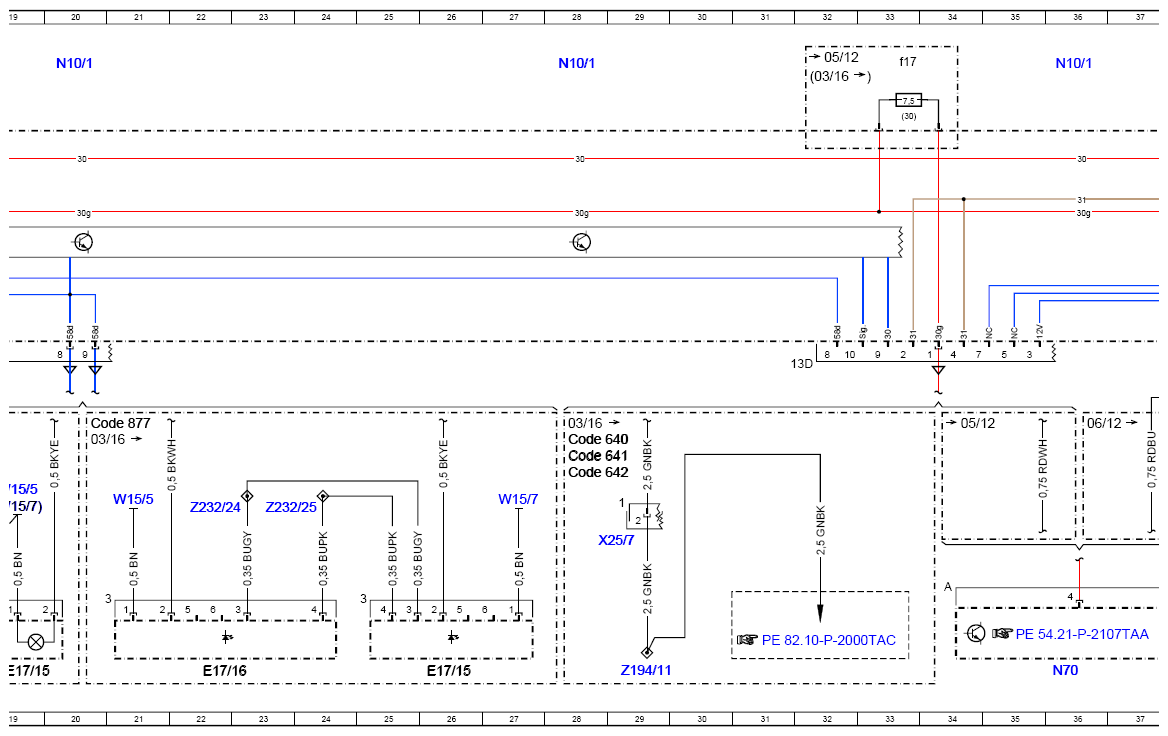

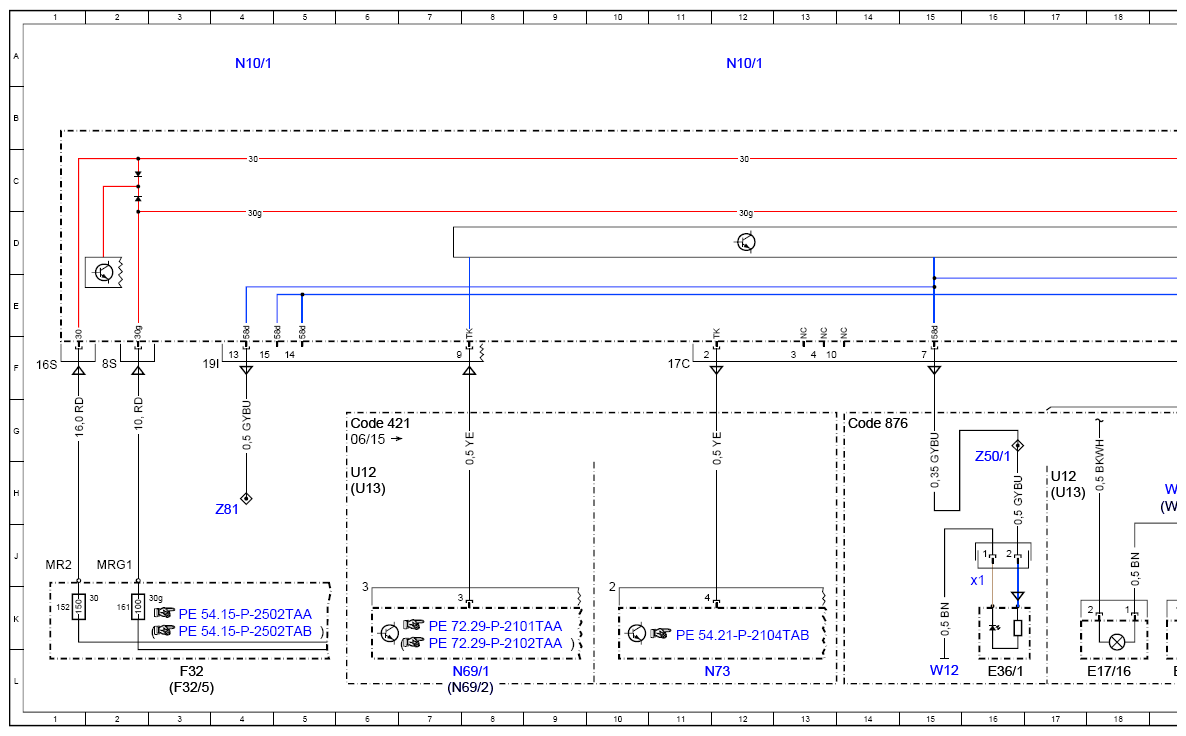

| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/1 | Front SAM control unit with fuse and relay module | 28A |
| N10/1 | Front SAM control unit with fuse and relay module | 36A |
| N10/1 | Front SAM control unit with fuse and relay module | 43A |
| N10/1f12 | Fuse 12 | 40A |
| N10/1f17 | Fuse 17 | 33A |
| N22/7 | Automatic air conditioning control and operating unit | 40L |
| N69/1 | Left door control unit | 8L |
| N69/2 | Right door control unit | 7L |
| N70 | Overhead control panel control unit | 36L |
| N73 | Electronic ignition switch control unit | 12L |
| N80 | Steering column module control unit | 43L |
| U12 | Valid for left-hand drive vehicles | 6H |
| U12 | Valid for left-hand drive vehicles | 17H |
| U13 | Valid for right-hand drive vehicles | 6H |
| U13 | Valid for right-hand drive vehicles | 17H |
| W12 | Ground point (center console) | 15L |
| W15/5 | Left front footwell ground point | 19H |
| W15/5 | Left front footwell ground point | 21H |
| W15/7 | Right front footwell ground point | 19H |
| W15/7 | Right front footwell ground point | 27H |
| X25/7 | Engine compartment/FFS [RBA] electrical connector | 29J |
| Z194/11 | Front LED exterior illumination actuation module circuit 30 connector sleeve | 29L |
| Z232/24 | 22H | |
| Z232/25 | 23H | |
| Z50/1 | Circuit 58d instrument panel connector sleeve | 16G |
| Z7/21 | Air conditioning circuit 30 connector sleeve | 39J |
| Z81 | Circuit 58d connector sleeve | 4H |
