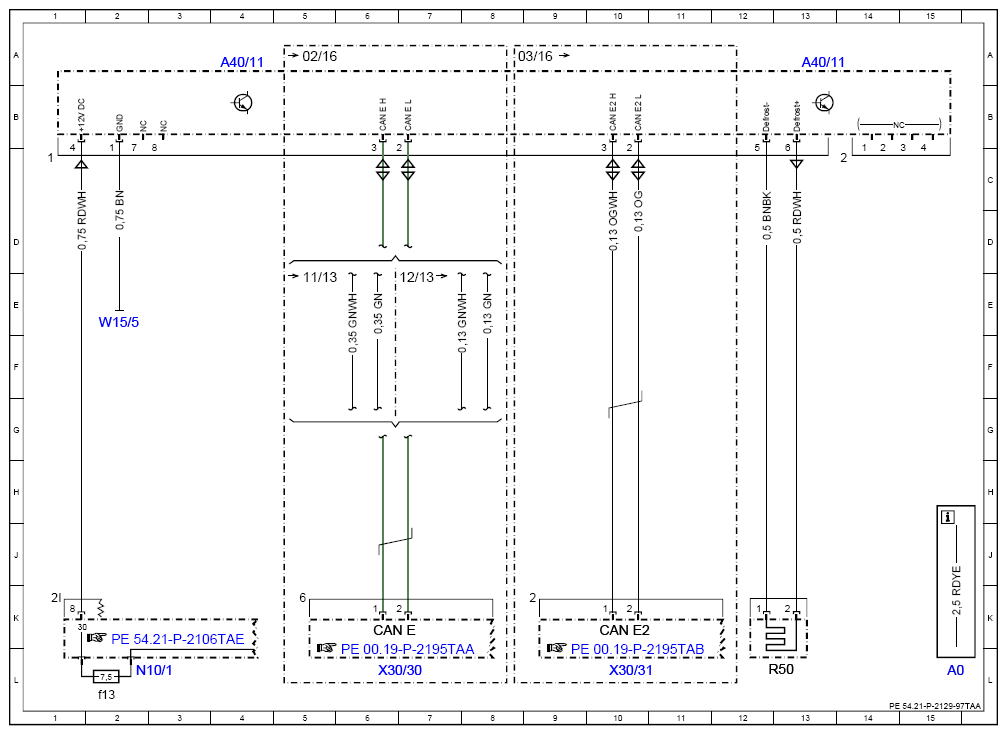

Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97TAA
Model 172.4
Control unit A40/11
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A40/11 | Multifunction camera | 4A |
| A40/11 | Multifunction camera | 13A |
| CAN E | Chassis CAN | 6K |
| CAN E2 | Chassis CAN 2 | 10K |
| N10/1 | Front SAM control unit with fuse and relay module | 2L |
| N10/1f13 | Fuse 13 | 2L |
| R50 | Auxiliary heater heating element | 13L |
| W15/5 | Left front footwell ground point | 2E |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 6L |
| X30/31 | Chassis 1 CAN (CAN E2) potential distributor electrical connector | 10L |
