Connector Separation Point Wiring Diagram - PE54.18-P-2300-97TAE
Model 172.4 as of 3/1/16

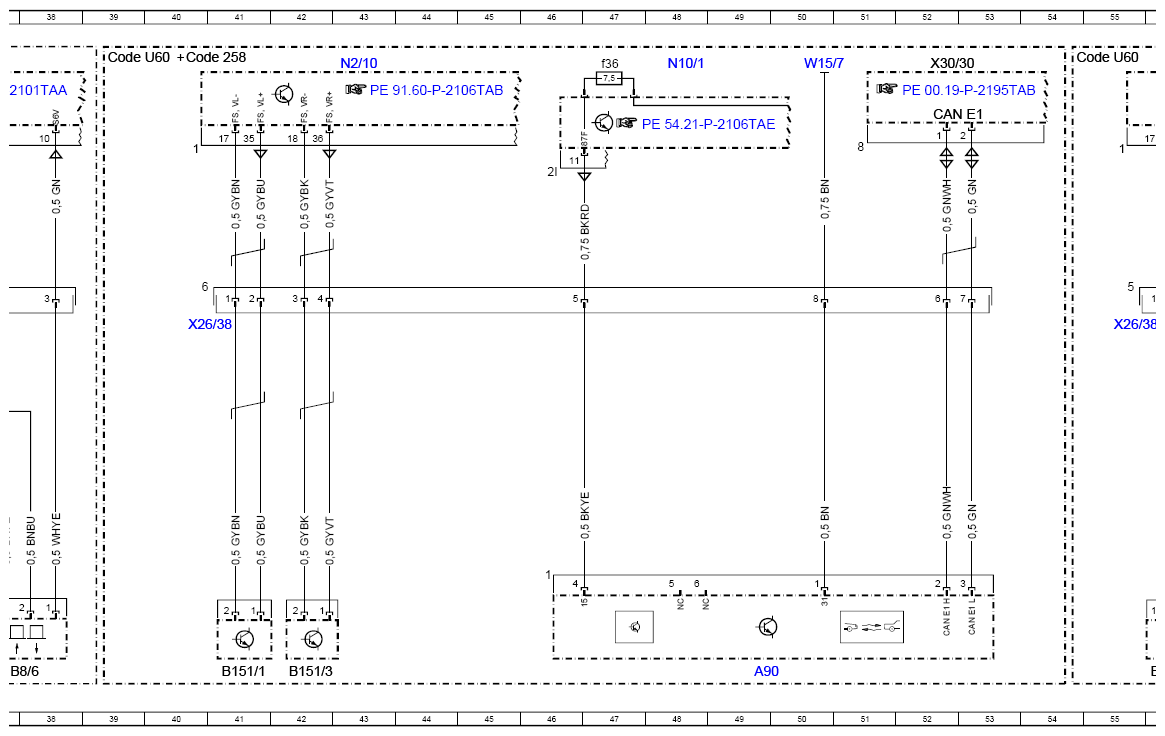

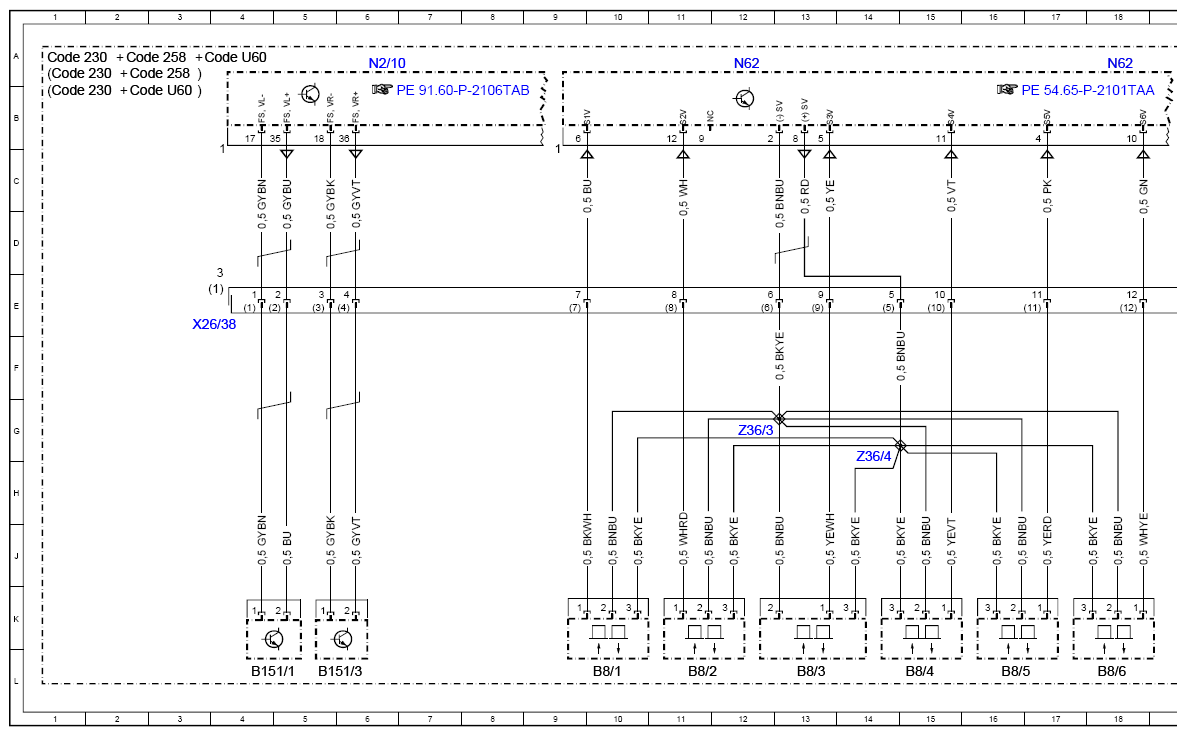

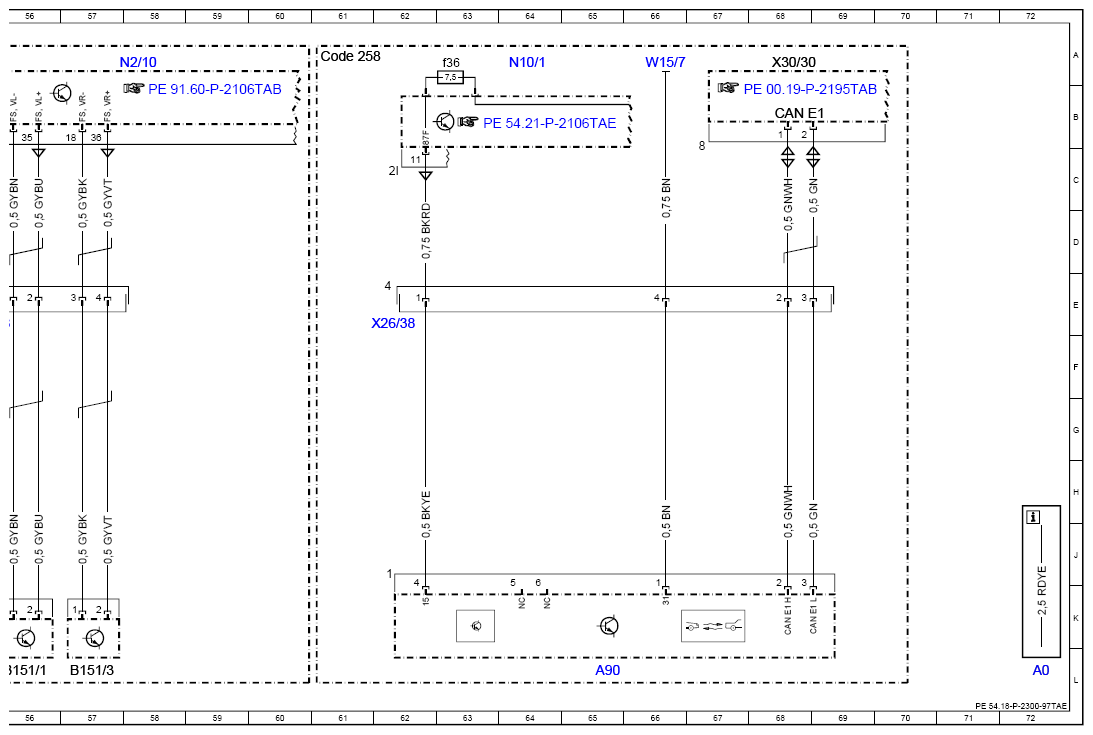

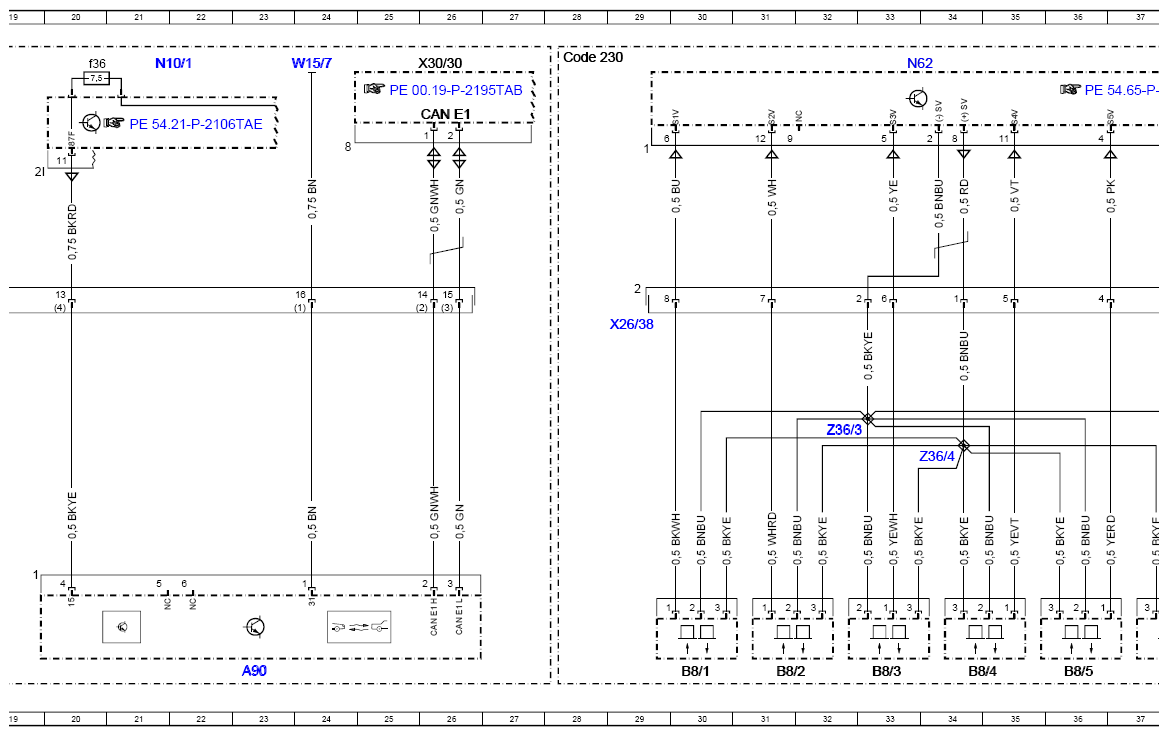

Electrical connection X26/38
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 23L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 49L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 65L |
| B151/1 | Left front bumper pedestrian protection sensor | 4L |
| B151/1 | Left front bumper pedestrian protection sensor | 41L |
| B151/1 | Left front bumper pedestrian protection sensor | 56L |
| B151/3 | Right front bumper pedestrian protection sensor | 6L |
| B151/3 | Right front bumper pedestrian protection sensor | 42L |
| B151/3 | Right front bumper pedestrian protection sensor | 57L |
| B8/1 | Outer left front parking system distance sensor | 10L |
| B8/1 | Outer left front parking system distance sensor | 30L |
| B8/2 | Center left front parking system distance sensor | 11L |
| B8/2 | Center left front parking system distance sensor | 31L |
| B8/3 | Inner left front parking system distance sensor | 13L |
| B8/3 | Inner left front parking system distance sensor | 33L |
| B8/4 | Inner right front parking system distance sensor | 15L |
| B8/4 | Inner right front parking system distance sensor | 34L |
| B8/5 | Center right front parking system distance sensor | 16L |
| B8/5 | Center right front parking system distance sensor | 36L |
| B8/6 | Outer right front parking system distance sensor | 18L |
| B8/6 | Outer right front parking system distance sensor | 37L |
| CAN E1 | Chassis CAN 1 | 26B |
| CAN E1 | Chassis CAN 1 | 52B |
| CAN E1 | Chassis CAN 1 | 68B |
| Code 230 | Exclusive parking assist | 1A |
| Code 230 | Exclusive parking assist | 1B |
| Code 230 | Exclusive parking assist | 1A |
| Code 230 | Exclusive parking assist | 28A |
| Code 258 | COLLISION PREVENTION ASSIST | 2A |
| Code 258 | COLLISION PREVENTION ASSIST | 2A |
| Code 258 | COLLISION PREVENTION ASSIST | 40A |
| Code 258 | COLLISION PREVENTION ASSIST | 61A |
| Code U60 | Pedestrian protection | 2B |
| Code U60 | Pedestrian protection | 3A |
| Code U60 | Pedestrian protection | 39A |
| Code U60 | Pedestrian protection | 54A |
| N10/1 | Front SAM control unit with fuse and relay module | 21A |
| N10/1 | Front SAM control unit with fuse and relay module | 48A |
| N10/1 | Front SAM control unit with fuse and relay module | 64A |
| N10/1f36 | Fuse 36 | 20A |
| N10/1f36 | Fuse 36 | 47A |
| N10/1f36 | Fuse 36 | 63A |
| N2/10 | Supplemental restraint system control unit | 6A |
| N2/10 | Supplemental restraint system control unit | 43A |
| N2/10 | Supplemental restraint system control unit | 58A |
| N62 | Parking system control unit | 12A |
| N62 | Parking system control unit | 18A |
| N62 | Parking system control unit | 33A |
| W15/7 | Right front footwell ground point | 24A |
| W15/7 | Right front footwell ground point | 50A |
| W15/7 | Right front footwell ground point | 66A |
| X26/38 | Front bumper and frame wiring harness electrical connector | 4E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 29E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 41E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 55E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 62E |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | |
| X30/74 | Chassis CAN 1 (CAN E1) potential distributor electrical connector | |
| Z36/3 | Front parking system sensors ground line connector sleeve | 12G |
| Z36/3 | Front parking system sensors ground line connector sleeve | 32G |
| Z36/4 | Front parking system sensors positive line connector sleeve | 14G |
| Z36/4 | Front parking system sensors positive line connector sleeve | 34G |
