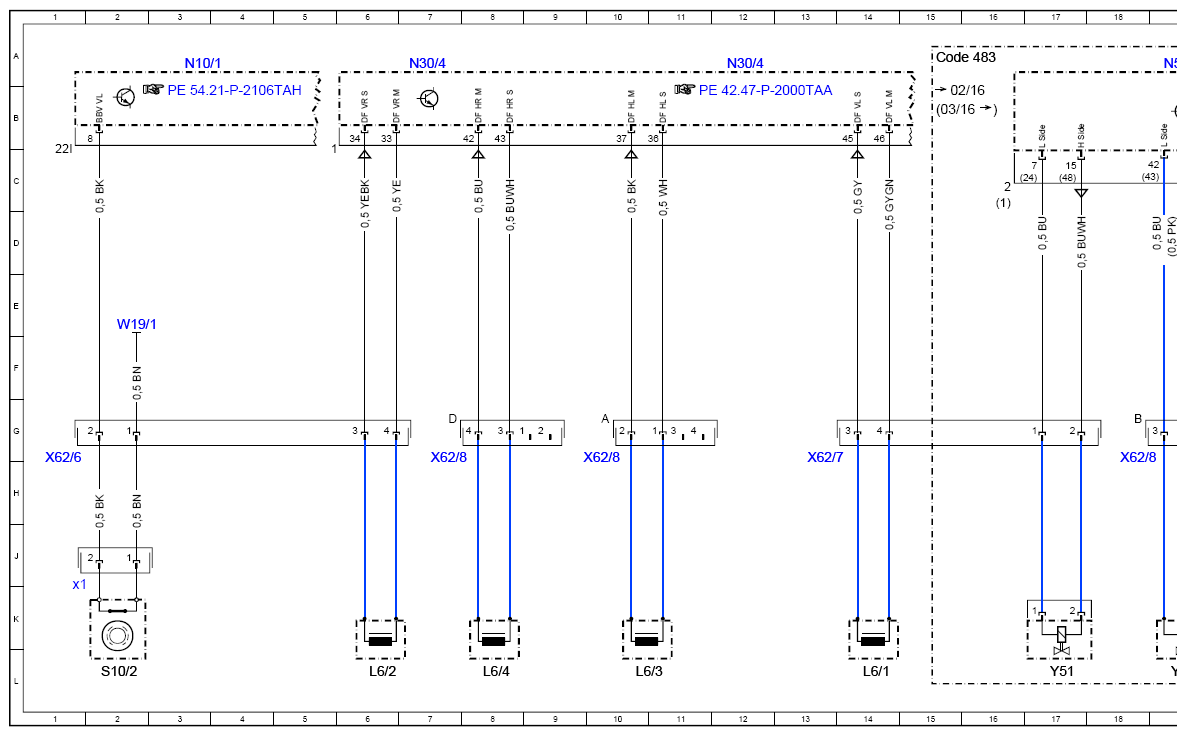

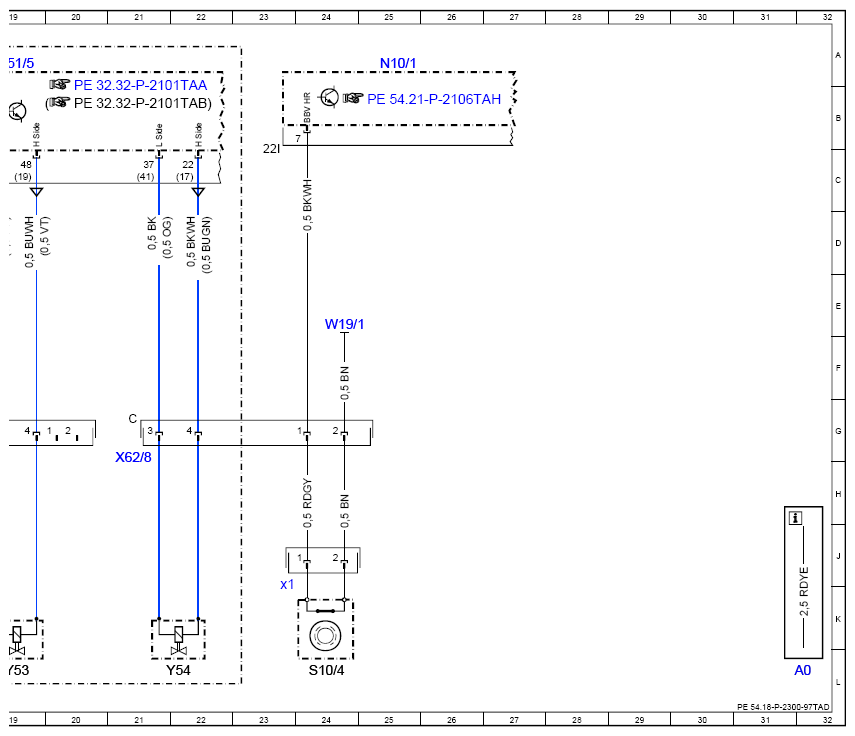

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97TAD
Model 172.4
Electrical connections X62/6, X62/7, X62/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| Code 483 | Vehicle dynamics package | 15A |
| L6/1 | Left front axle RPM sensor | 14L |
| L6/2 | Right front axle RPM sensor | 6L |
| L6/3 | Left rear axle RPM sensor | 10L |
| L6/4 | Right rear axle RPM sensor | 8L |
| N10/1 | Front SAM control unit with fuse and relay module | 3A |
| N10/1 | Front SAM control unit with fuse and relay module | 25A |
| N30/4 | Electronic Stability Program control unit | 7A |
| N30/4 | Electronic Stability Program control unit | 12A |
| N51/5 | Adaptive damping system control unit | 19A |
| S10/2 | Right front brake wear sensor | 2L |
| S10/2x1 | Right front brake wear sensor electrical connector | 1K |
| S10/4 | Right rear brake wear sensor | 24L |
| S10/4x1 | Right rear brake wear sensor electrical connector | 23K |
| W19/1 | Right front seat crossmember ground point | 2E |
| W19/1 | Right front seat crossmember ground point | 24E |
| X62/6 | Front axle electrical connector, right distributor | 1H |
| X62/7 | Front axle electrical connector, left distributor | 13H |
| X62/8 | Rear axle electrical distributor electrical connector | 7H |
| X62/8 | Rear axle electrical distributor electrical connector | 10H |
| X62/8 | Rear axle electrical distributor electrical connector | 18H |
| X62/8 | Rear axle electrical distributor electrical connector | 21H |
| Y51 | Left front axle damping valve unit | 17L |
| Y53 | Left rear axle damping valve unit | 19L |
| Y54 | Right rear axle damping valve unit | 22L |
