(Connector Separation Point Wiring Diagram - PE54.18-P-2300-97TAC)
Model 172.4 up to 2/29/16

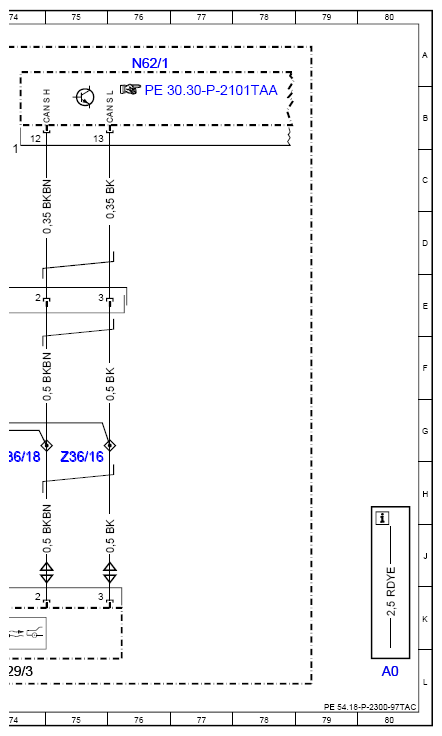

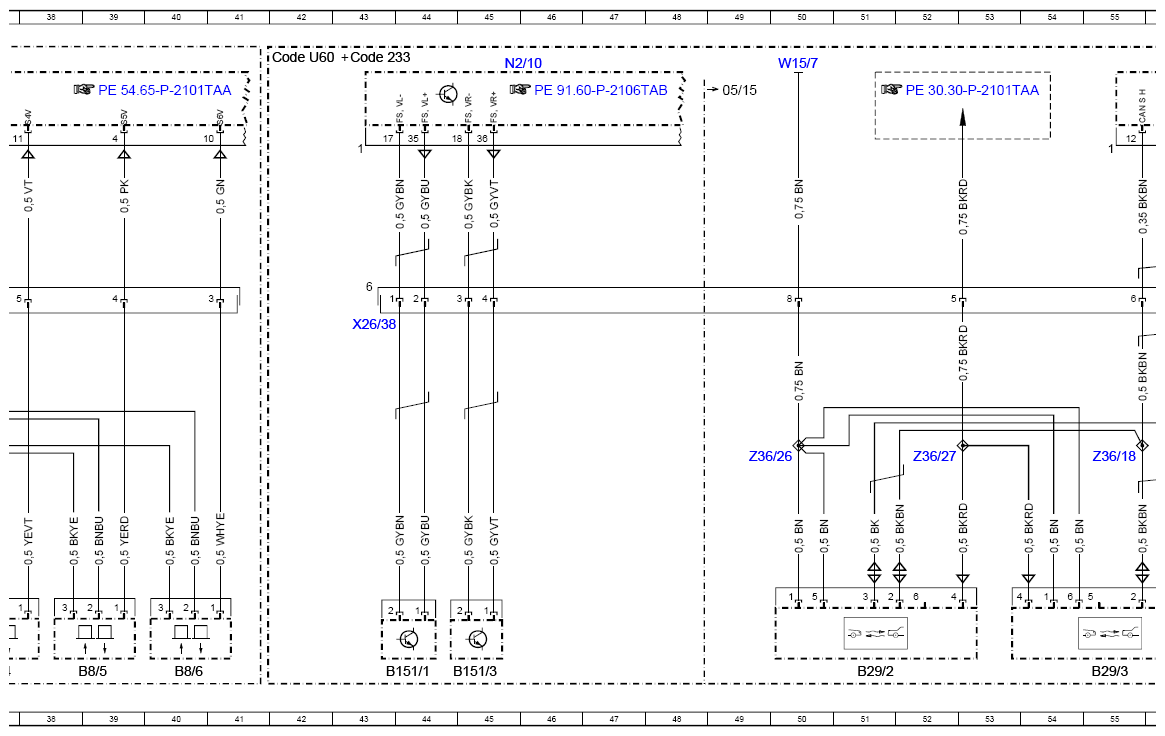

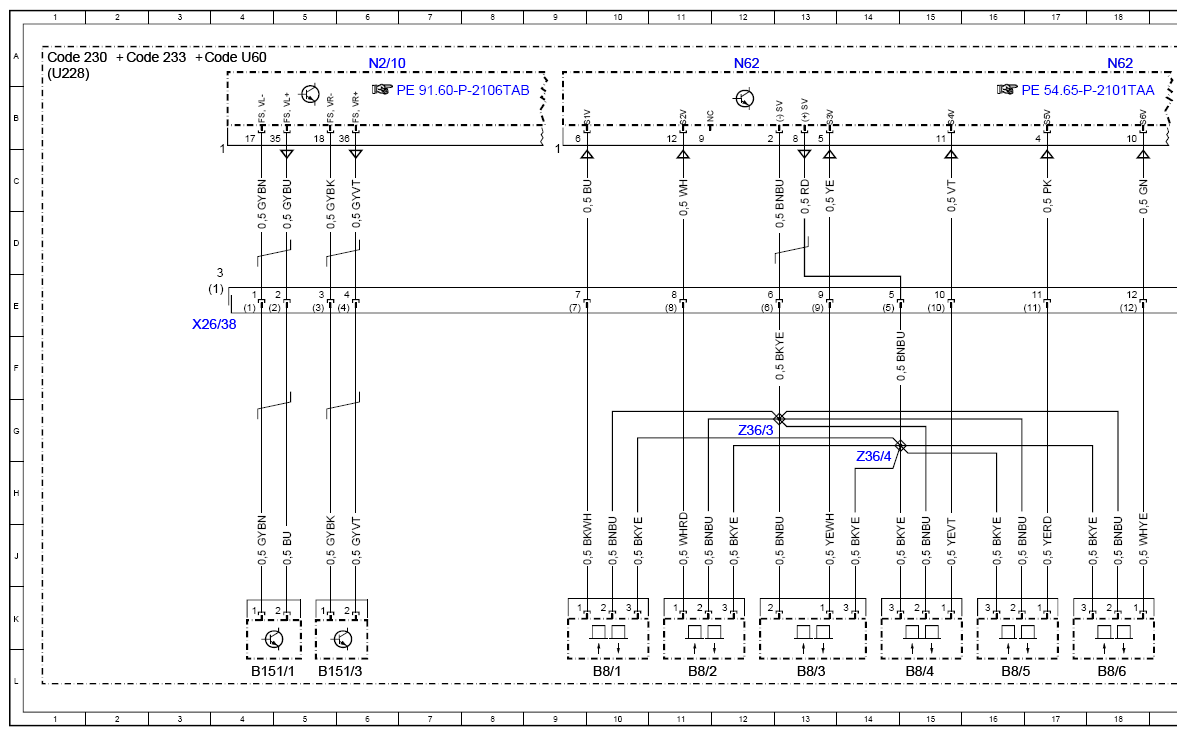

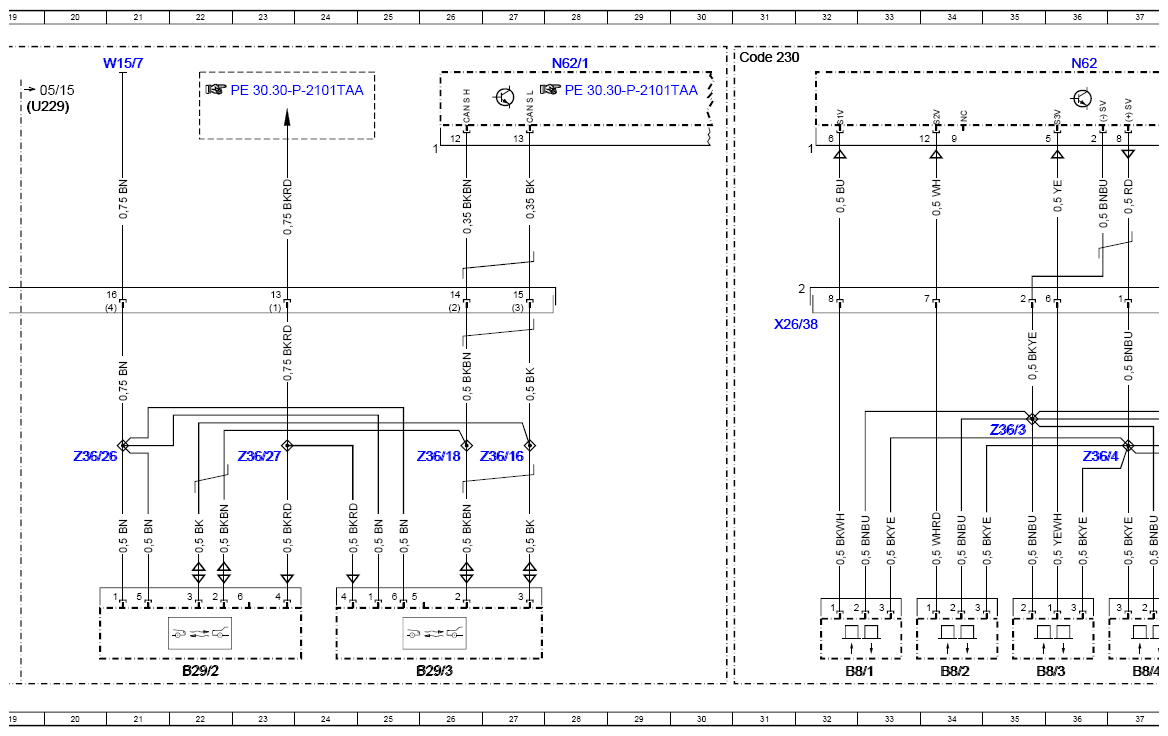

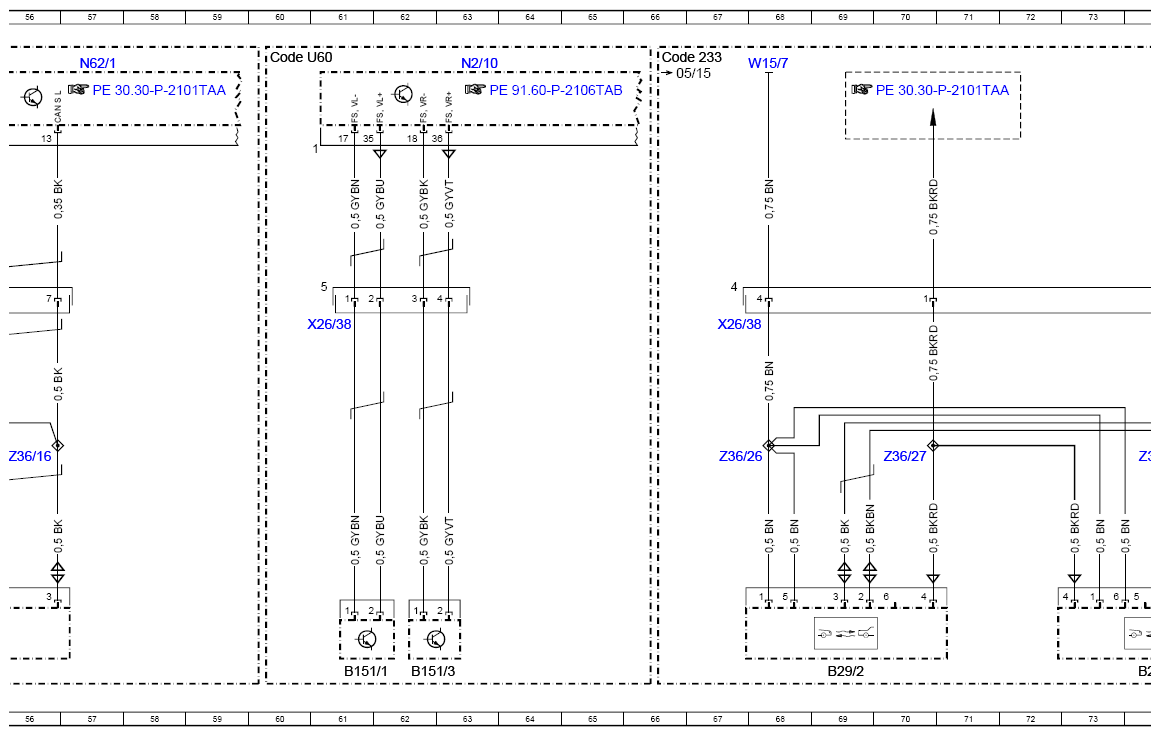

Electrical connection X26/38
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| B151/1 | Left front bumper pedestrian protection sensor | 4L |
| B151/1 | Left front bumper pedestrian protection sensor | 44L |
| B151/1 | Left front bumper pedestrian protection sensor | 61L |
| B151/3 | Right front bumper pedestrian protection sensor | 6L |
| B151/3 | Right front bumper pedestrian protection sensor | 45L |
| B151/3 | Right front bumper pedestrian protection sensor | 62L |
| B29/2 | DISTRONIC sensor (DTR)/left front bumper | 22L |
| B29/2 | DISTRONIC sensor (DTR)/left front bumper | 51L |
| B29/2 | DISTRONIC sensor (DTR)/left front bumper | 69L |
| B29/3 | DISTRONIC sensor (DTR)/right front bumper | 26L |
| B29/3 | DISTRONIC sensor (DTR)/right front bumper | 55L |
| B29/3 | DISTRONIC sensor (DTR)/right front bumper | 74L |
| B8/1 | Outer left front parking system distance sensor | 10L |
| B8/1 | Outer left front parking system distance sensor | 32L |
| B8/2 | Center left front parking system distance sensor | 11L |
| B8/2 | Center left front parking system distance sensor | 34L |
| B8/3 | Inner left front parking system distance sensor | 13L |
| B8/3 | Inner left front parking system distance sensor | 35L |
| B8/4 | Inner right front parking system distance sensor | 15L |
| B8/4 | Inner right front parking system distance sensor | 37L |
| B8/5 | Center right front parking system distance sensor | 16L |
| B8/5 | Center right front parking system distance sensor | 39L |
| B8/6 | Outer right front parking system distance sensor | 18L |
| B8/6 | Outer right front parking system distance sensor | 40L |
| Code 230 | Exclusive parking assist | 1A |
| Code 230 | Exclusive parking assist | 31A |
| Code 233 | DISTRONIC PLUS | 2A |
| Code 233 | DISTRONIC PLUS | 43A |
| Code 233 | DISTRONIC PLUS | 66A |
| Code U60 | Pedestrian protection | 3A |
| Code U60 | Pedestrian protection | 42A |
| Code U60 | Pedestrian protection | 60A |
| N2/10 | Supplemental restraint system control unit | 6A |
| N2/10 | Supplemental restraint system control unit | 45A |
| N2/10 | Supplemental restraint system control unit | 63A |
| N62 | Parking system control unit | 12A |
| N62 | Parking system control unit | 18A |
| N62 | Parking system control unit | 36A |
| N62/1 | Radar sensors control unit | 28A |
| N62/1 | Radar sensors control unit | 57A |
| N62/1 | Radar sensors control unit | 76A |
| U228 | Valid for pedestrian protection without short range radar and active Park Assist | 1A |
| U229 | Valid for short range radar with active Park Assist without pedestrian protection | 19B |
| W15/7 | Right front footwell ground point | 21A |
| W15/7 | Right front footwell ground point | 50A |
| W15/7 | Right front footwell ground point | 68A |
| X26/38 | Front bumper and frame wiring harness electrical connector | 4E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 32E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 43E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 61E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 67E |
| Z36/16 | Front sensor CAN connector sleeve | 27G |
| Z36/16 | Front sensor CAN connector sleeve | 56G |
| Z36/16 | Front sensor CAN connector sleeve | 75G |
| Z36/18 | Front sensor CAN connector sleeve | 26G |
| Z36/18 | Front sensor CAN connector sleeve | 55G |
| Z36/18 | Front sensor CAN connector sleeve | 74G |
| Z36/26 | Front DISTRONIC PLUS sensor ground connector sleeve | 20G |
| Z36/26 | Front DISTRONIC PLUS sensor ground connector sleeve | 50G |
| Z36/26 | Front DISTRONIC PLUS sensor ground connector sleeve | 67G |
| Z36/27 | DISTRONIC front voltage supply connector sleeve | 23G |
| Z36/27 | DISTRONIC front voltage supply connector sleeve | 52G |
| Z36/27 | DISTRONIC front voltage supply connector sleeve | 70G |
| Z36/3 | Front parking system sensors ground line connector sleeve | 12G |
| Z36/3 | Front parking system sensors ground line connector sleeve | 35G |
| Z36/4 | Front parking system sensors positive line connector sleeve | 14G |
| Z36/4 | Front parking system sensors positive line connector sleeve | 36G |
