Fuse And Relay Box, As-Built Configuration - GF54.15-P-0800RD
Model 172.4

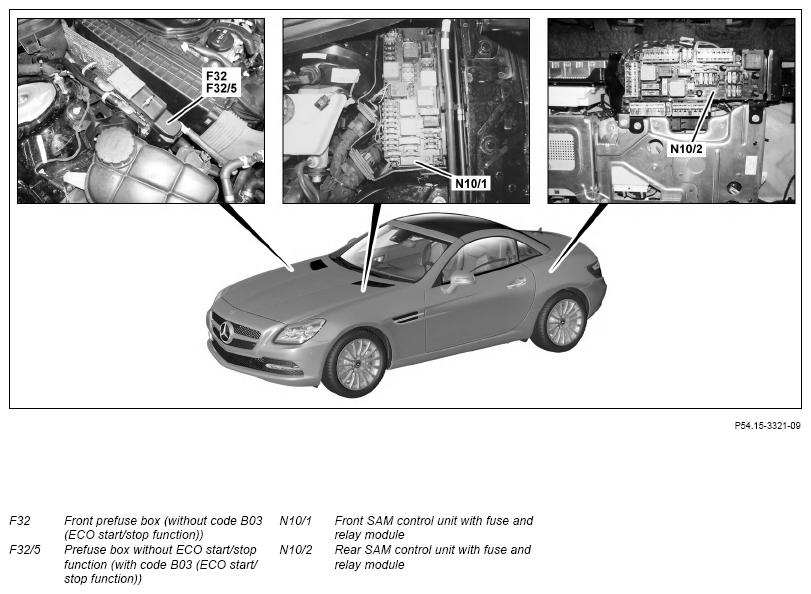

Location in engine compartment and in trunk, shown on model 172.4 up to 29.02.2016

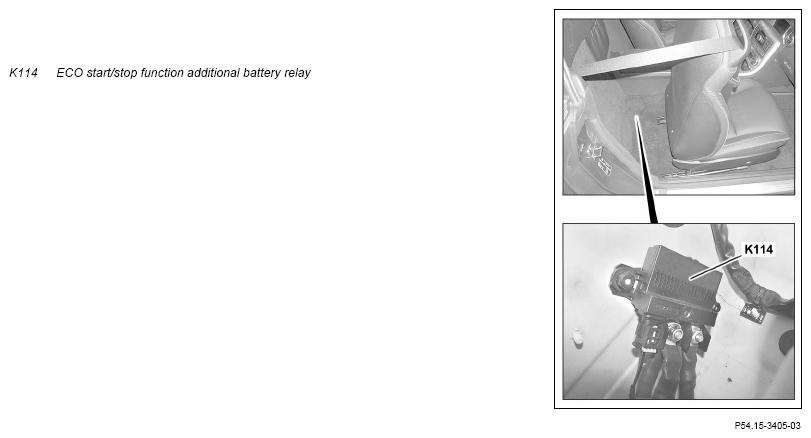

Location in vehicle interior (with code B03 (ECO start/stop function))

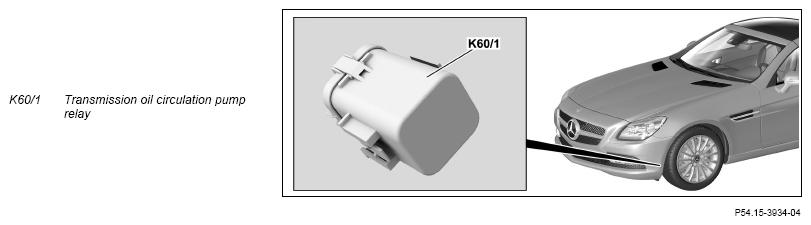

Location in wheel arch (for transmission 722 and engine 651), shown on left-hand drive vehicle
Model 172.4 with engine 651.9 with transmission 722.9 The transmission oil circulation pump relay on the left-hand drive vehicle is installed in the left wheel arch and on the right-hand drive vehicle in the right wheel arch in each instance behind the cover.
| Fuse assignment of fuse and relay box in left engine compartment | Model 172.4 as of model year 2017 N10/1 | GF54.15-P-1256-03RDM | |
| Model 172.4 up to model year 2017 N10/1 | GF54.15-P-1256-03RDA | ||
| Fuse assignment of fuse and relay box in trunk | Model 172.4 as of model year 2017 N10/2 | GF54.15-P-1256-06RDM | |
| Model 172.4 up to model year 2017 N10/2 | GF54.15-P-1256-06RD | ||
| Fuse assignment of front pre-fuse box | Model 172.4 as of model year 2017 F32 | GF54.15-P-1256-07RDM | |
| Model 172.4 up to model year 2017 with code B03 (ECO start/stop function) F32 | GF54.15-P-1256-07RDA | ||
| Model 172.4 up to model year 2017 except code B03 (ECO start/stop function) F32/5 | GF54.15-P-1256-07RD | ||
| Relay assignment of fuse and relay box in left side of engine compartment | N10/1 | GF54.15-P-1257-03RD | |
| Relay assignment of fuse and relay box in trunk | N10/2 | GF54.15-P-1257-04RD |
